Cable entry KDS
Kabeldurchführung KDS · Cable entry KDS
Product series
22
70 articles
Sealing elements small
Dichtelemente klein
47 articles
Sealing elements large
Dichtelemente groß
32 articles
Sealing elements small RAIL
Dichtelemente klein RAIL
23 articles
Sealing elements large RAIL
Dichtelemente groß RAIL
18 articles
Sealing elements Ribbon cable
Dichtelemente Flachbandleiter
16 articles
Screw frame Flat cable
Schraubrahmen Flachbandleiter
13 articles
Inverted screw frame
Schraubrahmen invers
8 articles
Sealing elements DES
Dichtelemente DES
8 articles
Divided inverted screw frames
Geteilte Schraubrahmen invers
8 articles
Round frame
Rundrahmen
8 articles
Screw frame
Schraubrahmen
7 articles
Brush frames
Bürstenrahmen
6 articles
Sealing element adapter
Dichtelementadapter
6 articles
Split locknut
Geteilte Gegenmutter
6 articles
Split cable glands
Geteilte Kabelverschraubungen
6 articles
Locking frame
Verrieglungsrahmen
5 articles
Sealing elements KDS-DE-Z2K
Dichtelemente KDS-DE-Z2K
4 articles
Inlays
Inlays
4 articles
Angled screw frame
Schraubrahmen abgewinkelt
4 articles
Compact screw frame
Schraubrahmen kompakt
2 articles
Flange plates
Flanschplatten
1 articles
Service boxes
Service-Boxen
All types
298 / 298Featured models from each series. Key articles are also marked ★ in the table below.
29000.4
KDS-BS 6/10 BK
Colour: Black · Width: 70 mm · Schutzart: IP10
29001.4
KDS-BS 8/16 BK
Colour: Black · Width: 70 mm · Schutzart: IP10
28520.4
KDS-DE/B BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28521.4
KDS-DE 1,5-2 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28562.6
KDS-DE 1,5-2 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
28530.4
KDS-DE 10-11 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28531.4
KDS-DE 11-12 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28532.4
KDS-DE 12-13 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28533.4
KDS-DE 13-14 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28522.4
KDS-DE 2-3 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28555.4
KDS-DE 2X4-5 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28556.4
KDS-DE 2X5-6 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28523.4
KDS-DE 3-4 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28524.4
KDS-DE 4-5 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28557.4
KDS-DE 4X2-3 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28558.4
KDS-DE 4X3-4 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28525.4
KDS-DE 5-6 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28526.4
KDS-DE 6-7 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28527.4
KDS-DE 7-8 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28528.4
KDS-DE 8-9 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28529.4
KDS-DE 9-10 BK
Colour: Black · Width: 19.5 mm · Schutzart: IP66
28713.6
KDS-DE-FB1/A GR
Colour: Grey · Width: 19.9 mm · Schutzart: IP66
29120.6
KDS-DE-RAIL/B GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29121.6
KDS-DE-RAIL 1,5 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29123.6
KDS-DE-RAIL 2 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29124.6
KDS-DE-RAIL 2-3 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29125.6
KDS-DE-RAIL 3 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29126.6
KDS-DE-RAIL 3-4 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29127.6
KDS-DE-RAIL 4-5 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29128.6
KDS-DE-RAIL 5-6 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
29129.6
KDS-DE-RAIL 6-7 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66

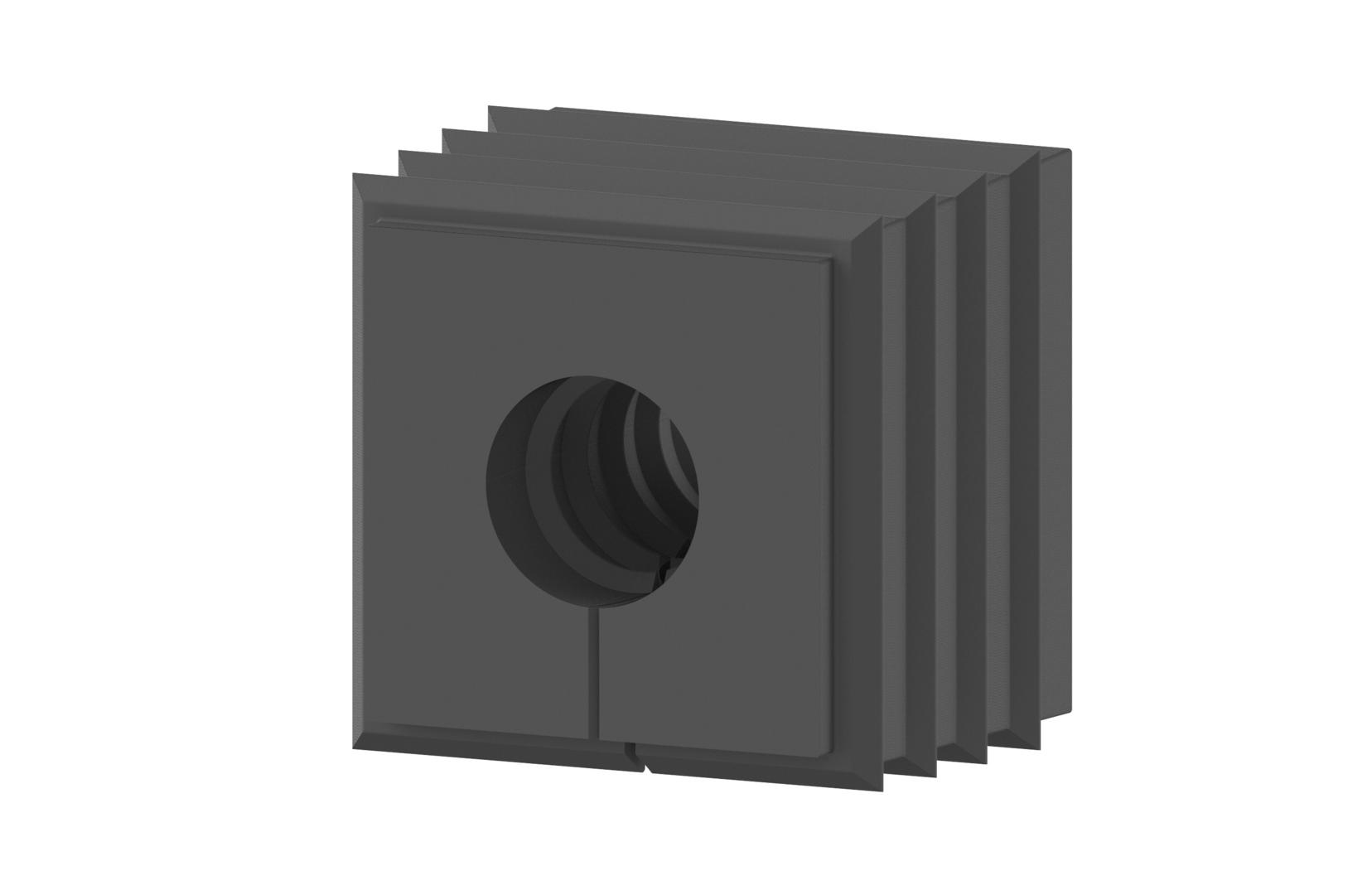

29130.6
KDS-DE-RAIL 7-8 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
28980.6
KDS-DE-Z2K 1,0-2,6 GR
Colour: Grey · Width: 19.5 mm · Schutzart: IP66
28534.4
KDS-DEG/B BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28535.4
KDS-DEG 14-15 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28536.4
KDS-DEG 15-16 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28537.4
KDS-DEG 16-17 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28538.4
KDS-DEG 17-18 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28539.4
KDS-DEG 18-19 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28540.4
KDS-DEG 19-20 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28541.4
KDS-DEG 20-21 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28542.4
KDS-DEG 21-22 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28543.4
KDS-DEG 22-23 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28544.4
KDS-DEG 23-24 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28545.4
KDS-DEG 24-25 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28546.4
KDS-DEG 25-26 BK
Colour: Black · Width: 42 mm · Schutzart: IP66
28547.4
KDS-DEG 26-27 BK
Colour: Black · Width: 42 mm · Schutzart: IP66

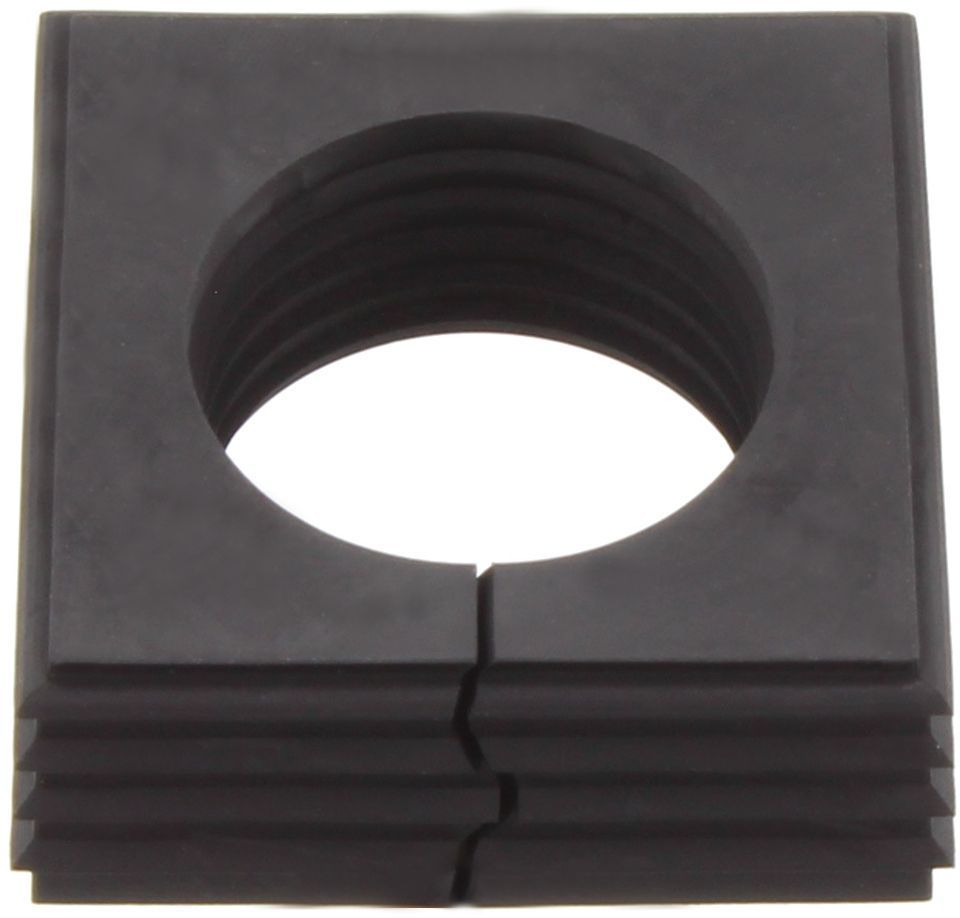

28548.4
KDS-DEG 27-28 BK
Colour: Black · Width: 42 mm · Schutzart: IP66

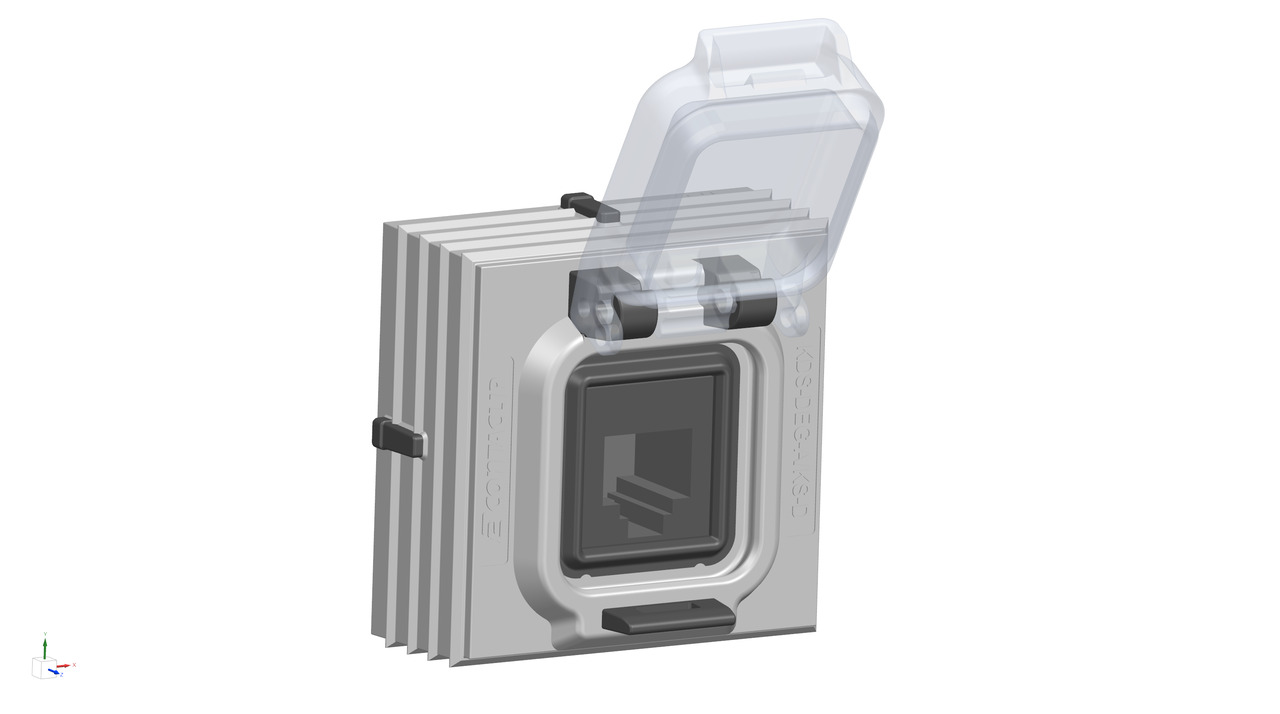

29077.6
KDS-DEG-A/KS-D
Width: 45 mm · Schutzart: IP65

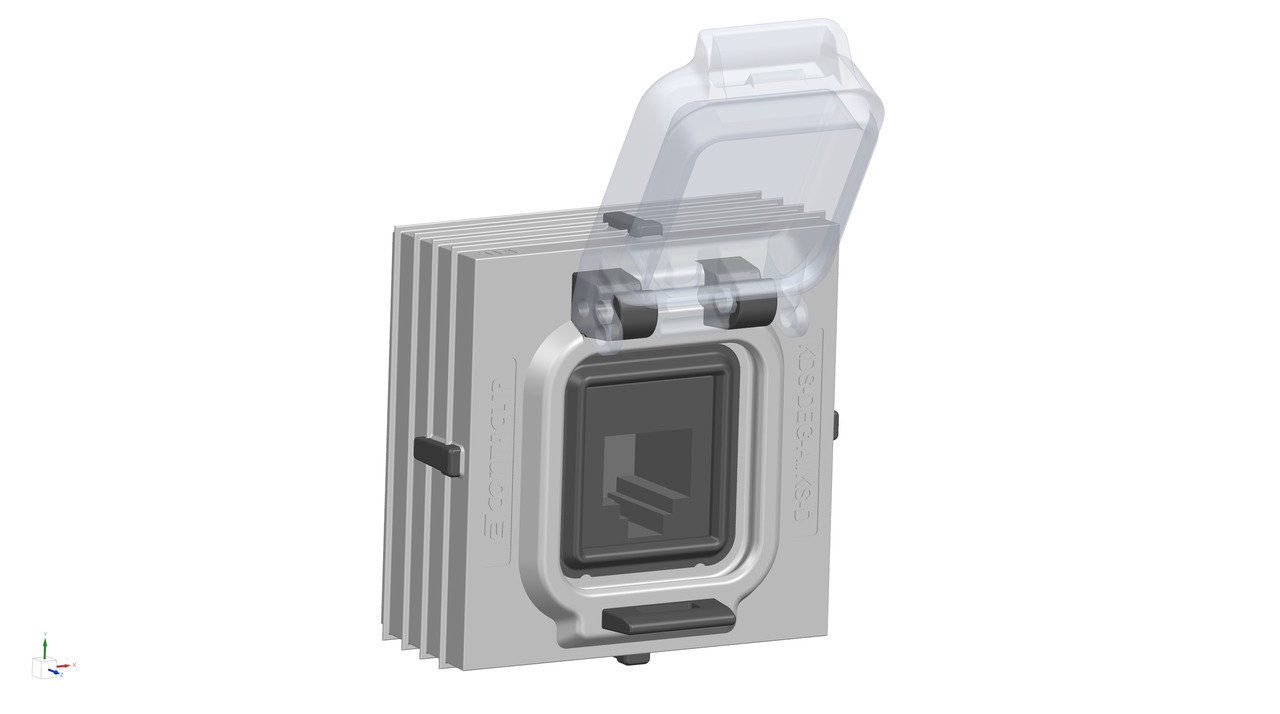

29078.6
KDS-DEG-AI/KS-D
Width: 45 mm · Schutzart: IP65

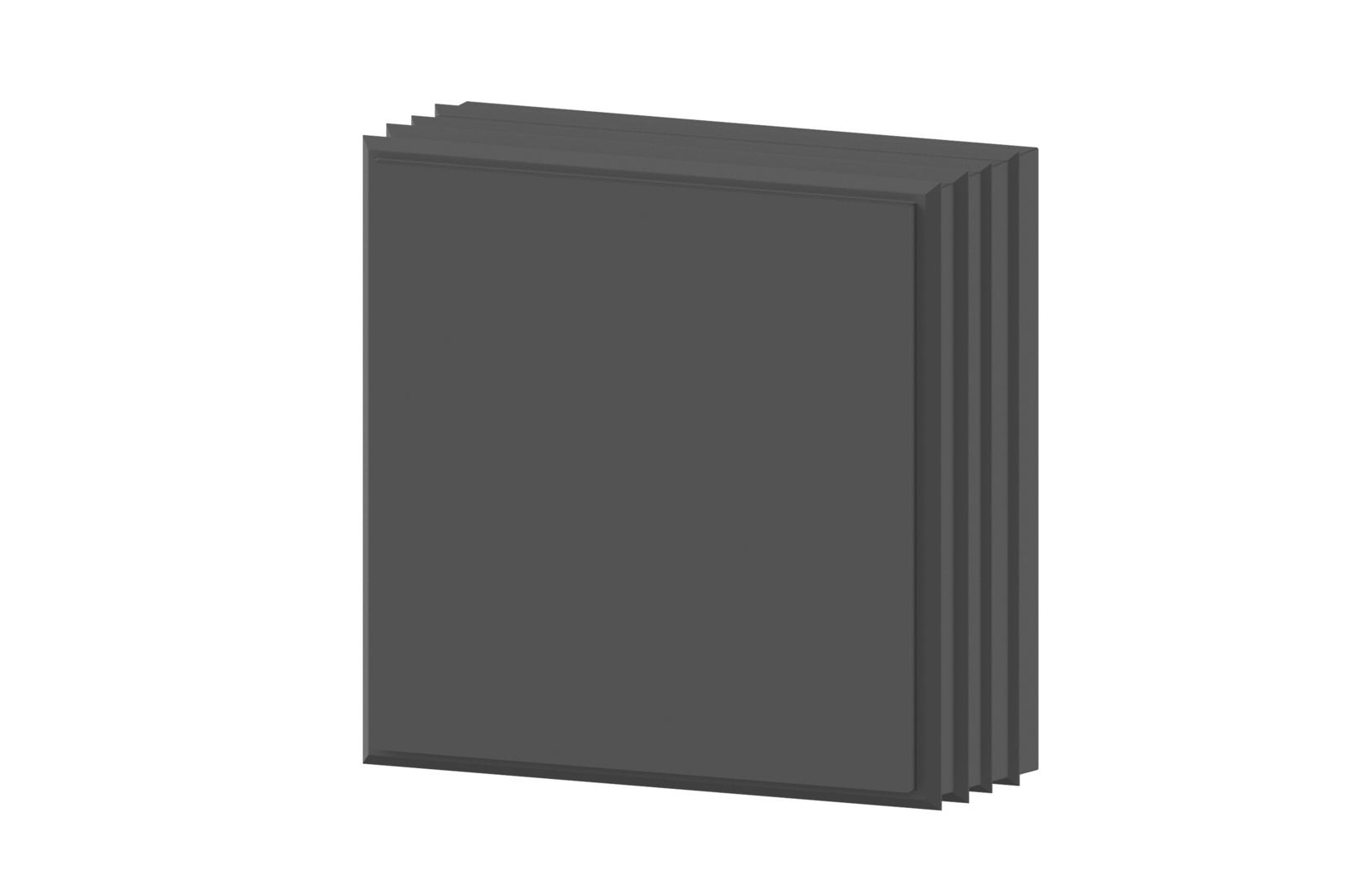

29153.6
KDS-DEG-RAIL/B GR
Colour: Grey · Width: 42 mm · Schutzart: IP66

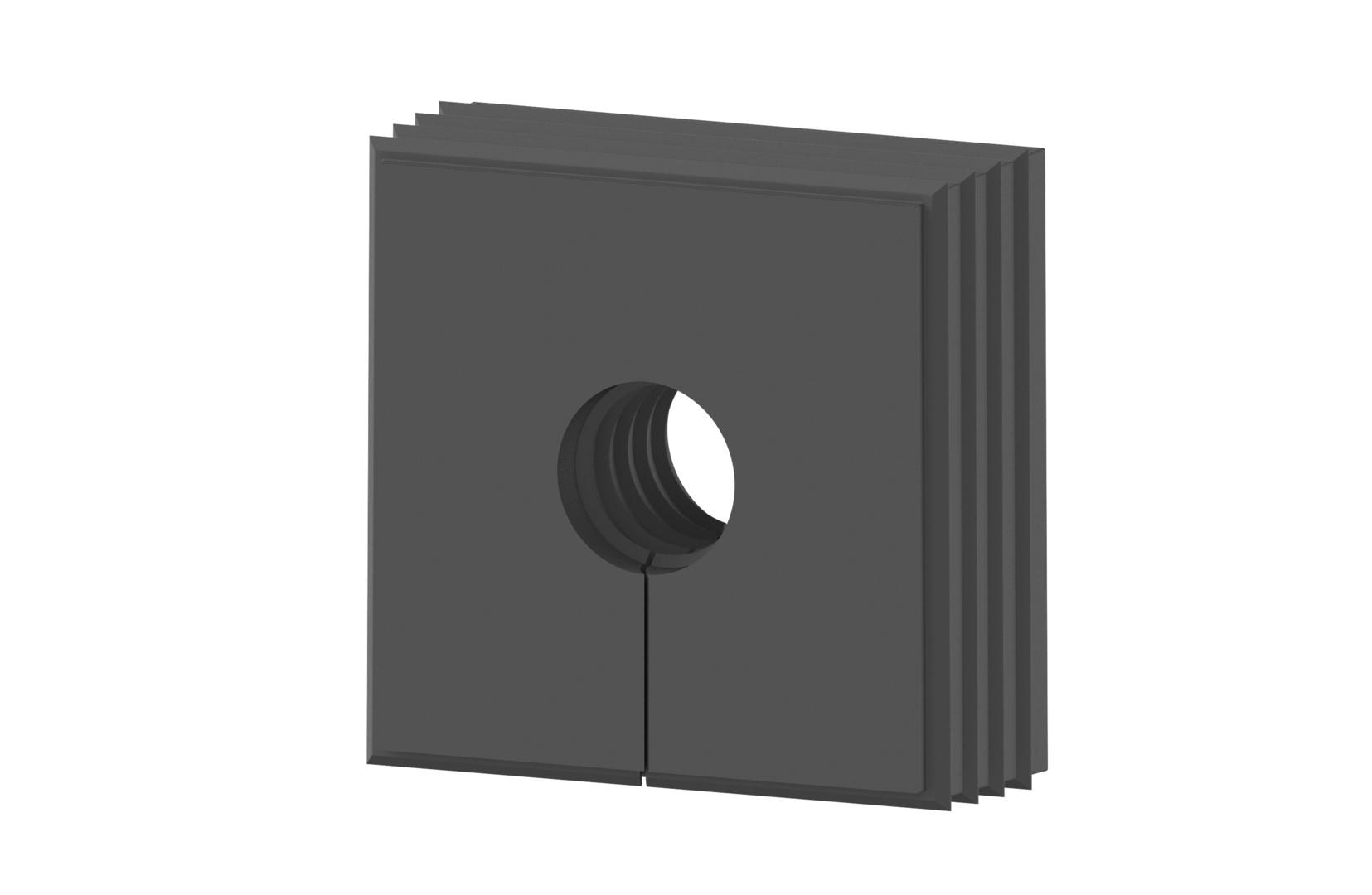

29154.6
KDS-DEG-RAIL 12-13 GR
Colour: Grey · Width: 42 mm · Schutzart: IP66

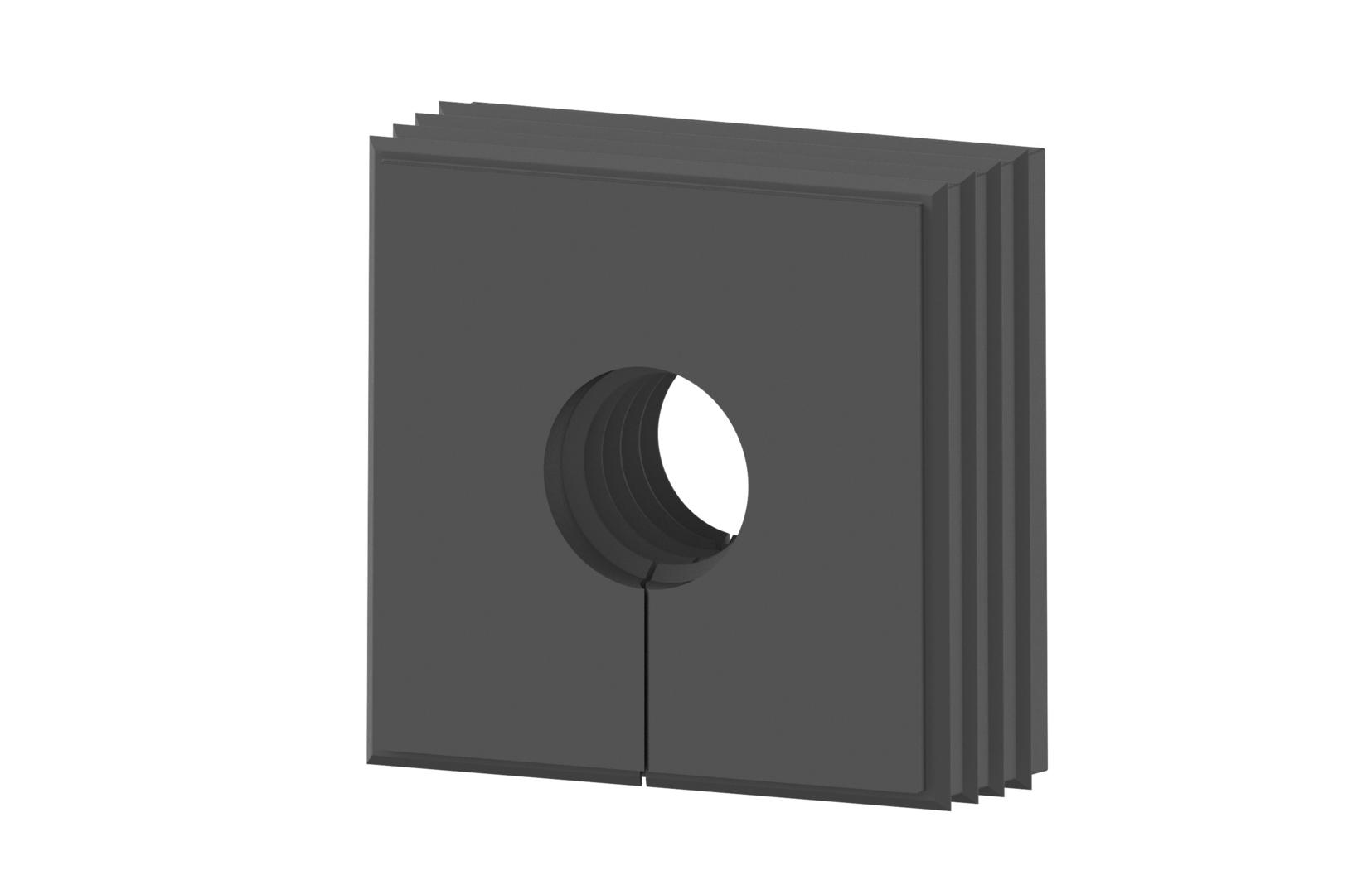

29155.6
KDS-DEG-RAIL 14-15 GR
Colour: Grey · Width: 42 mm · Schutzart: IP66
29156.6
KDS-DEG-RAIL 15-16 GR
Colour: Grey · Width: 42 mm · Schutzart: IP66
29157.6
KDS-DEG-RAIL 16-17 GR
Colour: Grey · Width: 42 mm · Schutzart: IP66
29158.6
KDS-DEG-RAIL 17-18 GR
Colour: Grey · Width: 42 mm · Schutzart: IP66

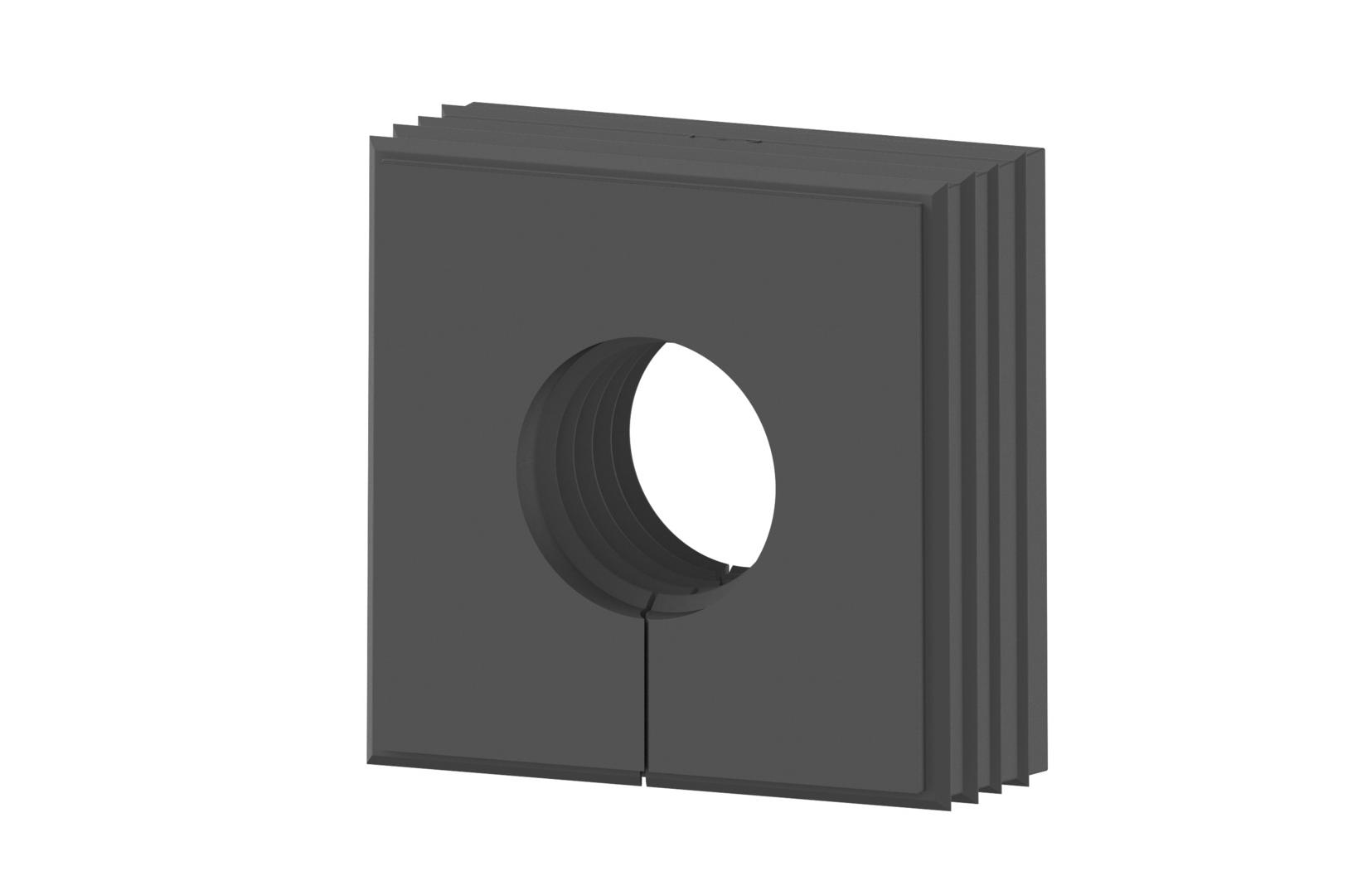

29159.6
KDS-DEG-RAIL 18-19 GR
Colour: Grey · Width: 42 mm · Schutzart: IP66
28800.6
KDS-DES 2X10,5 GR
Colour: Grey · Width: 20.3 mm · Schutzart: IP54
28802.6
KDS-DES 3X8,5 GR
Colour: Grey · Width: 20.3 mm · Schutzart: IP54
28801.6
KDS-DES 3X9,5 GR
Colour: Grey · Width: 20.3 mm · Schutzart: IP54
Specification table
298| Article no. | Type | Colour | Width | Schutzart | Length |
|---|---|---|---|---|---|
| 28500.4 | KDS-SR 6/10 BK | Black | 70 mm | IP66 | 106 mm |
| 28501.4 | KDS-IVR 6/10 BK | Black | 70 mm | – | 105 mm |
| 28502.4 | KDS-SR 8/16 BK | Black | 70 mm | IP66 | 126 mm |
| 28503.4 | KDS-IVR 8/16 BK | Black | 70 mm | – | 125 mm |
| 28504.4 | KDS-SR 10/24 BK | Black | 70 mm | IP66 | 153 mm |
| 28505.4 | KDS-IVR 10/24 BK | Black | 70 mm | – | 152 mm |
| 28506.4 | KDS-SR 1-4 BK | Black | 70 mm | IP66 | 81 mm |
| 28507.4 | KDS-IVR 1-4 BK | Black | 70 mm | – | 80 mm |
| 28516.4 | KDS-Inlay 1 BK | Black | 45 mm | IP66 | 5 mm |
| 28517.4 | KDS-Inlay 2 BK | Black | 45 mm | IP66 | 25 mm |
| 28518.4 | KDS-Inlay 4 BK | Black | 45 mm | IP66 | 45 mm |
| 28519.4 | KDS-Inlay 6 BK | Black | 45 mm | IP66 | 70 mm |
| 28520.4 | KDS-DE/B BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28521.4 | KDS-DE 1,5-2 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28522.4 | KDS-DE 2-3 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28523.4 | KDS-DE 3-4 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28524.4 | KDS-DE 4-5 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28525.4 | KDS-DE 5-6 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28526.4 | KDS-DE 6-7 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28527.4 | KDS-DE 7-8 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28528.4 | KDS-DE 8-9 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28529.4 | KDS-DE 9-10 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28530.4 | KDS-DE 10-11 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28531.4 | KDS-DE 11-12 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28532.4 | KDS-DE 12-13 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28533.4 | KDS-DE 13-14 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28534.4 | KDS-DEG/B BK | Black | 42 mm | IP66 | 42 mm |
| 28535.4 | KDS-DEG 14-15 BK | Black | 42 mm | IP66 | 42 mm |
| 28536.4 | KDS-DEG 15-16 BK | Black | 42 mm | IP66 | 42 mm |
| 28537.4 | KDS-DEG 16-17 BK | Black | 42 mm | IP66 | 42 mm |
| 28538.4 | KDS-DEG 17-18 BK | Black | 42 mm | IP66 | 42 mm |
| 28539.4 | KDS-DEG 18-19 BK | Black | 42 mm | IP66 | 42 mm |
| 28540.4 | KDS-DEG 19-20 BK | Black | 42 mm | IP66 | 42 mm |
| 28541.4 | KDS-DEG 20-21 BK | Black | 42 mm | IP66 | 42 mm |
| 28542.4 | KDS-DEG 21-22 BK | Black | 42 mm | IP66 | 42 mm |
| 28543.4 | KDS-DEG 22-23 BK | Black | 42 mm | IP66 | 42 mm |
| 28544.4 | KDS-DEG 23-24 BK | Black | 42 mm | IP66 | 42 mm |
| 28545.4 | KDS-DEG 24-25 BK | Black | 42 mm | IP66 | 42 mm |
| 28546.4 | KDS-DEG 25-26 BK | Black | 42 mm | IP66 | 42 mm |
| 28547.4 | KDS-DEG 26-27 BK | Black | 42 mm | IP66 | 42 mm |
| 28548.4 | KDS-DEG 27-28 BK | Black | 42 mm | IP66 | 42 mm |
| 28549.4 | KDS-DEG 28-29 BK | Black | 42 mm | IP66 | 42 mm |
| 28550.4 | KDS-DEG 29-30 BK | Black | 42 mm | IP66 | 42 mm |
| 28551.4 | KDS-DEG 30-31 BK | Black | 42 mm | IP66 | 42 mm |
| 28552.4 | KDS-DEG 31-32 BK | Black | 42 mm | IP66 | 42 mm |
| 28553.4 | KDS-DE/K 2-11 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28554.4 | KDS-DEG/K 7-24 BK | Black | 42 mm | IP66 | 42 mm |
| 28555.4 | KDS-DE 2X4-5 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28556.4 | KDS-DE 2X5-6 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28557.4 | KDS-DE 4X2-3 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28558.4 | KDS-DE 4X3-4 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28559.4 | KDS-DE/1XASI BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28560.4 | KDS-DE/2XASI BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28561.6 | KDS-DE/B GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28562.6 | KDS-DE 1,5-2 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28563.6 | KDS-DE 2-3 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28564.6 | KDS-DE 3-4 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28565.6 | KDS-DE 4-5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28566.6 | KDS-DE 5-6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28567.6 | KDS-DE 6-7 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28568.6 | KDS-DE 7-8 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28569.6 | KDS-DE 8-9 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28570.6 | KDS-DE 9-10 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28571.6 | KDS-DE 10-11 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28572.6 | KDS-DE 11-12 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28573.6 | KDS-DE 12-13 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28574.6 | KDS-DE 13-14 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28575.6 | KDS-DEG/B GR | Grey | 42 mm | IP66 | 42 mm |
| 28576.6 | KDS-DEG 14-15 GR | Grey | 42 mm | IP66 | 42 mm |
| 28577.6 | KDS-DEG 15-16 GR | Grey | 42 mm | IP66 | 42 mm |
| 28578.6 | KDS-DEG 16-17 GR | Grey | 42 mm | IP66 | 42 mm |
| 28579.6 | KDS-DEG 17-18 GR | Grey | 42 mm | IP66 | 42 mm |
| 28580.6 | KDS-DEG 18-19 GR | Grey | 42 mm | IP66 | 42 mm |
| 28581.6 | KDS-DEG 19-20 GR | Grey | 42 mm | IP66 | 42 mm |
| 28582.6 | KDS-DEG 20-21 GR | Grey | 42 mm | IP66 | 42 mm |
| 28583.6 | KDS-DEG 21-22 GR | Grey | 42 mm | IP66 | 42 mm |
| 28584.6 | KDS-DEG 22-23 GR | Grey | 42 mm | IP66 | 42 mm |
| 28585.6 | KDS-DEG 23-24 GR | Grey | 42 mm | IP66 | 42 mm |
| 28586.6 | KDS-DEG 24-25 GR | Grey | 42 mm | IP66 | 42 mm |
| 28587.6 | KDS-DEG 25-26 GR | Grey | 42 mm | IP66 | 42 mm |
| 28588.6 | KDS-DEG 26-27 GR | Grey | 42 mm | IP66 | 42 mm |
| 28589.6 | KDS-DEG 27-28 GR | Grey | 42 mm | IP66 | 42 mm |
| 28590.6 | KDS-DEG 28-29 GR | Grey | 42 mm | IP66 | 42 mm |
| 28591.6 | KDS-DEG 29-30 GR | Grey | 42 mm | IP66 | 42 mm |
| 28592.6 | KDS-DEG 30-31 GR | Grey | 42 mm | IP66 | 42 mm |
| 28593.6 | KDS-DEG 31-32 GR | Grey | 42 mm | IP66 | 42 mm |
| 28594.6 | KDS-DEG 32-33 GR | Grey | 42 mm | IP66 | 42 mm |
| 28595.6 | KDS-DE 2X4-5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28596.6 | KDS-DE 2X5-6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28597.6 | KDS-DE 4X2-3 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28598.6 | KDS-DE 4X3-4 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28599.6 | KDS-DE/1XASI GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28600.6 | KDS-DE/2XASI GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28601.4 | KDS-DEG 32-33 BK | Black | 42 mm | IP66 | 42 mm |
| 28602.4 | KDS-Set 1-4 BK | Black | 70 mm | IP66 | 81 mm |
| 28603.4 | KDS-Set 6/10 BK | Black | 70 mm | IP66 | 106 mm |
| 28604.4 | KDS-Set 8/16 BK | Black | 70 mm | IP66 | 126 mm |
| 28605.4 | KDS-Set 10/24 BK | Black | 70 mm | IP66 | 153 mm |
| 28606.6 | KDS-DE 4X4,5 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28607.6 | KDS-DE 2X6,5 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28608.4 | KDS-DE 14-15 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28609.6 | KDS-DE 14-15 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28610.4 | KDS-KV M20 BK | Black | 40 mm | IP66 | 40 mm |
| 28611.4 | KDS-KV M25 BK | Black | 40 mm | IP66 | 40 mm |
| 28612.4 | KDS-KV M32 BK | Black | 40 mm | IP66 | 40 mm |
| 28613.4 | KDS-KV M40 BK | Black | 72 mm | IP66 | 72 mm |
| 28614.4 | KDS-KV M50 BK | Black | 72 mm | IP66 | 72 mm |
| 28615.4 | KDS-KV M63 BK | Black | 72 mm | IP66 | 72 mm |
| 28616.4 | KDS-GM 20 BK | Black | 31 mm | – | 31 mm |
| 28617.4 | KDS-GM 25 BK | Black | 36 mm | – | 36 mm |
| 28618.4 | KDS-GM 32 BK | Black | 45 mm | – | 45 mm |
| 28619.4 | KDS-GM 40 BK | Black | 55 mm | – | 55 mm |
| 28620.4 | KDS-GM 50 BK | Black | 67 mm | – | 67 mm |
| 28621.4 | KDS-GM 63 BK | Black | 83 mm | – | 83 mm |
| 28660.4 | KDS-FP 2x10/24 BK | Black | 123 mm | IP66 | 165 mm |
| 28661.4 | KDS-FP 3x10/24 BK | Black | 174 mm | IP66 | 165 mm |
| 28664.3 | KDS-FP-IVR OG | Orange | 19 mm | – | 60 mm |
| 28667.6 | KDS-DE 2X2-3 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28670.4 | KDS-DE 15-16 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28671.6 | KDS-DE 15-16 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28672.4 | KDS-DE 4X5 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28673.6 | KDS-DE 4X5 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28681.4 | KDS-DE 4X4,5 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28682.4 | KDS-DE 2X6,5 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28687.4 | KDS-DE 3X5-6 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28688.6 | KDS-DE 3X5-6 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28689.4 | KDS-DE 2X7 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28690.6 | KDS-DE 2X7 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28691.4 | KDS-DE 2X8 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28692.6 | KDS-DE 2X8 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28693.4 | KDS-DE 1,5 BK | Black | 20.3 mm | IP66 | 20.3 mm |
| 28694.6 | KDS-DE 1,5 GR | Grey | 20.3 mm | IP66 | 20.3 mm |
| 28695.4 | KDS-DE 2 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28696.6 | KDS-DE 2 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28697.4 | KDS-DE 3 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28698.6 | KDS-DE 3 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28700.4 | KDS-SR-FB1/A BK | Black | 39 mm | IP66 | 73 mm |
| 28701.4 | KDS-SR-FB2/A BK | Black | 39 mm | IP66 | 98 mm |
| 28702.4 | KDS-SR-FB2/B BK | Black | 39 mm | IP66 | 98 mm |
| 28703.4 | KDS-SR-FB3/A BK | Black | 39 mm | IP66 | 120 mm |
| 28704.4 | KDS-SR-FB3/B BK | Black | 39 mm | IP66 | 120 mm |
| 28705.4 | KDS-SR-FB3/C BK | Black | 39 mm | IP66 | 120 mm |
| 28706.4 | KDS-SR-FB3/D BK | Black | 39 mm | IP66 | 120 mm |
| 28707.4 | KDS-SR-FB4/A BK | Black | 39 mm | IP66 | 147 mm |
| 28708.4 | KDS-SR-FB4/B BK | Black | 39 mm | IP66 | 147 mm |
| 28709.4 | KDS-SR-FB4/C BK | Black | 39 mm | IP66 | 147 mm |
| 28710.4 | KDS-SR-FB4/D BK | Black | 39 mm | IP66 | 147 mm |
| 28711.4 | KDS-SR-FB4/E BK | Black | 39 mm | IP66 | 147 mm |
| 28712.4 | KDS-SR-FB4/F BK | Black | 39 mm | IP66 | 147 mm |
| 28713.6 | KDS-DE-FB1/A GR | Grey | 19.9 mm | IP66 | 41.5 mm |
| 28714.6 | KDS-DE-FB1/B GR | Grey | 19.9 mm | IP66 | 41.5 mm |
| 28715.6 | KDS-DE-FB1/C GR | Grey | 19.9 mm | IP66 | 41.5 mm |
| 28716.6 | KDS-DE-FB1/D GR | Grey | 19.9 mm | IP66 | 41.5 mm |
| 28717.6 | KDS-DE-FB1/E GR | Grey | 19.9 mm | IP66 | 41.5 mm |
| 28718.6 | KDS-DE-FB1/F GR | Grey | 19.9 mm | IP66 | 41.5 mm |
| 28719.6 | KDS-DE-FB2/A GR | Grey | 19.9 mm | IP66 | 64 mm |
| 28720.6 | KDS-DE-FB2/B GR | Grey | 19.9 mm | IP66 | 64 mm |
| 28721.6 | KDS-DE-FB2/C GR | Grey | 19.9 mm | IP66 | 64 mm |
| 28722.6 | KDS-DE-FB2/D GR | Grey | 19.9 mm | IP66 | 64 mm |
| 28723.6 | KDS-DE-FB2/E GR | Grey | 19.9 mm | IP66 | 64 mm |
| 28724.6 | KDS-DE-FB2/F GR | Grey | 19.9 mm | IP66 | 64 mm |
| 28725.6 | KDS-DE-FB3/A GR | Grey | 19.9 mm | IP66 | 85.4 mm |
| 28726.6 | KDS-DE-FB3/B GR | Grey | 19.9 mm | IP66 | 85.4 mm |
| 28727.6 | KDS-DE-FB4/A GR | Grey | 19.9 mm | IP66 | 108.1 mm |
| 28728.6 | KDS-DE-FB4/B GR | Grey | 19.9 mm | IP66 | 108.1 mm |
| 28730.4 | KDS-DEG 33-34 BK | Black | 42 mm | IP66 | 42 mm |
| 28731.6 | KDS-DEG 33-34 GR | Grey | 42 mm | IP66 | 42 mm |
| 28732.4 | KDS-DEG 34-35 BK | Black | 42 mm | IP66 | 42 mm |
| 28733.6 | KDS-DEG 34-35 GR | Grey | 42 mm | IP66 | 42 mm |
| 28739.6 | KDS-DE-FB3/C GR | Grey | 19.9 mm | IP66 | 85.4 mm |
| 28740.6 | KDS-DE-FB4/C GR | Grey | 19.9 mm | IP66 | 108.1 mm |
| 28762.6 | KDS-DE 4X6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28763.4 | KDS-DE 4X6 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28764.0 | Sortimentsbox KDSClick | – | 460 mm | – | 350 mm |
| 28768.4 | KDS-DE 3X4-5 BK | Black | 19.5 mm | IP66 | 19.5 mm |
| 28769.6 | KDS-DE 3X4-5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28770.4 | KDS-R 20-32 BK | Black | 47.5 mm | IP66 | 47.5 mm |
| 28771.4 | KDS-RGA M20 BK | Black | 38 mm | IP66 | 38 mm |
| 28772.4 | KDS-RGA M25 BK | Black | 38 mm | IP66 | 38 mm |
| 28773.4 | KDS-RGA M32 BK | Black | 38 mm | IP66 | 38 mm |
| 28774.4 | KDS-R 40-63 BK | Black | 80 mm | IP66 | 80 mm |
| 28775.4 | KDS-RGA M40 BK | Black | 70 mm | IP66 | 70 mm |
| 28776.4 | KDS-RGA M50 BK | Black | 70 mm | IP66 | 70 mm |
| 28777.4 | KDS-RGA M63 BK | Black | 70 mm | IP66 | 70 mm |
| 28778.6 | KDS-DE 3,3X5,4 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28799.4 | KDS-SR-FB2/C BK | Black | 39 mm | IP66 | 98 mm |
| 28800.6 | KDS-DES 2X10,5 GR | Grey | 20.3 mm | IP54 | 42.7 mm |
| 28801.6 | KDS-DES 3X9,5 GR | Grey | 20.3 mm | IP54 | 42.7 mm |
| 28802.6 | KDS-DES 3X8,5 GR | Grey | 20.3 mm | IP54 | 42.7 mm |
| 28803.6 | KDS-DES 4X7,5 GR | Grey | 20.3 mm | IP54 | 42.7 mm |
| 28804.6 | KDS-DES 7X6,5 GR | Grey | 20.3 mm | IP54 | 42.7 mm |
| 28805.6 | KDS-DES 8X5,5 GR | Grey | 20.3 mm | IP54 | 42.7 mm |
| 28806.6 | KDS-DES 8X4,5 GR | Grey | 20.3 mm | IP54 | 42.7 mm |
| 28867.6 | KDS-DEG 12-13 GR | Grey | 42 mm | IP66 | 42 mm |
| 28868.4 | KDS-DEG 12-13 BK | Black | 42 mm | IP66 | 42 mm |
| 28880.4 | KDSI-SR 1-4 BK | Black | 64 mm | IP66 | 81 mm |
| 28881.4 | KDSI-SR 6/10 BK | Black | 64 mm | IP66 | 106 mm |
| 28882.4 | KDSI-SR 8/16 BK | Black | 64 mm | IP66 | 126 mm |
| 28883.4 | KDSI-SR 10/24 BK | Black | 64 mm | IP66 | 153 mm |
| 28885.4 | KDSI-AD 1-4 BK | Black | 64 mm | IP66 | 81 mm |
| 28886.4 | KDSI-AD 6/10 BK | Black | 64 mm | IP66 | 106 mm |
| 28887.4 | KDSI-AD 8/16 BK | Black | 64 mm | IP66 | 126 mm |
| 28888.4 | KDSI-AD 10/24 BK | Black | 64 mm | IP66 | 153 mm |
| 28890.4 | KDSI-SET 1-4 BK | Black | 64 mm | IP66 | 81 mm |
| 28891.4 | KDSI-SET 6/10 BK | Black | 64 mm | IP66 | 106 mm |
| 28892.4 | KDSI-SET 8/16 BK | Black | 64 mm | IP66 | 126 mm |
| 28893.4 | KDSI-SET 10/24 BK | Black | 64 mm | IP66 | 153 mm |
| 28894.4 | KDSI-AVR BK | Black | 62 mm | – | 77 mm |
| 28895.4 | KDSI-SR 8/16/A BK | Black | 64 mm | IP54 | 126 mm |
| 28896.6 | KDS-DE 2x3-4 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28897.6 | KDSI-DEGS 4x16/1x10 GR | Grey | 42 mm | IP54 | 42 mm |
| 28952.4 | KDS-SR90 8/16 BK | Black | 79.5 mm | IP66 | 125 mm |
| 28953.4 | KDS-SR90 10/24 BK | Black | 79.5 mm | IP66 | 147 mm |
| 28980.6 | KDS-DE-Z2K 1,0-2,6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28981.6 | KDS-DE-Z2K 3,0-4,7 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28982.6 | KDS-DE-Z2K 4,8-6,2 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28983.6 | KDS-DE-Z2K 6,3-8,1 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28984.6 | KDS-DE-Z2K 8,0-8,7 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 28987.4 | KDS-SR90-AD 8/16 BK | Black | 56 mm | IP66 | 125 mm |
| 28988.4 | KDS-SR90-AD 10/24 BK | Black | 56 mm | IP66 | 147 mm |
| 29000.4 | KDS-BS 6/10 BK | Black | 70 mm | IP10 | 100 mm |
| 29001.4 | KDS-BS 8/16 BK | Black | 70 mm | IP10 | 120 mm |
| 29002.4 | KDS-BS 10/24 BK | Black | 70 mm | IP10 | 147 mm |
| 29003.4 | KDS-BC 6/10 BK | Black | 70 mm | IP10 | 100 mm |
| 29004.4 | KDS-BC 8/16 BK | Black | 70 mm | IP10 | 120 mm |
| 29005.4 | KDS-BC 10/24 BK | Black | 70 mm | IP10 | 147 mm |
| 29006.4 | KDS-BC Clip BK | Black | 10 mm | – | 10 mm |
| 29008.4 | KDS-SR-FB1/B BK | Black | 39 mm | IP66 | 73 mm |
| 29009.4 | KDS-SR-FB3/E BK | Black | 39 mm | IP66 | 120 mm |
| 29077.6 | KDS-DEG-A/KS-D | – | 45 mm | IP65 | 45 mm |
| 29078.6 | KDS-DEG-AI/KS-D | – | 45 mm | IP65 | 45 mm |
| 29100.4 | KDSI-SR-G 1-4 BK | Black | 64 mm | IP66 | 81 mm |
| 29101.4 | KDSI-SR-G 6/10 BK | Black | 64 mm | IP66 | 106 mm |
| 29102.4 | KDSI-SR-G 8/16 BK | Black | 64 mm | IP66 | 126 mm |
| 29103.4 | KDSI-SR-G 10/24 BK | Black | 64 mm | IP66 | 153 mm |
| 29105.4 | KDSI-SR-G Set 1-4 BK | Black | 64 mm | IP66 | 81 mm |
| 29106.4 | KDSI-SR-G Set 6/10 BK | Black | 64 mm | IP66 | 106 mm |
| 29107.4 | KDSI-SR-G Set 8/16 BK | Black | 64 mm | IP66 | 126 mm |
| 29108.4 | KDSI-SR-G Set 10/24 BK | Black | 64 mm | IP66 | 153 mm |
| 29114.0 | KDS-A/KS USB 3.0 | Black | 16.7 mm | IP20 | 22 mm |
| 29115.0 | KDS-A/KS USB-C | Black | 16.7 mm | IP20 | 22 mm |
| 29116.0 | KDS-A/KS CAT6 | Silver | 16.7 mm | IP20 | 22 mm |
| 29117.0 | KDS-A/KS HDMI | Black | 17.2 mm | IP20 | 22 mm |
| 29120.6 | KDS-DE-RAIL/B GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29121.6 | KDS-DE-RAIL 1,5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29123.6 | KDS-DE-RAIL 2 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29124.6 | KDS-DE-RAIL 2-3 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29125.6 | KDS-DE-RAIL 3 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29126.6 | KDS-DE-RAIL 3-4 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29127.6 | KDS-DE-RAIL 4-5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29128.6 | KDS-DE-RAIL 5-6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29129.6 | KDS-DE-RAIL 6-7 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29130.6 | KDS-DE-RAIL 7-8 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29131.6 | KDS-DE-RAIL 8-9 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29132.6 | KDS-DE-RAIL 9-10 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29133.6 | KDS-DE-RAIL 10-11 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29134.6 | KDS-DE-RAIL 11-12 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29135.6 | KDS-DE-RAIL 12-13 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29136.6 | KDS-DE-RAIL 13-14 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29137.6 | KDS-DE-RAIL 14-15 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29138.6 | KDS-DE-RAIL 15-16 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29139.6 | KDS-DE-RAIL 2X4-5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29140.6 | KDS-DE-RAIL 2X5-6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29141.6 | KDS-DE-RAIL 2X6,5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29142.6 | KDS-DE-RAIL 2X7 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29143.6 | KDS-DE-RAIL 2X8 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29144.6 | KDS-DE-RAIL 3X4-5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29145.6 | KDS-DE-RAIL 3X5-6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29146.6 | KDS-DE-RAIL 4X2-3 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29147.6 | KDS-DE-RAIL 4X3-4 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29148.6 | KDS-DE-RAIL 4X4,5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29149.6 | KDS-DE-RAIL 4X5 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29150.6 | KDS-DE-RAIL 4X6 GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29151.6 | KDS-DE-RAIL/1XASI GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29152.6 | KDS-DE-RAIL/2XASI GR | Grey | 19.5 mm | IP66 | 19.5 mm |
| 29153.6 | KDS-DEG-RAIL/B GR | Grey | 42 mm | IP66 | 42 mm |
| 29154.6 | KDS-DEG-RAIL 12-13 GR | Grey | 42 mm | IP66 | 42 mm |
| 29155.6 | KDS-DEG-RAIL 14-15 GR | Grey | 42 mm | IP66 | 42 mm |
| 29156.6 | KDS-DEG-RAIL 15-16 GR | Grey | 42 mm | IP66 | 42 mm |
| 29157.6 | KDS-DEG-RAIL 16-17 GR | Grey | 42 mm | IP66 | 42 mm |
| 29158.6 | KDS-DEG-RAIL 17-18 GR | Grey | 42 mm | IP66 | 42 mm |
| 29159.6 | KDS-DEG-RAIL 18-19 GR | Grey | 42 mm | IP66 | 42 mm |
| 29160.6 | KDS-DEG-RAIL 19-20 GR | Grey | 42 mm | IP66 | 42 mm |
| 29161.6 | KDS-DEG-RAIL 20-21 GR | Grey | 42 mm | IP66 | 42 mm |
| 29162.6 | KDS-DEG-RAIL 21-22 GR | Grey | 42 mm | IP66 | 42 mm |
| 29163.6 | KDS-DEG-RAIL 22-23 GR | Grey | 42 mm | IP66 | 42 mm |
| 29164.6 | KDS-DEG-RAIL 23-24 GR | Grey | 42 mm | IP66 | 42 mm |
| 29165.6 | KDS-DEG-RAIL 24-25 GR | Grey | 42 mm | IP66 | 42 mm |
| 29166.6 | KDS-DEG-RAIL 25-26 GR | Grey | 42 mm | IP66 | 42 mm |
| 29167.6 | KDS-DEG-RAIL 26-27 GR | Grey | 42 mm | IP66 | 42 mm |
| 29168.6 | KDS-DEG-RAIL 27-28 GR | Grey | 42 mm | IP66 | 42 mm |
| 29169.6 | KDS-DEG-RAIL 28-29 GR | Grey | 42 mm | IP66 | 42 mm |
| 29170.6 | KDS-DEG-RAIL 29-30 GR | Grey | 42 mm | IP66 | 42 mm |
| 29171.6 | KDS-DEG-RAIL 30-31 GR | Grey | 42 mm | IP66 | 42 mm |
| 29172.6 | KDS-DEG-RAIL 31-32 GR | Grey | 42 mm | IP66 | 42 mm |
| 29173.6 | KDS-DEG-RAIL 32-33 GR | Grey | 42 mm | IP66 | 42 mm |
| 29174.6 | KDS-DEG-RAIL 33-34 GR | Grey | 42 mm | IP66 | 42 mm |
| 29175.6 | KDS-DEG-RAIL 34-35 GR | Grey | 42 mm | IP66 | 42 mm |
