28660
28660.4

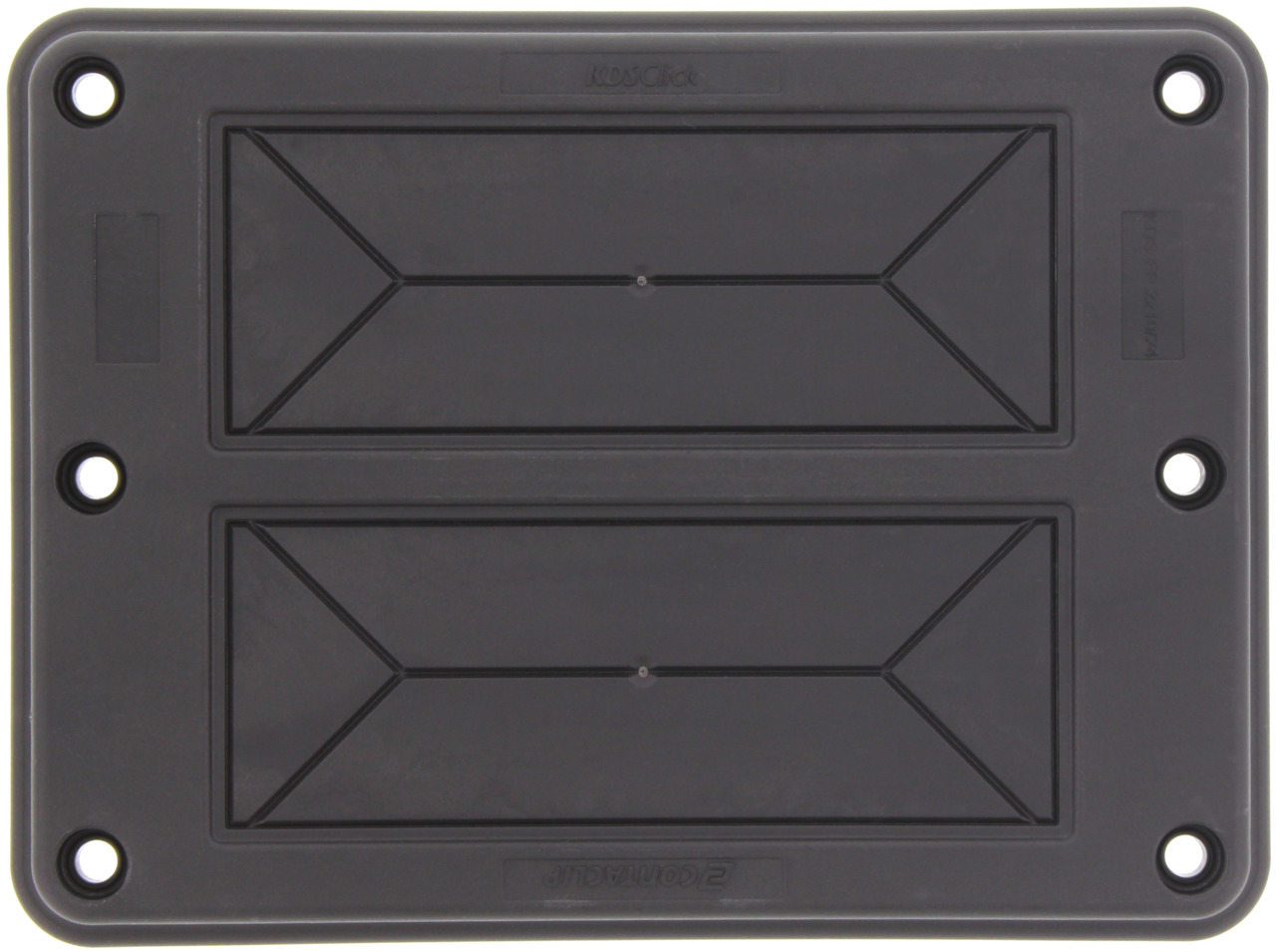

KDS-FP 2x10/24 BK
Cable entry flange plate with foamed-in frame gasket, Mounting type: Screw, Length: 165 mm, Width: 123 mm, IP66, Colour: Black
Technical data
- Colour
- Black
- Width
- 123 mm
- Length
- 165 mm
- Mounting type
- Screws
- Schutzart
- IP66
- Anzahl der Schraubenlöcher
- 6
- Art der Dichtung
- Sealing and moulded flexible foam
- Art der Leitungen
- with plug
- Aufbauhöhe
- 10.5 mm
- Befestigungsschrauben
- M 5 (ISO 4762 / DIN 912)
- DIN EN 61373:2011 Bahnanwendungen - Betriebsmittel von Bahnfahrzeugen - Prüfungen für Schwingen und Schocken
- Category 1, Class B
- DIN EN 61373:2011 Bescheinigungsnummer
- PAConsult No. 24DE-00982
- Dichtungsmaterial
- Polyurethane-based
- Drehmoment der Befestigungsschrauben
- 3 Nm
- Durchmesser der Schraubenlöcher
- 5.5 mm
- EU-POP compliant
- Yes
- Flammability class UL 94
- V-0
- Form Wandausschnitt
- square
- Glass-fibre reinforced
- Yes
- Halogenfrei
- Yes
- Height
- 17.5 mm
- Material
- Polyamide 6.6
- NEMA Type
- 1, 12, 4x (indoor use only)
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- RoHS compliant
- Yes
- Silikonfrei
- Yes
- TSCA compliant
- Yes
- UL File Number
- E489821
- UL Recognized
- 1
- UL Type Rating
- 1, 12, 4x (indoor use only)
- UL approval
- UL 508A
- Weight per piece (including packaging)
- 146 g
- Weight per piece (not including packaging)
- 117 g
- Working temperature, max.
- 120 °C
- Working temperature, min.
- -40 °C
- cUL Recognized
- 1
- cUL approval
- C22.2 No. 14-18
- cUL file number
- E489821
Commercial data
- Country of origin
- DE
- Customs number
- 39259020
- GTIN (EAN)
- 4044211220358
