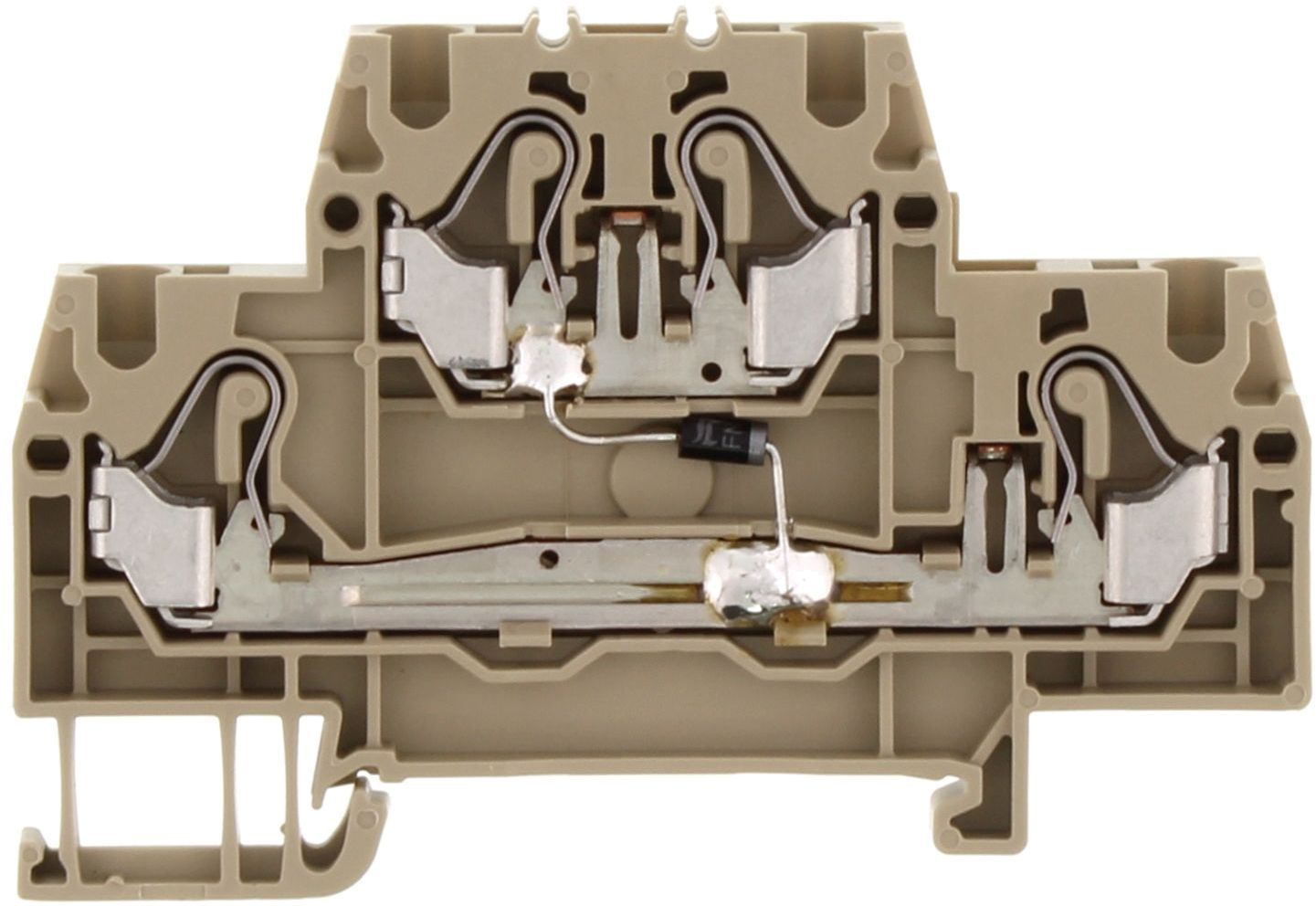

FRKD 2,5/D1 BG
Double-level terminal with electronic components, Push-in connection, Mounting type: Mounting rail TS 35/7.5, Rated cross-section: 2.5 mm², Width: 5.1 mm, Colour: Beige
Technical data
- Rated current
- 1 A
- Rated voltage
- 500 V
- Rated cross-section
- 2.5 mm²
- Connection principle
- Push-in connection
- Colour
- Beige
- Width
- 5.1 mm
- Length
- 75.4 mm
- Mounting type
- Mounting rail TS 35/7,5
- CSA Usegroup B: rated current
- 20 A
- CSA Usegroup B: rated voltage
- 300 V
- CSA Usegroup C: rated current
- 20 A
- CSA Usegroup C: rated voltage
- 300 V
- CSA Usegroup D: rated current
- 5 A
- CSA Usegroup D: rated voltage
- 600 V
- CSA approval
- C22.2 No 158
- CSA approval granted
- Yes
- CSA wire cross-section AWG, max.
- 12
- CSA wire cross-section AWG, min.
- 26
- CSAus Usegroup B: rated current
- 20 A
- CSAus Usegroup B: rated voltage
- 300 V
- CSAus Usegroup C: rated current
- 20 A
- CSAus Usegroup C: rated voltage
- 300 V
- CSAus Usegroup D: rated current
- 5 A
- CSAus Usegroup D: rated voltage
- 600 V
- CSAus approval
- UL 1059
- CSAus approval granted
- Yes
- CSAus wire cross-section AWG, max.
- 12
- CSAus wire cross-section AWG, min.
- 26
- Connection position
- Top
- Connections
- 2 x 2
- Contamination degree
- 3
- Diode
- 1N4007 / 1000V / 1A
- EAC approval
- TR ZU 004/2011
- EAC approval granted
- Yes
- EU-POP compliant
- Yes
- Flammability class UL 94
- V-0
- Gauge plug acc. to EN 60 947-1
- A3
- Height TS 35/7.5
- 53 mm
- Insulating housing
- Polyamide 6.6
- KEMA KEUR approval
- EN 60947-7-1:2009
- KEMA KEUR approval granted
- Yes
- KEMA Leiterquerschnitt flexibel mit Aderendhülse max.
- 2.5
- KEMA Leiterquerschnitt flexibel mit Aderendhülse min.
- 0.2
- KEMA rated current
- 24 A
- KEMA rated current (diode)
- 24 (1) A
- KEMA rated impulse voltage
- 6 kV
- KEMA rated voltage
- 500 V
- KEMA wire cross-section single core (rigid), min.
- 0.2 mm²
- KEMA wire cross-section single-core (rigid), max.
- 4 mm²
- KEMA wire cross-section stranded, max.
- 4 mm²
- KEMA wire cross-section stranded, min.
- 0.2 mm²
- Number of cross-connection channels
- 2
- Number of terminals per level
- 2
- Overvoltage category
- III
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- Rated impulse voltage
- 6 kV
- RoHS compliant
- Yes
- Stripping length
- 12 mm
- TSCA compliant
- Yes
- Weight per piece (including packaging)
- 14.8 g
- Weight per piece (not including packaging)
- 13.8 g
- Wire cross-section AWG, max.
- 14
- Wire cross-section AWG, min.
- 26
- Wire cross-section single core (rigid)/stranded, max.
- 4 mm²
- Wire cross-section single-core (rigid) / stranded, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrule, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrules, max.
- 2.5 mm²
- Wire cross-section stranded, max.
- 4 mm²
- Wire cross-section stranded, min.
- 0.2 mm²
- Working temperature, max.
- 120 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- BG
- Customs number
- 85369010
- GTIN (EAN)
- 4044211130091
