28501
28501.4

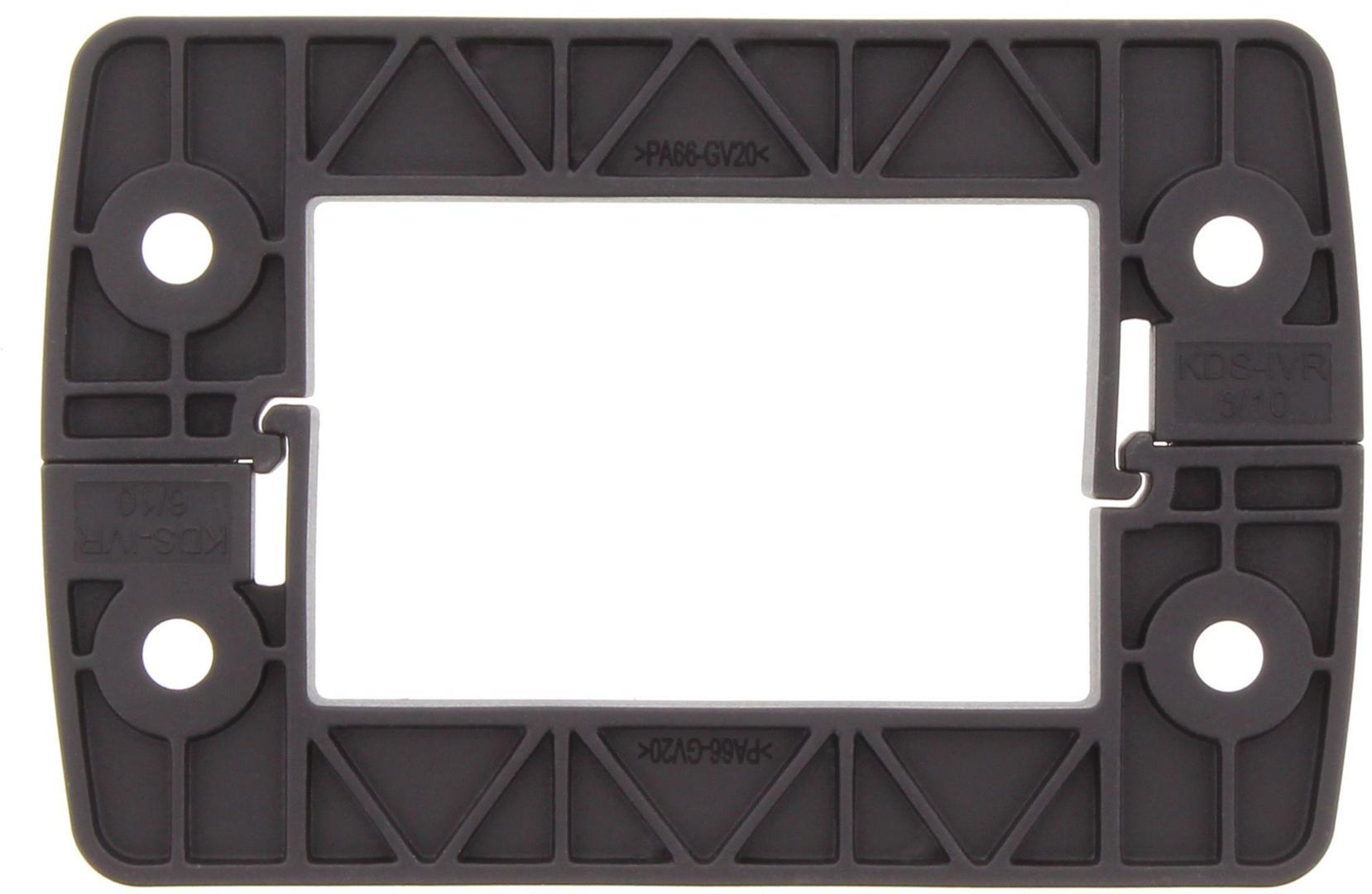

KDS-IVR 6/10 BK
Technical data
- Colour
- Black
- Width
- 70 mm
- Length
- 105 mm
- Mounting type
- Screws
- Anzahl der Schraubenlöcher
- 4
- Aufbauhöhe
- 11.5 mm
- Blechdicke max.
- 3 mm
- DNV GL Certificate number
- TAE00003V7
- DNV GL Location Classes
- Temperature: -40°C to 120°C, Humidity: B, Vibration: B, Ingress protection: IP66
- DNV GL approval granted
- 1
- Durchmesser der Schraubenlöcher
- 5.5 mm
- EU-POP compliant
- Yes
- Flammability class UL 94
- V-0
- Glass-fibre reinforced
- Yes
- Halogenfrei
- Yes
- Height
- 11.5 mm
- Material
- Polyamide 6.6
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- RoHS compliant
- Yes
- Silikonfrei
- Yes
- TSCA compliant
- Yes
- UL File Number
- E489821
- UL Recognized
- 1
- UL approval
- UL 508A
- Weight per piece (including packaging)
- 28 g
- Weight per piece (not including packaging)
- 27.6 g
- Working temperature, max.
- 120 °C
- Working temperature, min.
- -40 °C
- cUL Recognized
- 1
- cUL approval
- C22.2 No. 14-18
- cUL file number
- E489821
Commercial data
- Country of origin
- DE
- Customs number
- 39259020
- GTIN (EAN)
- 4044211210779
