2012.0H

2012.0

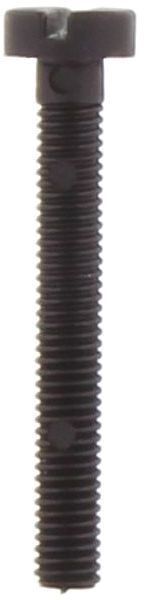

BSK M 3x22

BSK M 3x22

Mounting screw, M 3, Colour: Black

Download datasheet

Technical data

Colour
Black
Length
24 mm
EU-POP compliant
Yes
Flammability class UL 94
V-2
Material
Polyamide 6.6
PROP 65 compliant
Yes
REACH Candidate Substance Note
No
REACH compliant
Yes
REACH reference date
2026-02-04
RoHS compliant
Yes
Screw head
Slotted
Screw threading
M 3
TSCA compliant
Yes
Weight per piece (including packaging)
0.2 g
Weight per piece (not including packaging)
0.19 g
Working temperature, max.
105 °C
Working temperature, min.
-40 °C

Commercial data

Country of origin
DE
Customs number
39269097
GTIN (EAN)
4044211048150
