Double-level protective conductor terminals
Doppelstock-Schutzleiterklemmen · Double-level protective conductor terminals
Type
3 / 3Featured models from each series. Key articles are also marked ★ in the table below.
Specification table
3| Article no. | Type | Colour | Connection principle | Rated cross-section | Width |
|---|---|---|---|---|---|

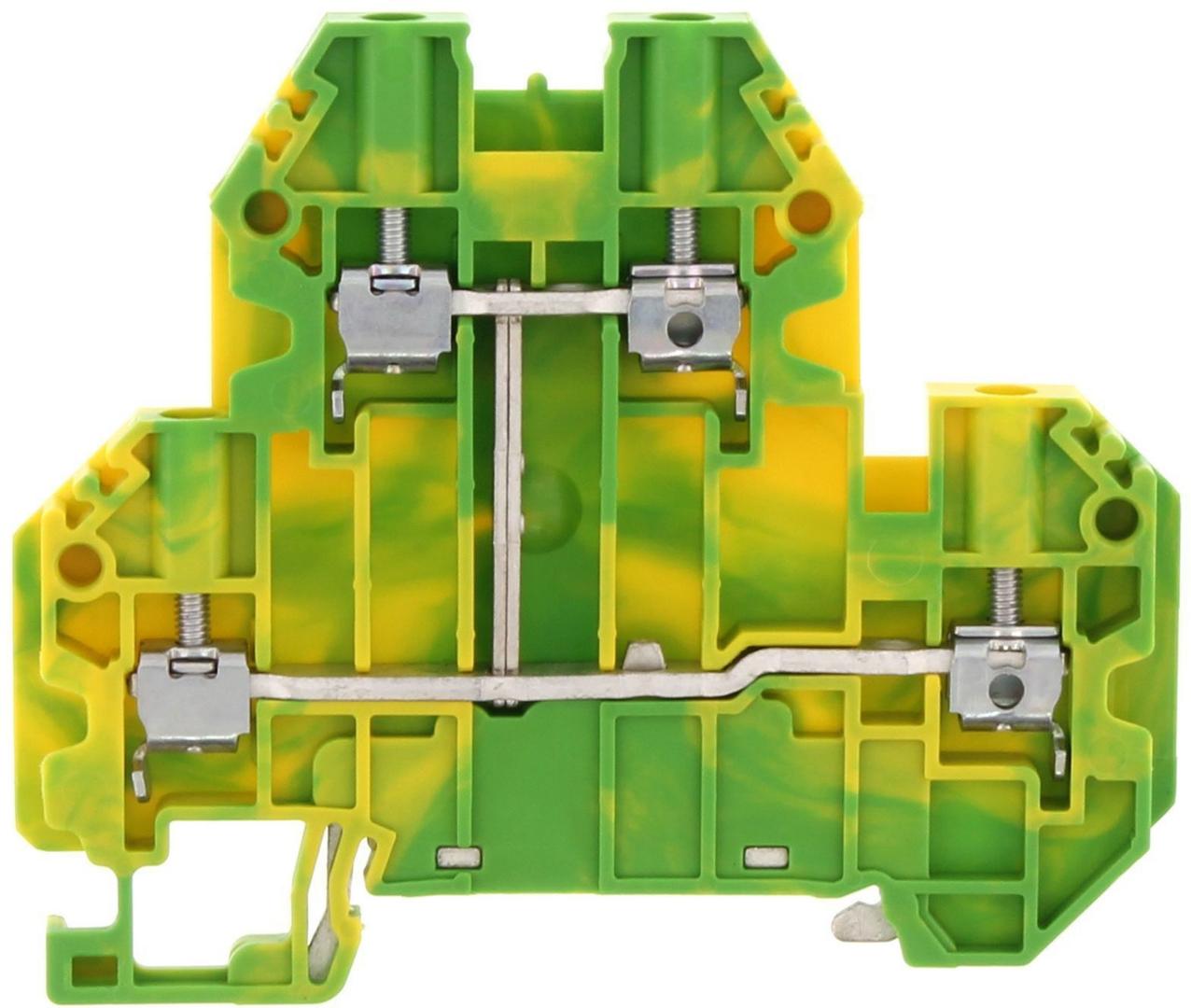

| 17182.2 | SSLD 2,5 GNYE | Green-yellow | Screw connection | 2.5 mm² | 5.1 mm |
| 17187.2 | SSLD 4 GNYE | Green-yellow | Screw connection | 4 mm² | 6.1 mm |
| 17192.2 | SSLD 10 GNYE | Green-yellow | Screw connection | 10 mm² | 10.1 mm |
