End panels
Abschlussplatten · End panels
Type
54 / 54Featured models from each series. Key articles are also marked ★ in the table below.
17254.0
SAP 16/2A RB
Colour: Red-brown · Width: 1.5 mm
17254.1
SAP 16/2A GN
Colour: Green · Width: 1.5 mm
17254.2
SAP 16/2A BG
Colour: Beige · Width: 1.5 mm
17254.3
SAP 16/2A OG
Colour: Orange · Width: 1.5 mm
17254.4
SAP 16/2A BK
Colour: Black · Width: 1.5 mm
17254.5
SAP 16/2A BU
Colour: Blue · Width: 1.5 mm
17254.6
SAP 16/2A GR
Colour: Grey · Width: 1.5 mm
17254.8
SAP 16/2A YE
Colour: Yellow · Width: 1.5 mm
17258.4
SAP SSIK 4/6 BK
Colour: Black · Width: 1.5 mm

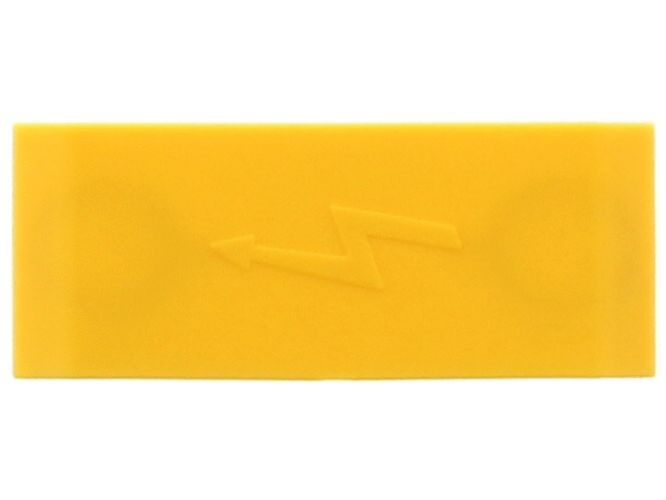

17281.8
SAD 1/16/B YE
Colour: Yellow · Width: 16 mm
17282.7
SAD 1/16/B WH
Colour: White · Width: 16 mm
17283.8
SAD 1/18/B YE
Colour: Yellow · Width: 18 mm

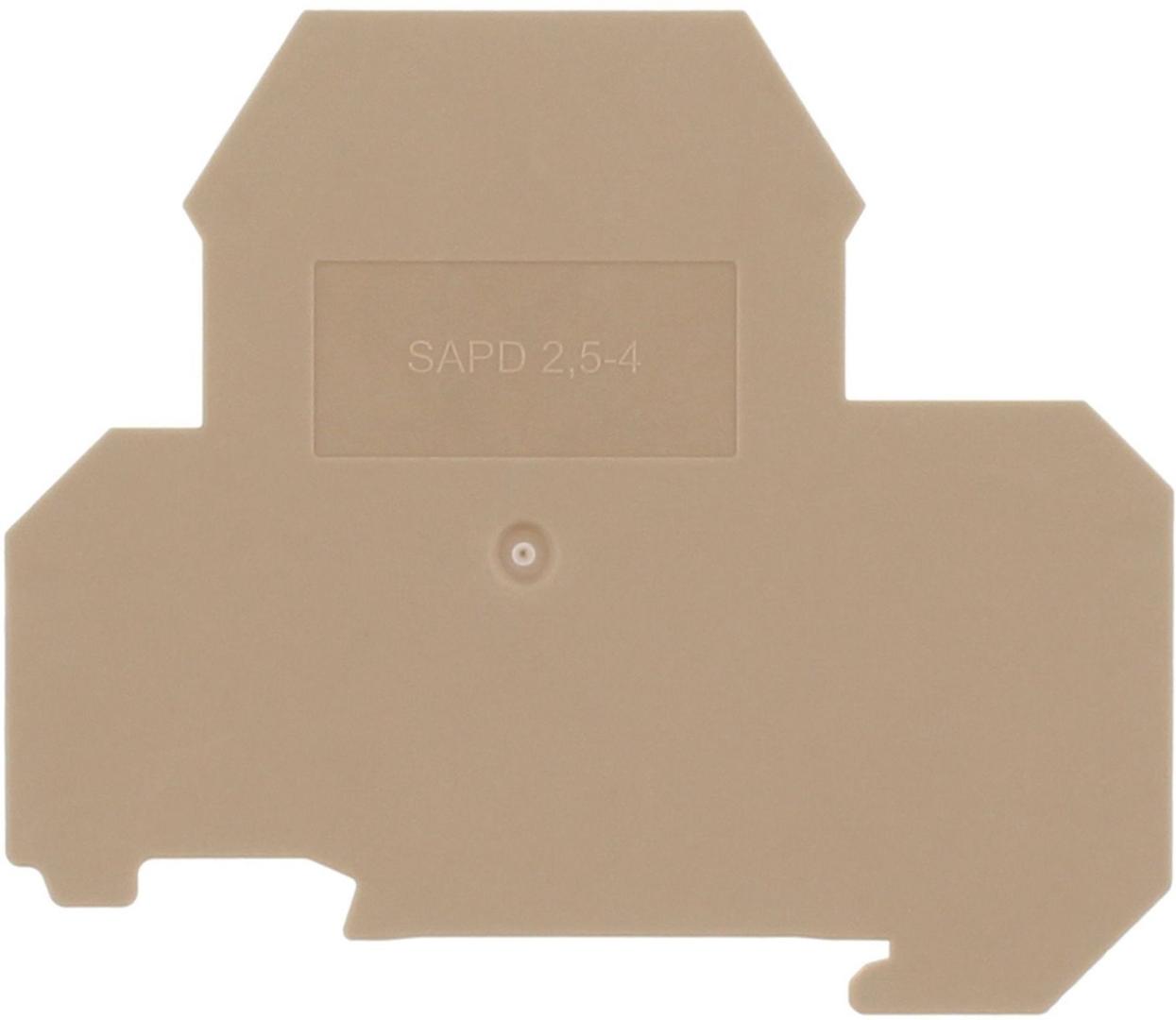

17292.2
SAPD 2,5-4 BG
Colour: Beige · Width: 1.5 mm
17293.2
SAPD 10 BG
Colour: Beige · Width: 1.5 mm
Specification table
54| Article no. | Type | Colour | Width | Length | Material |
|---|---|---|---|---|---|
| 17254.0 | SAP 16/2A RB | Red-brown | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.1 | SAP 16/2A GN | Green | 1.5 mm | 53 mm | Polyamide 6.6 |
| ★17254.2 | SAP 16/2A BG | Beige | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.3 | SAP 16/2A OG | Orange | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.4 | SAP 16/2A BK | Black | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.5 | SAP 16/2A BU | Blue | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.6 | SAP 16/2A GR | Grey | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.7 | SAP 16/2A WH | White | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.8 | SAP 16/2A YE | Yellow | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17254.9 | SAP 16/2A RD | Red | 1.5 mm | 53 mm | Polyamide 6.6 |
| 17258.4 | SAP SSIK 4/6 BK | Black | 1.5 mm | 58 mm | Polyamide 6.6 |
| 17281.8 | SAD 1/16/B YE | Yellow | 16 mm | 40.25 mm | Polyamide 6.6 |
| 17282.7 | SAD 1/16/B WH | White | 16 mm | 40.25 mm | Polyamide 6.6 |
| 17283.8 | SAD 1/18/B YE | Yellow | 18 mm | 51.5 mm | Polyamide 6.6 |
| 17284.7 | SAD 1/18/B WH | White | 18 mm | 51.5 mm | Polyamide 6.6 |
| 17285.8 | SAD 1/20/B YE | Yellow | 20 mm | 55.5 mm | Polyamide 6.6 |
| 17286.7 | SAD 1/20/B WH | White | 20 mm | 55.5 mm | Polyamide 6.6 |
| 17290.7 | SAD 1/27/B WH | White | 26.5 mm | 70.2 mm | Polyamide 6.6 |
| 17291.8 | SAD 1/27/B YE | Yellow | 26.5 mm | 70.2 mm | Polyamide 6.6 |
| 17292.1 | SAPD 2,5-4 GN | Green | 1.5 mm | 72 mm | Polyamide 6.6 |
| ★17292.2 | SAPD 2,5-4 BG | Beige | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17292.3 | SAPD 2,5-4 OG | Orange | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17292.4 | SAPD 2,5-4 BK | Black | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17292.5 | SAPD 2,5-4 BU | Blue | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17292.6 | SAPD 2,5-4 GR | Grey | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17293.1 | SAPD 10 GN | Green | 1.5 mm | 72 mm | Polyamide 6.6 |
| ★17293.2 | SAPD 10 BG | Beige | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17293.3 | SAPD 10 OG | Orange | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17293.5 | SAPD 10 BU | Blue | 1.5 mm | 72 mm | Polyamide 6.6 |
| 17295.8 | SAD 1/5/B YE | Yellow | 5 mm | 27.2 mm | Polyamide 6.6 |
| 17296.8 | SAD 1/6/B YE | Yellow | 6 mm | 27.2 mm | Polyamide 6.6 |
| 17297.8 | SAD 1/8/B YE | Yellow | 8 mm | 27.2 mm | Polyamide 6.6 |
| 17298.8 | SAD 1/10/B YE | Yellow | 10 mm | 27.2 mm | Polyamide 6.6 |
| 17431.6 | SDK 4-DP GR | Grey | 3 mm | 56.75 mm | Polyamide 6.6 |
| 17432.6 | SDK 4-FP GR | Grey | 10.75 mm | 63.2 mm | Polyamide 6.6 |
| 17433.6 | SDK 4-AP/6 GR | Grey | 5.3 mm | 70 mm | Polyamide 6.6 |
| 17434.6 | SDK 4-DPA GR | Grey | 3 mm | 27.5 mm | Polyamide 6.6 |
| 17436.4 | SDK 4-SPI/10 DG | Dark grey | 2 mm | 81 mm | – |
| 17437.6 | SDK 4-VPI GR | Grey | 7 mm | 8.1 mm | Polyamide 6.6 |
| 17441.6 | SDK 10-DP GR | Grey | 3 mm | – | Polyamide 6.6 |
| 17442.6 | SDK 10-FP GR | Grey | – | – | Polyamide 6.6 |
| 17443.6 | SDK 10-AP/6 GR | Grey | – | 82 mm | Polyamide 6.6 |
| 17444.6 | SDK 10-DPA GR | Grey | 3 mm | 32.87 mm | Polyamide 6.6 |
| 17445.9 | SDK 10-TWI RD | Red | 6.4 mm | 22.2 mm | Polyamide 6.6 |
| 17446.4 | SDK 10-SPI/10 DG | Dark grey | 2 mm | 101 mm | – |
| 17447.6 | SDK 10-VPI GR | Grey | 10.1 mm | – | Polyamide 6.6 |
| 17451.6 | SDK 16-DP GR | Grey | 3 mm | 73.23 mm | Polyamide 6.6 |
| 17452.6 | SDK 16-FP GR | Grey | – | – | Polyamide 6.6 |
| 17453.6 | SDK 16-AP/6 GR | Grey | – | – | Polyamide 6.6 |
| 17454.6 | SDK 16-DPA GR | Grey | 3 mm | 37.2 mm | Polyamide 6.6 |
| 17455.9 | SDK 16-TWI RD | Red | 6.4 mm | 33 mm | Polyamide 6.6 |
| 17456.4 | SDK 16-SPI/10 DG | Dark grey | – | – | Polyamide 6.6 |
| 17457.6 | SDK 16-VPI GR | Grey | – | – | Polyamide 6.6 |
| 17530.2 | SAP/L/Q/D BG | Beige | 1.5 mm | 93 mm | Polyamide 6.6 |
