Fuse (disconnect) terminals
Sicherungs-(trenn)klemmen · Fuse (disconnect) terminals
Type
66 / 66Featured models from each series. Key articles are also marked ★ in the table below.
1004.4
SK 1/35 24V AC LED(RD) PA-G BK
Colour: Black · Connection principle: Screw connection · Rated cross-section: 10 mm²
1067.4
SK 1/35 48V DC LED(RD) PA-G BK
Colour: Black · Connection principle: Screw connection · Rated cross-section: 10 mm²
1078.2
STK 2 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²
1078.5
STK 2 BU
Colour: Blue · Connection principle: Screw connection · Rated cross-section: 4 mm²
1079.2
STKD 1 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²
1079.5
STKD 1 BU
Colour: Blue · Connection principle: Screw connection · Rated cross-section: 4 mm²
1101.2
SIK 10 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 10 mm²
1101.5
SIK 10 BU
Colour: Blue · Connection principle: Screw connection · Rated cross-section: 10 mm²
1102.2
SIK 10/Z BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 10 mm²
1103.2
SIK 10/LED(RD)/12V DC/24V AC BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 10 mm²
1104.2
SIK 10/LED(RD)/20-30V DC/40-60V AC BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 10 mm²
1106.2
SIK 10/LED(RD)/115V DC/230V AC BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 10 mm²
1108.2
SIK 10/Z/LED(RD)/12V DC/24V AC BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 10 mm²
1190.2
STK 2/15 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²
2190.2
STK 1 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²

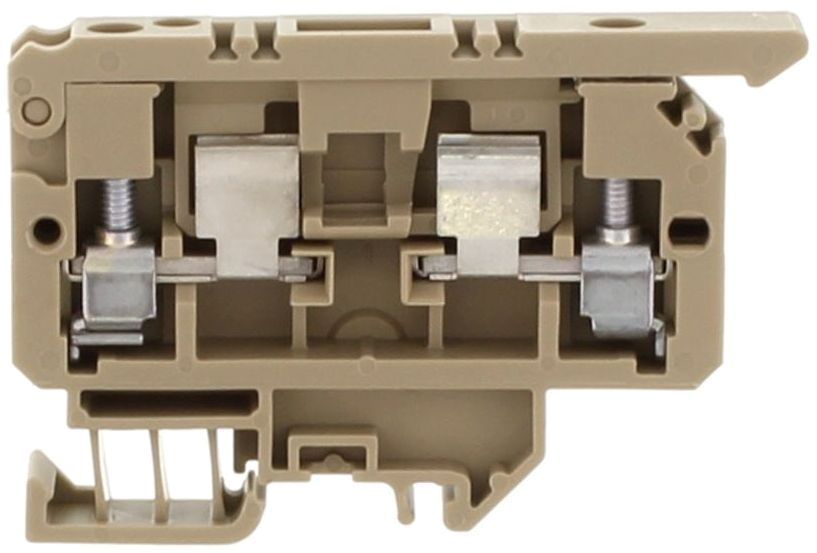

2191.2
STK 1/15 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²
17042.2
SIK 10/ST BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 10 mm²
Specification table
66| Article no. | Type | Colour | Connection principle | Rated cross-section | Width |
|---|---|---|---|---|---|
| 1004.4 | SK 1/35 24V AC LED(RD) PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| 1067.4 | SK 1/35 48V DC LED(RD) PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| ★1078.2 | STK 2 BG | Beige | Screw connection | 4 mm² | 8 mm |
| 1078.4 | STK 2 BK | Black | Screw connection | 4 mm² | 8 mm |
| 1078.5 | STK 2 BU | Blue | Screw connection | 4 mm² | 8 mm |
| ★1079.2 | STKD 1 BG | Beige | Screw connection | 4 mm² | 8 mm |
| 1079.5 | STKD 1 BU | Blue | Screw connection | 4 mm² | 8 mm |
| ★1101.2 | SIK 10 BG | Beige | Screw connection | 10 mm² | 8 mm |
| 1101.5 | SIK 10 BU | Blue | Screw connection | 10 mm² | 8 mm |
| 1102.2 | SIK 10/Z BG | Beige | Screw connection | 10 mm² | 10 mm |
| 1103.2 | SIK 10/LED(RD)/12V DC/24V AC BG | Beige | Screw connection | 10 mm² | 8 mm |
| 1104.2 | SIK 10/LED(RD)/20-30V DC/40-60V AC BG | Beige | Screw connection | 10 mm² | 8 mm |
| 1105.2 | SIK 10/LED(RD)/40-60V DC/80-120V AC BG | Beige | Screw connection | 10 mm² | 8 mm |
| ★1106.2 | SIK 10/LED(RD)/115V DC/230V AC BG | Beige | Screw connection | 10 mm² | 8 mm |
| 1106.5 | SIK 10/LED(RD)/115V DC/230V AC BU | Blue | Screw connection | 10 mm² | 8 mm |
| 1107.2 | SIK 10/2 LED´s(RD)/24V DC BG | Beige | Screw connection | 10 mm² | 8 mm |
| 1108.2 | SIK 10/Z/LED(RD)/12V DC/24V AC BG | Beige | Screw connection | 10 mm² | 10 mm |
| 1109.2 | SIK 10/Z/LED(RD)/20-30V DC/40-60V AC BG | Beige | Screw connection | 10 mm² | 10 mm |
| 1110.2 | SIK 10/Z/LED(RD)/40-60V DC/80-120V AC BG | Beige | Screw connection | 10 mm² | 10 mm |
| 1111.2 | SIK 10/Z/LED(RD)/115V DC/230V AC BG | Beige | Screw connection | 10 mm² | 10 mm |
| 1112.2 | SIK 10/Z/2 LED´s(RD)/24V DC BG | Beige | Screw connection | 10 mm² | 10 mm |
| 1113.2 | SST/SIK/LED(RD)/12V DC/24V AC | Beige | Plug in | – | – |
| 1114.2 | SST/SIK/LED(RD)/20-30V DC/40-60V AC | Beige | Plug in | – | – |
| 1115.2 | SST/SIK/LED(RD)/40-60V DC/80-120V AC | Beige | Plug in | – | – |
| 1116.2 | SST/SIK/LED(RD)/115V DC/230V AC | Beige | Plug in | – | – |
| 1117.2 | SST/SIK/2 LED`s(RD)/24V DC | Beige | Plug in | – | – |
| 1119.4 | SK 1/35 48V AC LED(RD) PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| ★1190.2 | STK 2/15 BG | Beige | Screw connection | 4 mm² | 8 mm |
| 1190.5 | STK 2/15 BU | Blue | Screw connection | 4 mm² | 8 mm |
| 1367.4 | SK 1/35 PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| 1368.4 | SK 1/35 m.K. PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| 1375.4 | SK 1/35 230V AC G PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| 1376.4 | SK 1/35 115V AC G PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| 1380.4 | SK 1/35 24V DC LED(RD) PA-G BK | Black | Screw connection | 10 mm² | 12.2 mm |
| 2048.2 | SKA 5x25 | – | – | – | – |
| 2049.2 | SKA 5x20 | – | – | – | – |
| ★2190.2 | STK 1 BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2190.3 | STK 1 OG | Orange | Screw connection | 4 mm² | 8 mm |
| 2190.4 | STK 1 BK | Black | Screw connection | 4 mm² | 8 mm |
| 2190.5 | STK 1 BU | Blue | Screw connection | 4 mm² | 8 mm |
| 2190.9 | STK 1 RD | Red | Screw connection | 4 mm² | 8 mm |
| ★2191.2 | STK 1/15 BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2191.5 | STK 1/15 BU | Blue | Screw connection | 4 mm² | 8 mm |
| 2449.2 | STK 1/LED(RD)/24V DC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2450.2 | STK 1/LED(RD)/48V DC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2451.2 | STK 1/LED(RD)/60V DC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2452.2 | STK 1/LED(RD)/115V DC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2453.2 | STK 1/LED(RD)/230V DC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2454.2 | STK 1/LED(RD)/24V AC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2455.2 | STK 1/LED(RD)/48V AC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2456.2 | STK 1/LED(RD)/60V AC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2457.2 | STK 1/LED(RD)/115V AC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2458.2 | STK 1/LED(RD)/230V AC BG | Beige | Screw connection | 4 mm² | 8 mm |
| 2873.3 | VBS 2/10 OG | Orange | – | – | 16 mm |
| 2874.3 | VBS 3/10 OG | Orange | – | – | 24 mm |
| 2875.3 | VBS 2/10/Z OG | Orange | – | – | 20 mm |
| 2876.3 | VBS 3/10/Z OG | Orange | – | – | 30 mm |
| 17041.4 | SIK 10/Z/ST PA-G BK | Black | Screw connection | 10 mm² | 10 mm |
| ★17042.2 | SIK 10/ST BG | Beige | Screw connection | 10 mm² | 8 mm |
| 17042.3 | SIK 10/ST OG | Orange | Screw connection | 10 mm² | 8 mm |
| 17043.2 | SIK 10/Z/ST BG | Beige | Screw connection | 10 mm² | 10 mm |
| 17044.2 | SIK 10/ST/5x20 BG | Beige | Screw connection | 10 mm² | 8 mm |
| 17045.2 | SST/SIK/LED(RD)/500 V AC/DC | Beige | Plug in | – | – |
| 17099.4 | SIK 10/Z PA-G BK | Black | Screw connection | 10 mm² | 8 mm |
| 17364.4 | SIK 10 PA-G BK | Black | Screw connection | 10 mm² | 8 mm |
| 17365.4 | SIK 10/Z PA-G BK | Black | Screw connection | 10 mm² | 10 mm |
