PTKS transformer terminals
Transformatorenklemmen PTKS · PTKS transformer terminals
Type
29 / 29Featured models from each series. Key articles are also marked ★ in the table below.
27080.6
PTKS 4/1 GR
Colour: Grey · Connection principle: Push-in connection · Rated cross-section: 4 mm²
27081.6
PTKS 4/2 GR
Colour: Grey · Connection principle: Push-in connection · Rated cross-section: 4 mm²
27082.6
PTKS-ADH 4/2 GR
Colour: Grey · Width: 15 mm
27083.6
PTKS-ADH 4/3 GR
Colour: Grey · Width: 23.1 mm
27084.9
PQI 4/2/PTKS RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27085.9
PQI 4/3/PTKS RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27086.9
PQI 4/5/PTKS RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27087.6
PTKS 4/SI 5x20 GR
Colour: Grey · Connection principle: Push-in connection · Rated cross-section: 4 mm²
27088.6
PTKS 4/SI 6,3x32 GR
Colour: Grey · Connection principle: Push-in connection · Rated cross-section: 4 mm²
27089.6
PTKS-ADH 4/SI 5x20 GR
Colour: Grey · Width: 12.5 mm
27090.6
PTKS-ADH 4/SI 6,3x32 GR
Colour: Grey · Width: 12.5 mm
27091.6

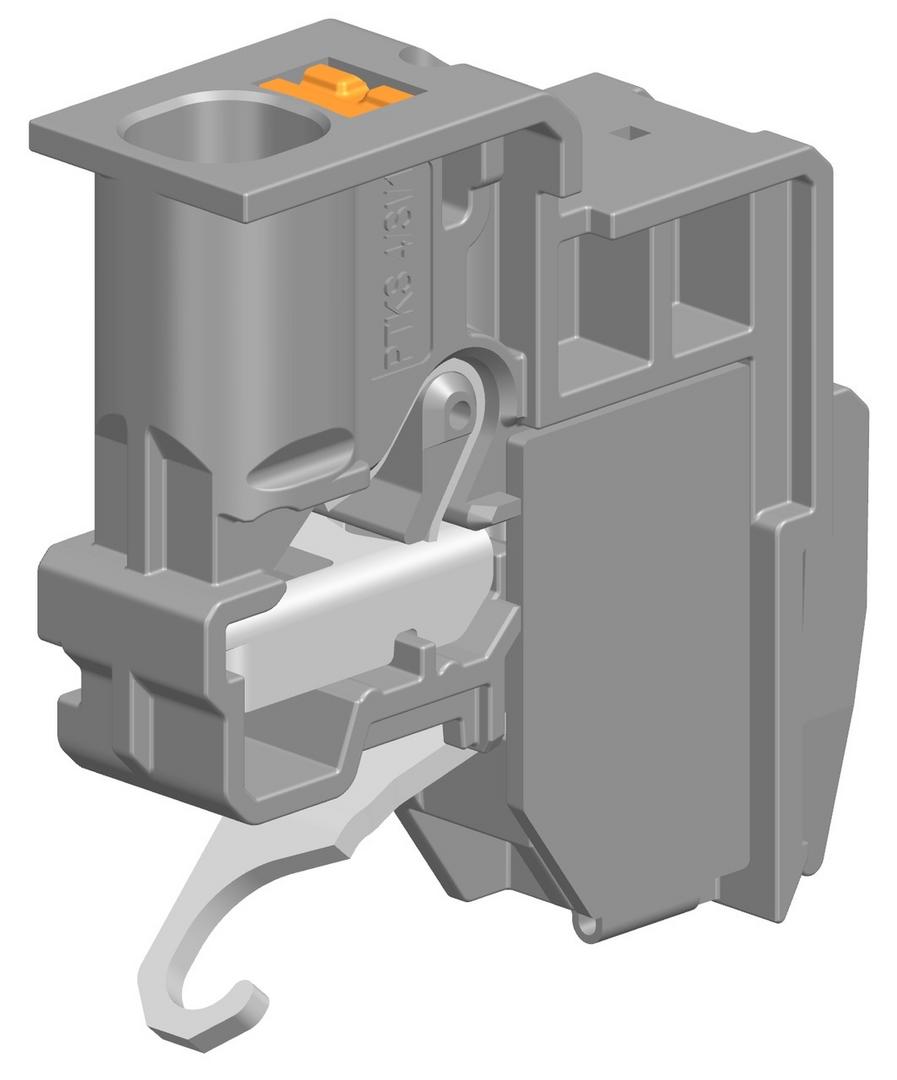

PTKS 4/SI/1 GR
Colour: Grey · Connection principle: Push-in connection · Rated cross-section: 4 mm²
27094.6
PTKS 4/SI/1/SR GR
Colour: Grey · Connection principle: Push-in connection · Rated cross-section: 4 mm²
Specification table
29| Article no. | Type | Colour | Connection principle | Rated cross-section | Rated current |
|---|---|---|---|---|---|
| 27080.4 | PTKS 4/1 BK | Black | Push-in connection | 4 mm² | 32 A |
| ★27080.6 | PTKS 4/1 GR | Grey | Push-in connection | 4 mm² | 32 A |
| 27080.8 | PTKS 4/1 GNYE | Green-yellow | Push-in connection | 4 mm² | 32 A |
| 27081.4 | PTKS 4/2 BK | Black | Push-in connection | 4 mm² | 32 A |
| ★27081.6 | PTKS 4/2 GR | Grey | Push-in connection | 4 mm² | 32 A |
| 27082.3 | PTKS-ADH 4/2 OG | Orange | – | – | – |
| 27082.4 | PTKS-ADH 4/2 BK | Black | – | – | – |
| ★27082.6 | PTKS-ADH 4/2 GR | Grey | – | – | – |
| 27083.3 | PTKS-ADH 4/3 OG | Orange | – | – | – |
| 27083.4 | PTKS-ADH 4/3 BK | Black | – | – | – |
| ★27083.6 | PTKS-ADH 4/3 GR | Grey | – | – | – |
| ★27084.9 | PQI 4/2/PTKS RD | Red | – | 4 mm² | 32 A |
| ★27085.9 | PQI 4/3/PTKS RD | Red | – | 4 mm² | 32 A |
| ★27086.9 | PQI 4/5/PTKS RD | Red | – | 4 mm² | 32 A |
| 27087.4 | PTKS 4/SI 5x20 BK | Black | Push-in connection | 4 mm² | 10 A |
| ★27087.6 | PTKS 4/SI 5x20 GR | Grey | Push-in connection | 4 mm² | 10 A |
| 27088.4 | PTKS 4/SI 6,3x32 BK | Black | Push-in connection | 4 mm² | 10 A |
| ★27088.6 | PTKS 4/SI 6,3x32 GR | Grey | Push-in connection | 4 mm² | 10 A |
| 27089.3 | PTKS-ADH 4/SI 5x20 OG | Orange | – | – | – |
| 27089.4 | PTKS-ADH 4/SI 5x20 BK | Black | – | – | – |
| ★27089.6 | PTKS-ADH 4/SI 5x20 GR | Grey | – | – | – |
| 27090.3 | PTKS-ADH 4/SI 6,3x32 OG | Orange | – | – | – |
| 27090.4 | PTKS-ADH 4/SI 6,3x32 BK | Black | – | – | – |
| ★27090.6 | PTKS-ADH 4/SI 6,3x32 GR | Grey | – | – | – |
| 27091.4 | PTKS 4/SI/1 BK | Black | Push-in connection | 4 mm² | 32 A |
| ★27091.6 | PTKS 4/SI/1 GR | Grey | Push-in connection | 4 mm² | 32 A |
| 27091.8 | PTKS 4/SI/1 GNYE | Green-Yellow | Push-in connection | 4 mm² | 32 A |
| ★27094.6 | PTKS 4/SI/1/SR GR | Grey | Push-in connection | 4 mm² | 32 A |
| 27094.8 | PTKS 4/SI/1/SR GNYE | Green-Yellow | Push-in connection | 4 mm² | 32 A |
