Cross-connections
Querverbindungen · Cross-connections
Type
59 / 59Featured models from each series. Key articles are also marked ★ in the table below.
27084.9
PQI 4/2/PTKS RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27085.9
PQI 4/3/PTKS RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27086.9
PQI 4/5/PTKS RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27122.9
PQI 1,5/2 RD
Colour: Red · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
27123.9
PQI 1,5/3 RD
Colour: Red · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
27124.9
PQI 1,5/4 RD
Colour: Red · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
27125.9
PQI 1,5/5 RD
Colour: Red · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
27129.9
PQI 1,5/9 RD
Colour: Red · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
27130.9
PQI 1,5/10 RD
Colour: Red · Rated cross-section: 1.5 mm² · Rated current: 17.5 A

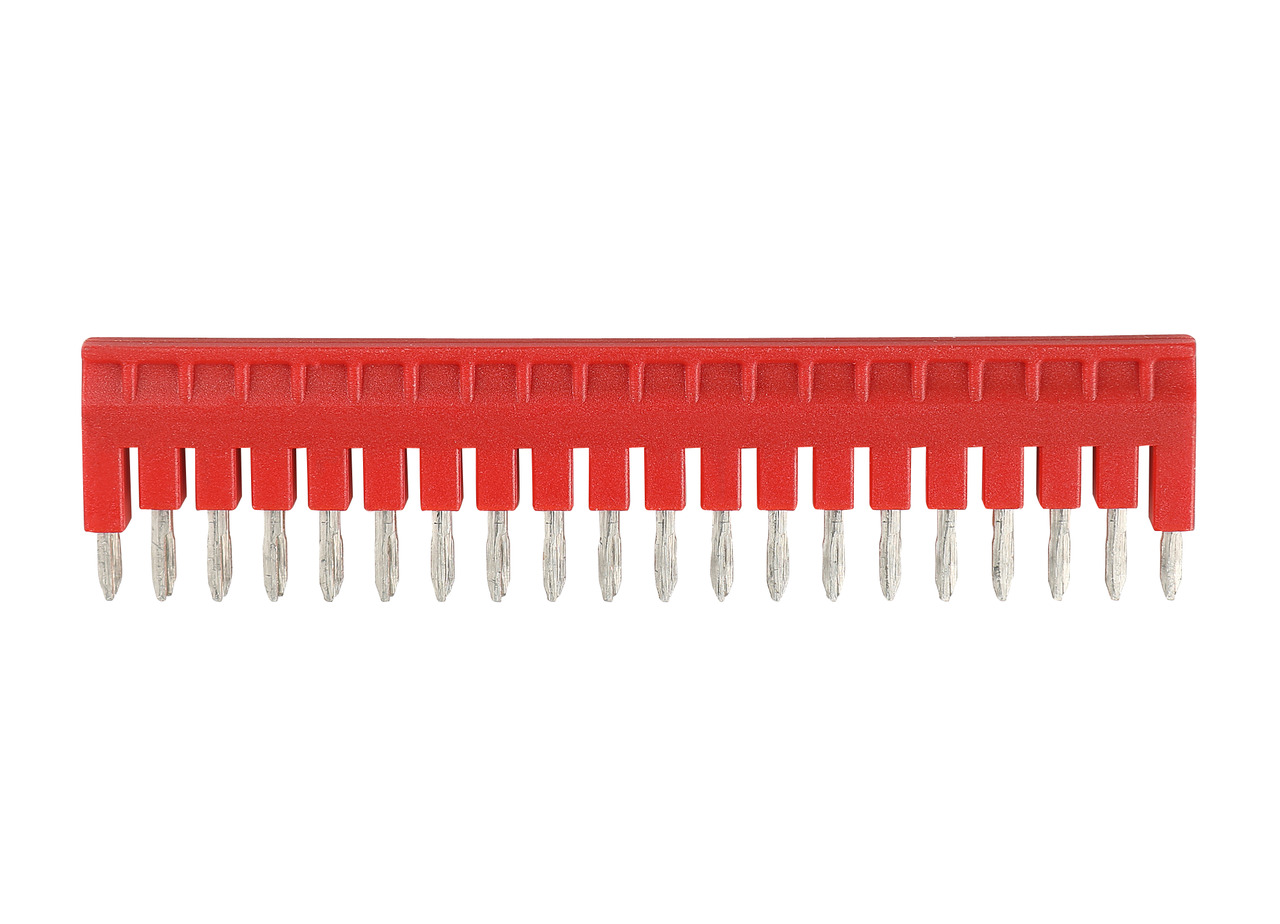

27131.9
PQI 1,5/20 RD
Colour: Red · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
27132.9
PQI 2,5/2 RD
Colour: Red · Rated cross-section: 2.5 mm² · Rated current: 24 A
27133.9
PQI 2,5/3 RD
Colour: Red · Rated cross-section: 2.5 mm² · Rated current: 24 A

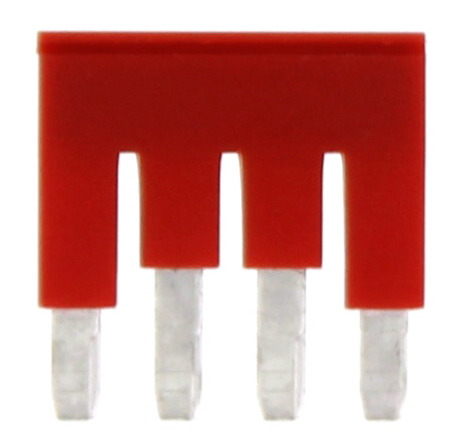

27134.9
PQI 2,5/4 RD
Colour: Red · Rated cross-section: 2.5 mm² · Rated current: 24 A
27140.9
PQI 2,5/10 RD
Colour: Red · Rated cross-section: 2.5 mm² · Rated current: 24 A
27141.9
PQI 2,5/20 RD
Colour: Red · Rated cross-section: 2.5 mm² · Rated current: 24 A
27142.9
PQI 4/2 RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A

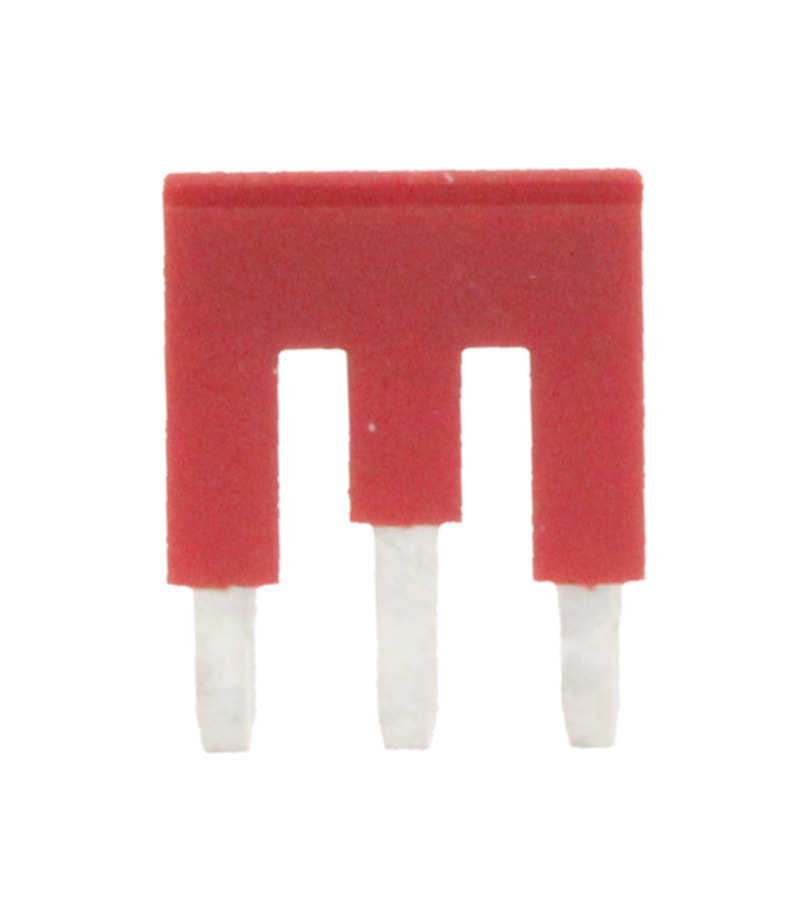

27143.9
PQI 4/3 RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27144.9
PQI 4/4 RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27150.9
PQI 4/10 RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27151.9
PQI 4/20 RD
Colour: Red · Rated cross-section: 4 mm² · Rated current: 32 A
27152.9
PQI 6/2 RD
Colour: Red · Rated cross-section: 6 mm² · Rated current: 41 A

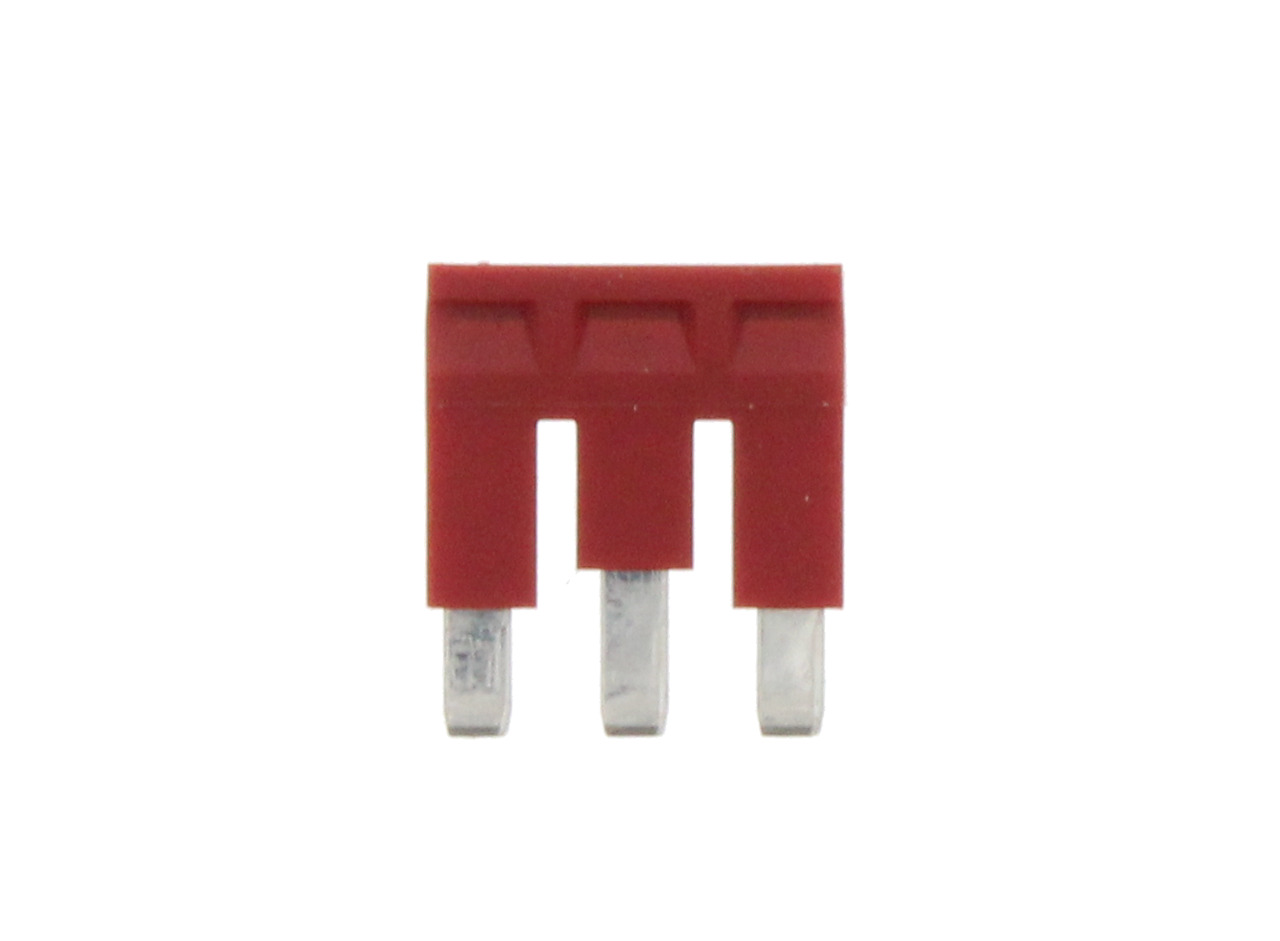

27153.9
PQI 6/3 RD
Colour: Red · Rated cross-section: 6 mm² · Rated current: 41 A

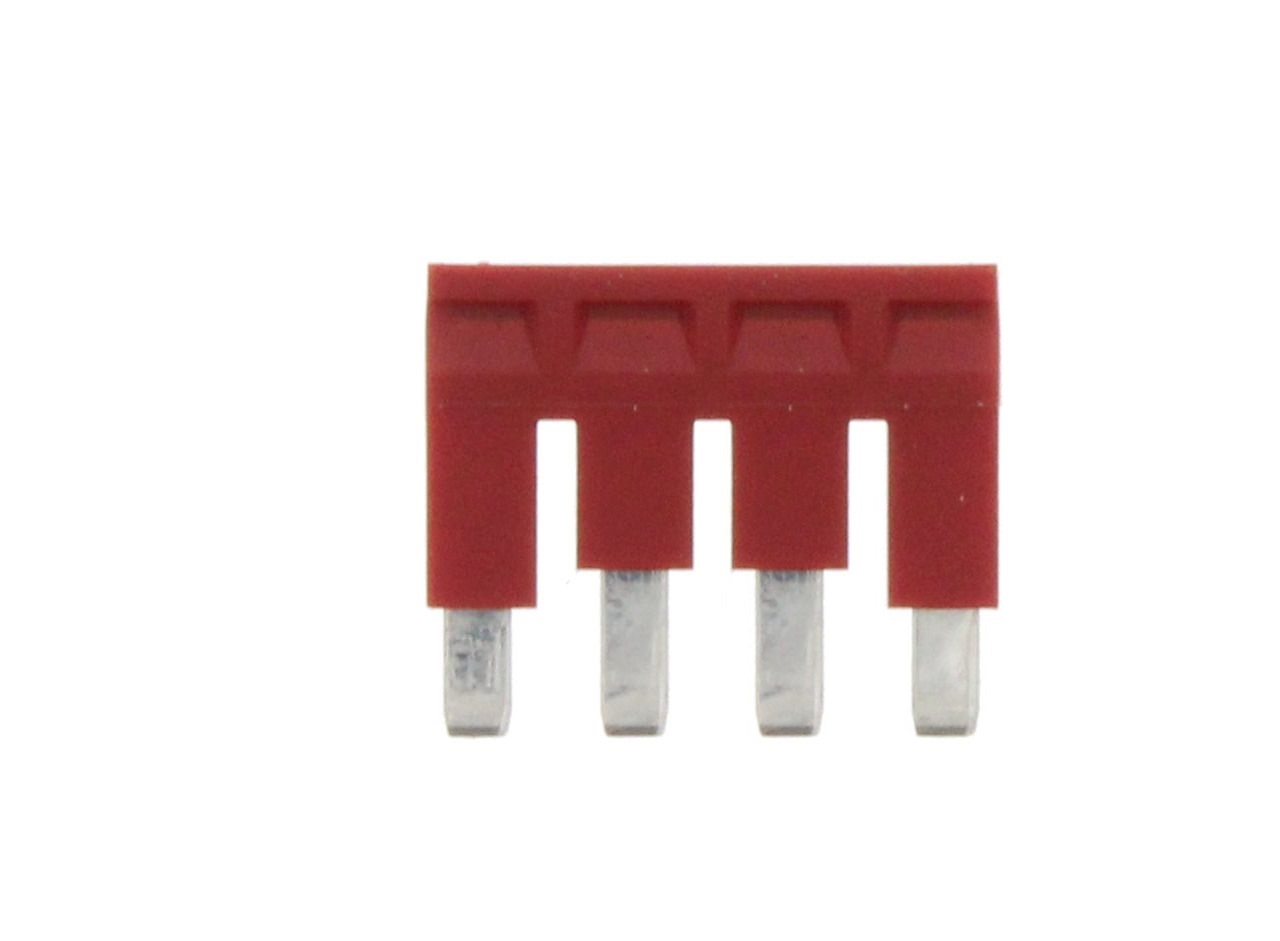

27154.9
PQI 6/4 RD
Colour: Red · Rated cross-section: 6 mm² · Rated current: 41 A
27160.9
PQI 6/10 RD
Colour: Red · Rated cross-section: 6 mm² · Rated current: 41 A

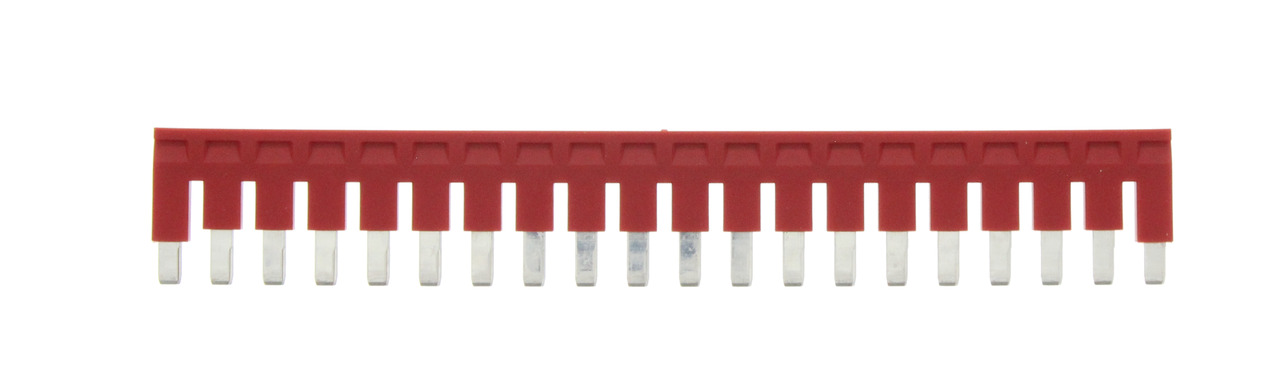

27161.9
PQI 6/20 RD
Colour: Red · Rated cross-section: 6 mm² · Rated current: 41 A
27162.9
PQI 10/2 RD
Colour: Red · Rated cross-section: 10 mm² · Rated current: 57 A
27163.9
PQI 10/3 RD
Colour: Red · Rated cross-section: 10 mm² · Rated current: 57 A

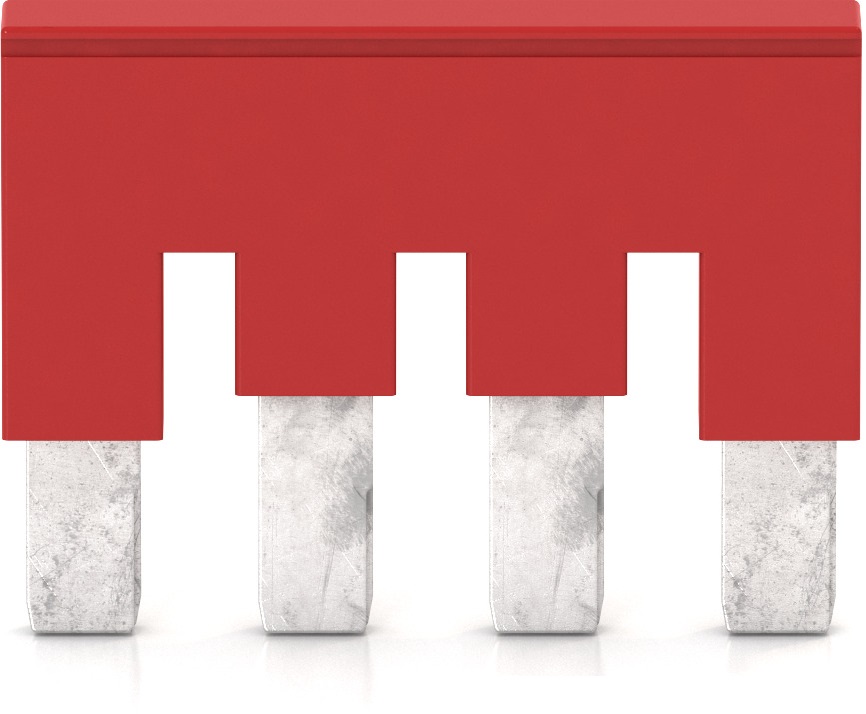

27164.9
PQI 10/4 RD
Colour: Red · Rated cross-section: 10 mm² · Rated current: 57 A

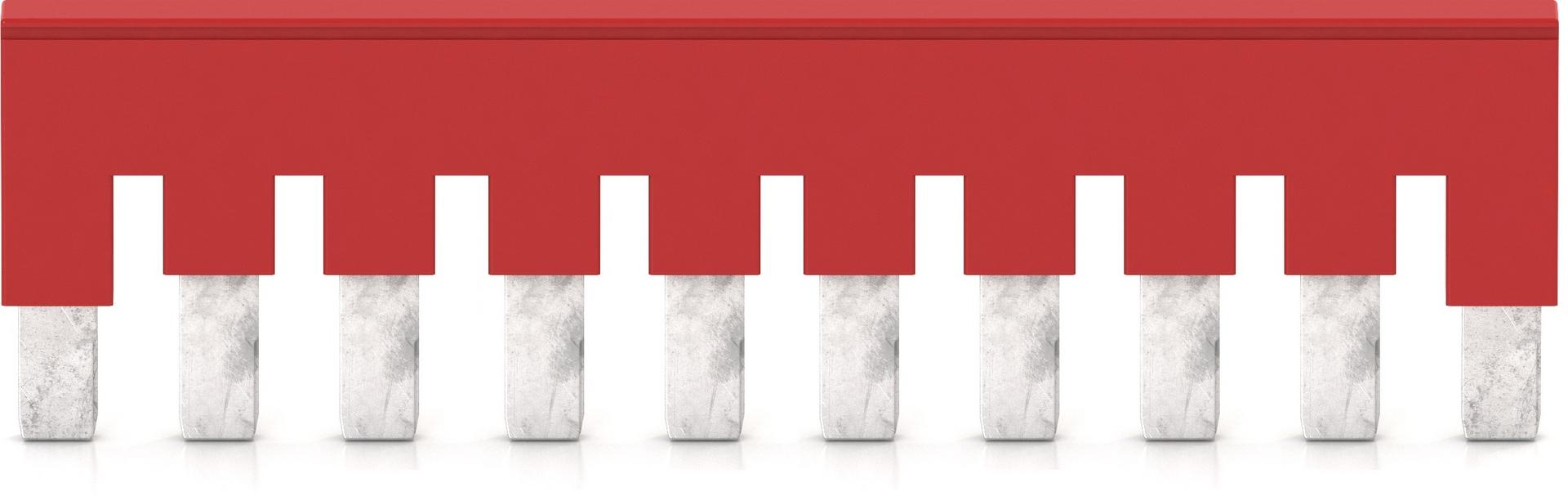

27170.9
PQI 10/10 RD
Colour: Red · Rated cross-section: 10 mm² · Rated current: 57 A

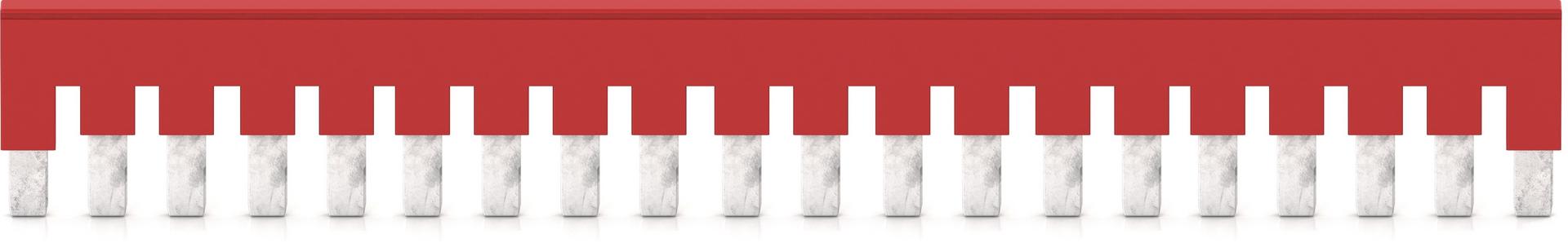

27171.9
PQI 10/20 RD
Colour: Red · Rated cross-section: 10 mm² · Rated current: 57 A
27172.9
PQI 16/2 RD
Colour: Red · Rated cross-section: 16 mm² · Rated current: 75 A
Specification table
59| Article no. | Type | Colour | Rated cross-section | Rated current | No. of poles |
|---|---|---|---|---|---|
| ★27084.9 | PQI 4/2/PTKS RD | Red | 4 mm² | 32 A | 2 |
| ★27085.9 | PQI 4/3/PTKS RD | Red | 4 mm² | 32 A | 3 |
| ★27086.9 | PQI 4/5/PTKS RD | Red | 4 mm² | 32 A | 5 |
| 27122.5 | PQI 1,5/2 BU | Blue | 1.5 mm² | 17.5 A | 2 |
| ★27122.9 | PQI 1,5/2 RD | Red | 1.5 mm² | 17.5 A | 2 |
| 27123.5 | PQI 1,5/3 BU | Blue | 1.5 mm² | 17.5 A | 3 |
| ★27123.9 | PQI 1,5/3 RD | Red | 1.5 mm² | 17.5 A | 3 |
| 27124.5 | PQI 1,5/4 BU | Blue | 1.5 mm² | 17.5 A | 4 |
| ★27124.9 | PQI 1,5/4 RD | Red | 1.5 mm² | 17.5 A | 4 |
| 27125.5 | PQI 1,5/5 BU | Blue | 1.5 mm² | 17.5 A | 5 |
| ★27125.9 | PQI 1,5/5 RD | Red | 1.5 mm² | 17.5 A | 5 |
| 27129.5 | PQI 1,5/9 BU | Blue | 1.5 mm² | 17.5 A | 9 |
| ★27129.9 | PQI 1,5/9 RD | Red | 1.5 mm² | 17.5 A | 9 |
| 27130.5 | PQI 1,5/10 BU | Blue | 1.5 mm² | 17.5 A | 10 |
| ★27130.9 | PQI 1,5/10 RD | Red | 1.5 mm² | 17.5 A | 10 |
| 27131.5 | PQI 1,5/20 BU | Blue | 1.5 mm² | 17.5 A | 20 |
| ★27131.9 | PQI 1,5/20 RD | Red | 1.5 mm² | 17.5 A | 20 |
| 27132.5 | PQI 2,5/2 BU | Blue | 2.5 mm² | 24 A | 2 |
| ★27132.9 | PQI 2,5/2 RD | Red | 2.5 mm² | 24 A | 2 |
| 27133.5 | PQI 2,5/3 BU | Blue | 2.5 mm² | 24 A | 3 |
| ★27133.9 | PQI 2,5/3 RD | Red | 2.5 mm² | 24 A | 3 |
| 27134.5 | PQI 2,5/4 BU | Blue | 2.5 mm² | 24 A | 4 |
| ★27134.9 | PQI 2,5/4 RD | Red | 2.5 mm² | 24 A | 4 |
| 27140.5 | PQI 2,5/10 BU | Blue | 2.5 mm² | 24 A | 10 |
| ★27140.9 | PQI 2,5/10 RD | Red | 2.5 mm² | 24 A | 10 |
| 27141.5 | PQI 2,5/20 BU | Blue | 2.5 mm² | 24 A | 20 |
| ★27141.9 | PQI 2,5/20 RD | Red | 2.5 mm² | 24 A | 20 |
| 27142.5 | PQI 4/2 BU | Blue | 4 mm² | 32 A | 2 |
| ★27142.9 | PQI 4/2 RD | Red | 4 mm² | 32 A | 2 |
| 27143.5 | PQI 4/3 BU | Blue | 4 mm² | 32 A | 3 |
| ★27143.9 | PQI 4/3 RD | Red | 4 mm² | 32 A | 3 |
| 27144.5 | PQI 4/4 BU | Blue | 4 mm² | 32 A | 4 |
| ★27144.9 | PQI 4/4 RD | Red | 4 mm² | 32 A | 4 |
| 27150.5 | PQI 4/10 BU | Blue | 4 mm² | 32 A | 10 |
| ★27150.9 | PQI 4/10 RD | Red | 4 mm² | 32 A | 10 |
| 27151.5 | PQI 4/20 BU | Blue | 4 mm² | 32 A | 20 |
| ★27151.9 | PQI 4/20 RD | Red | 4 mm² | 32 A | 20 |
| 27152.5 | PQI 6/2 BU | Blue | 6 mm² | 41 A | 2 |
| ★27152.9 | PQI 6/2 RD | Red | 6 mm² | 41 A | 2 |
| 27153.5 | PQI 6/3 BU | Blue | 6 mm² | 41 A | 3 |
| ★27153.9 | PQI 6/3 RD | Red | 6 mm² | 41 A | 3 |
| 27154.5 | PQI 6/4 BU | Blue | 6 mm² | 41 A | 4 |
| ★27154.9 | PQI 6/4 RD | Red | 6 mm² | 41 A | 4 |
| 27160.5 | PQI 6/10 BU | Blue | 6 mm² | 41 A | 10 |
| ★27160.9 | PQI 6/10 RD | Red | 6 mm² | 41 A | 10 |
| 27161.5 | PQI 6/20 BU | Blue | 6 mm² | 41 A | 20 |
| ★27161.9 | PQI 6/20 RD | Red | 6 mm² | 41 A | 20 |
| 27162.5 | PQI 10/2 BU | Blue | 10 mm² | 57 A | 2 |
| ★27162.9 | PQI 10/2 RD | Red | 10 mm² | 57 A | 2 |
| 27163.5 | PQI 10/3 BU | Blue | 10 mm² | 57 A | 3 |
| ★27163.9 | PQI 10/3 RD | Red | 10 mm² | 57 A | 3 |
| 27164.5 | PQI 10/4 BU | Blue | 10 mm² | 57 A | 4 |
| ★27164.9 | PQI 10/4 RD | Red | 10 mm² | 57 A | 4 |
| 27170.5 | PQI 10/10 BU | Blue | 10 mm² | 57 A | 10 |
| ★27170.9 | PQI 10/10 RD | Red | 10 mm² | 57 A | 10 |
| 27171.5 | PQI 10/20 BU | Blue | 10 mm² | 57 A | 20 |
| ★27171.9 | PQI 10/20 RD | Red | 10 mm² | 57 A | 20 |
| 27172.5 | PQI 16/2 BU | Blue | 16 mm² | 75 A | 2 |
| ★27172.9 | PQI 16/2 RD | Red | 16 mm² | 75 A | 2 |
