End panels
Abschlussplatten · End panels
Type
120 / 120Featured models from each series. Key articles are also marked ★ in the table below.
27082.6
PTKS-ADH 4/2 GR
Colour: Grey · Width: 15 mm
27083.6
PTKS-ADH 4/3 GR
Colour: Grey · Width: 23.1 mm
27089.6
PTKS-ADH 4/SI 5x20 GR
Colour: Grey · Width: 12.5 mm
27090.6
PTKS-ADH 4/SI 6,3x32 GR
Colour: Grey · Width: 12.5 mm
27092.3
PTKS-ADH 4/SI/1 OG
Colour: Orange · Width: 10 mm
27092.4
PTKS-ADH 4/SI/1 BK
Colour: Black · Width: 10 mm
27092.6
PTKS-ADH 4/SI/1 GR
Colour: Grey · Width: 10 mm
27092.8
PTKS-ADH 4/SI/1 GNYE
Colour: Green-Yellow · Width: 10 mm
27093.3
TW PTKS OG
Colour: Orange · Width: 7.5 mm
27093.6

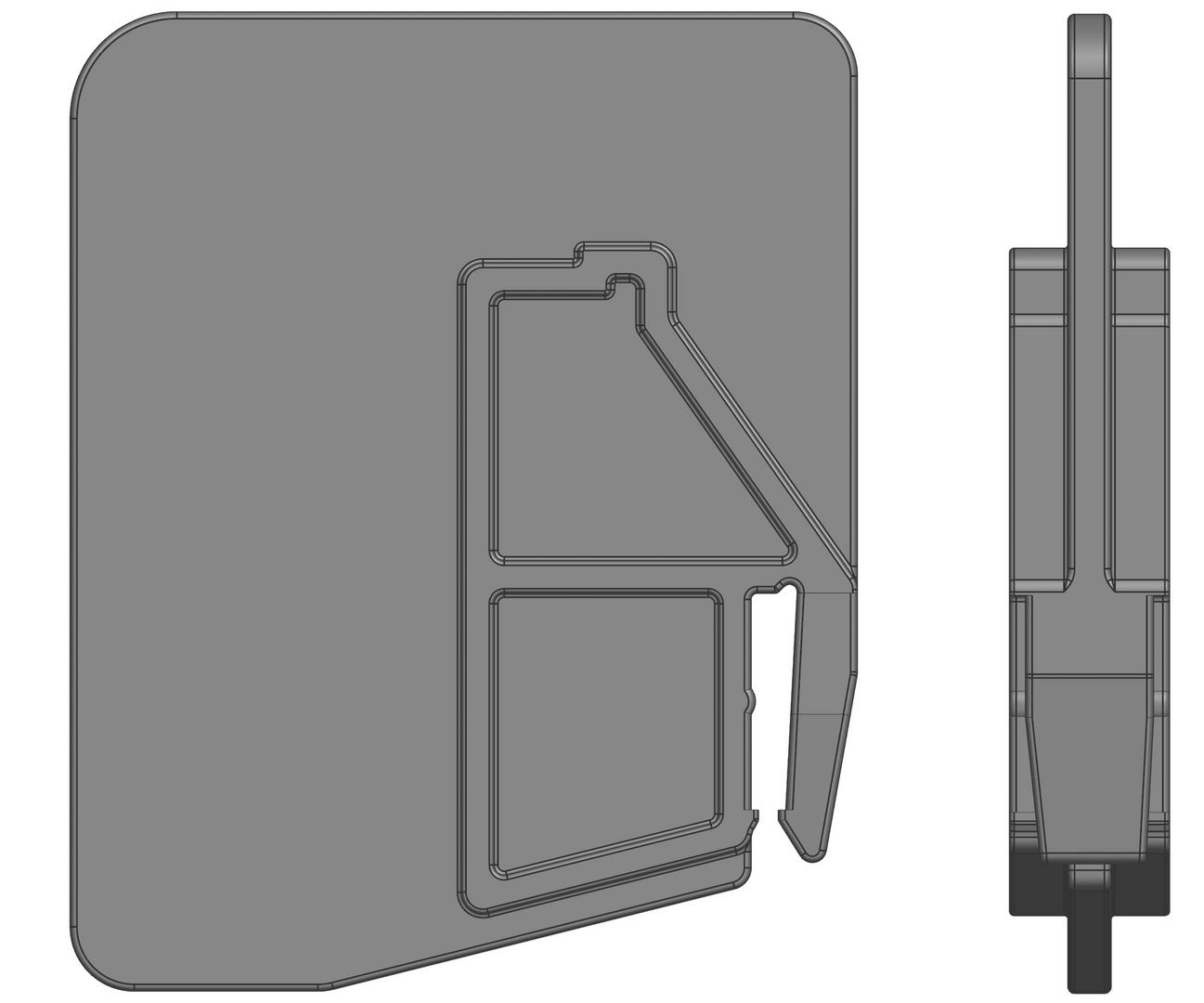

TW PTKS GR
Colour: Grey · Width: 7.5 mm
27100.6
PAP 1,5/2A GR
Colour: Grey · Width: 1.5 mm
27101.6

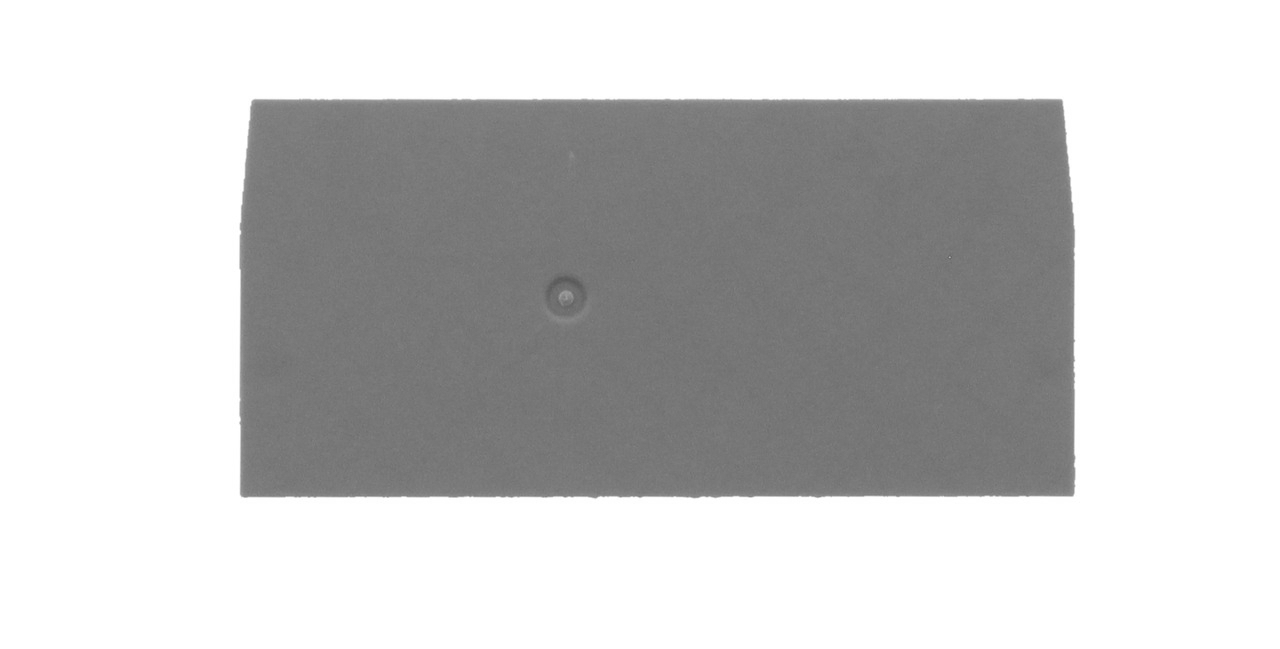

PAP 1,5/3A GR
Colour: Grey · Width: 1.5 mm
27102.6
PAP 1,5/4A GR
Colour: Grey · Width: 1.5 mm
27103.6
PAP 2,5/2A GR
Colour: Grey · Width: 1.5 mm
27104.6

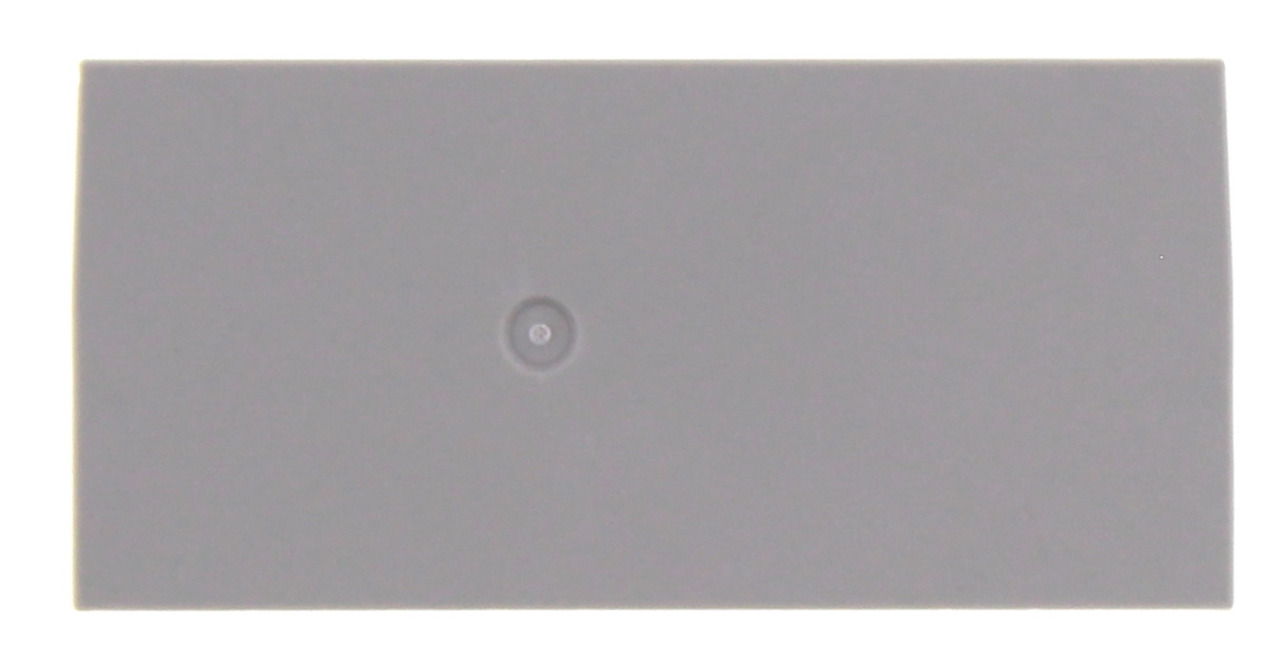

PAP 2,5/3A GR
Colour: Grey · Width: 1.5 mm
27105.6
PAP 2,5/4A GR
Colour: Grey · Width: 1.5 mm
27106.6
PAP 4/2A GR
Colour: Grey · Width: 1.5 mm
27107.6
PAP 4/3A GR
Colour: Grey · Width: 1.5 mm
27108.6

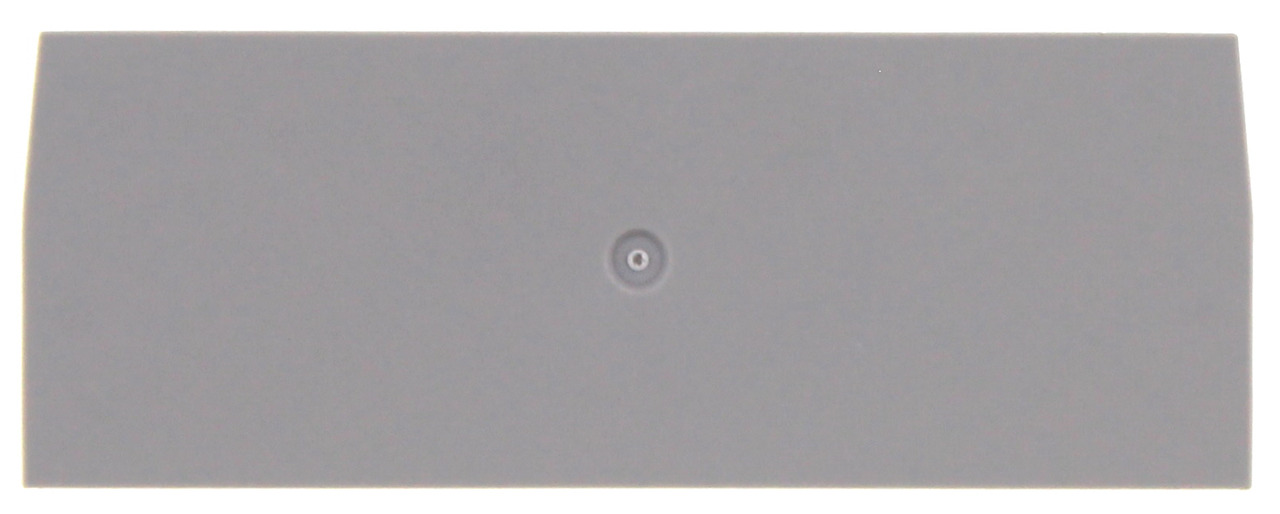

PAP 4/4A GR
Colour: Grey · Width: 1.5 mm
27109.6
PAP 6/2A GR
Colour: Grey · Width: 1.5 mm
27110.6
PAP 6/3A GR
Colour: Grey · Width: 1.5 mm
27111.6
PAP 6/4A GR
Colour: Grey · Width: 1.5 mm
27115.6
PAP 16/2A GR
Colour: Grey · Width: 1.5 mm
27116.6

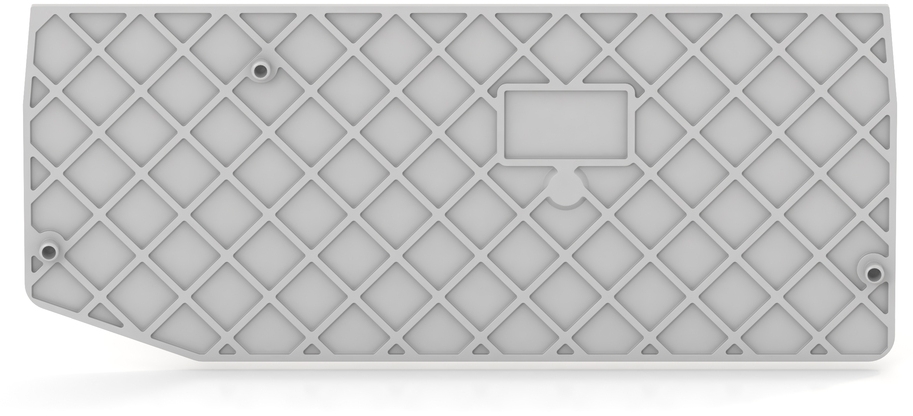

PAP 16/3A GR
Colour: Grey · Width: 1.5 mm
27117.6

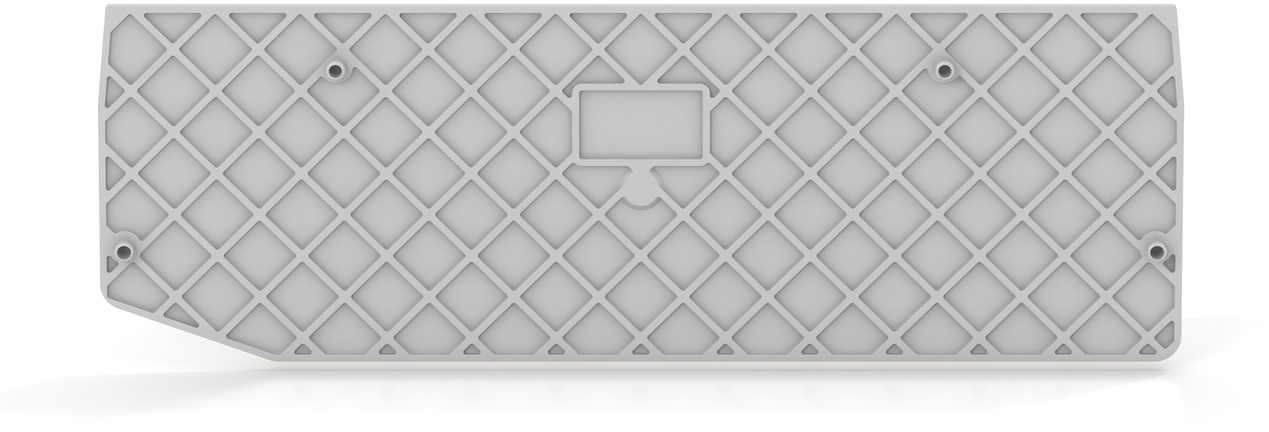

PAP 16/4A GR
Colour: Grey · Width: 1.5 mm
27118.6
PAPD 2,5 GR
Colour: Grey · Width: 1.5 mm
27119.6
PAPIKD 2,5 GR
Colour: Grey · Width: 1.5 mm
27120.6
PAPVMAK 2,5 GR
Colour: Grey · Width: 1.5 mm
27121.6
PAPIKD/1 2,5 GR
Colour: Grey · Width: 1.5 mm
27173.6
PAPVK 1,5/6A GR
Colour: Grey · Width: 1.5 mm
27178.6
PAPD 4 GR
Colour: Grey · Width: 1.5 mm
27179.6
PAPD 4/3A GR
Colour: Grey · Width: 1.5 mm
27180.6
PAPVK 1,5/2x3A GR
Colour: Grey · Width: 1.5 mm
27181.6
PAPM 2,5/2A GR
Colour: Grey · Width: 1.5 mm
Specification table
120| Article no. | Type | Colour | Width | Length | Material |
|---|---|---|---|---|---|
| 27082.3 | PTKS-ADH 4/2 OG | Orange | 15 mm | 27.7 mm | Polyamide 6.6 |
| 27082.4 | PTKS-ADH 4/2 BK | Black | 15 mm | 27.7 mm | Polyamide 6.6 |
| ★27082.6 | PTKS-ADH 4/2 GR | Grey | 15 mm | 27.7 mm | Polyamide 6.6 |
| 27083.3 | PTKS-ADH 4/3 OG | Orange | 23.1 mm | 27.7 mm | Polyamide 6.6 |
| 27083.4 | PTKS-ADH 4/3 BK | Black | 23.1 mm | 27.7 mm | Polyamide 6.6 |
| ★27083.6 | PTKS-ADH 4/3 GR | Grey | 23.1 mm | 27.7 mm | Polyamide 6.6 |
| 27089.3 | PTKS-ADH 4/SI 5x20 OG | Orange | 12.5 mm | 32.5 mm | Polyamide 6.6 |
| 27089.4 | PTKS-ADH 4/SI 5x20 BK | Black | 12.5 mm | 32.5 mm | Polyamide 6.6 |
| ★27089.6 | PTKS-ADH 4/SI 5x20 GR | Grey | 12.5 mm | 32.5 mm | Polyamide 6.6 |
| 27090.3 | PTKS-ADH 4/SI 6,3x32 OG | Orange | 12.5 mm | 32.5 mm | Polyamide 6.6 |
| 27090.4 | PTKS-ADH 4/SI 6,3x32 BK | Black | 12.5 mm | 32.5 mm | Polyamide 6.6 |
| ★27090.6 | PTKS-ADH 4/SI 6,3x32 GR | Grey | 12.5 mm | 32.5 mm | Polyamide 6.6 |
| 27092.3 | PTKS-ADH 4/SI/1 OG | Orange | 10 mm | 32.5 mm | Polyamide 6.6 |
| 27092.4 | PTKS-ADH 4/SI/1 BK | Black | 10 mm | 32.5 mm | Polyamide 6.6 |
| ★27092.6 | PTKS-ADH 4/SI/1 GR | Grey | 10 mm | 32.5 mm | Polyamide 6.6 |
| 27092.8 | PTKS-ADH 4/SI/1 GNYE | Green-Yellow | 10 mm | 32.5 mm | Polyamide 6.6 |
| 27093.3 | TW PTKS OG | Orange | 7.5 mm | 37 mm | Polyamide 6.6 |
| ★27093.6 | TW PTKS GR | Grey | 7.5 mm | 37 mm | Polyamide 6.6 |
| 27100.1 | PAP 1,5/2A GN | Green | 1.5 mm | 45 mm | Polyamide 6.6 |
| 27100.3 | PAP 1,5/2A OG | Orange | 1.5 mm | 45 mm | Polyamide 6.6 |
| 27100.5 | PAP 1,5/2A BU | Blue | 1.5 mm | 45 mm | Polyamide 6.6 |
| ★27100.6 | PAP 1,5/2A GR | Grey | 1.5 mm | 45 mm | Polyamide 6.6 |
| 27101.1 | PAP 1,5/3A GN | Green | 1.5 mm | 54.1 mm | Polyamide 6.6 |
| 27101.3 | PAP 1,5/3A OG | Orange | 1.5 mm | 54.1 mm | Polyamide 6.6 |
| 27101.5 | PAP 1,5/3A BU | Blue | 1.5 mm | 54.1 mm | Polyamide 6.6 |
| ★27101.6 | PAP 1,5/3A GR | Grey | 1.5 mm | 54.1 mm | Polyamide 6.6 |
| 27102.1 | PAP 1,5/4A GN | Green | 1.5 mm | 63.2 mm | Polyamide 6.6 |
| 27102.3 | PAP 1,5/4A OG | Orange | 1.5 mm | 63.2 mm | Polyamide 6.6 |
| 27102.5 | PAP 1,5/4A BU | Blue | 1.5 mm | 63.2 mm | Polyamide 6.6 |
| ★27102.6 | PAP 1,5/4A GR | Grey | 1.5 mm | 63.2 mm | Polyamide 6.6 |
| 27103.1 | PAP 2,5/2A GN | Green | 1.5 mm | 48.5 mm | Polyamide 6.6 |
| 27103.3 | PAP 2,5/2A OG | Orange | 1.5 mm | 48.5 mm | Polyamide 6.6 |
| 27103.5 | PAP 2,5/2A BU | Blue | 1.5 mm | 48.5 mm | Polyamide 6.6 |
| ★27103.6 | PAP 2,5/2A GR | Grey | 1.5 mm | 48.5 mm | Polyamide 6.6 |
| 27103.9 | PAP 2,5/2A RD | Red | 1.5 mm | 48.5 mm | Polyamide 6.6 |
| 27104.1 | PAP 2,5/3A GN | Green | 1.5 mm | 60.4 mm | Polyamide 6.6 |
| 27104.3 | PAP 2,5/3A OG | Orange | 1.5 mm | 60.4 mm | Polyamide 6.6 |
| 27104.5 | PAP 2,5/3A BU | Blue | 1.5 mm | 60.4 mm | Polyamide 6.6 |
| ★27104.6 | PAP 2,5/3A GR | Grey | 1.5 mm | 60.4 mm | Polyamide 6.6 |
| 27105.1 | PAP 2,5/4A GN | Green | 1.5 mm | 72.2 mm | Polyamide 6.6 |
| 27105.3 | PAP 2,5/4A OG | Orange | 1.5 mm | 72.2 mm | Polyamide 6.6 |
| 27105.5 | PAP 2,5/4A BU | Blue | 1.5 mm | 72.2 mm | Polyamide 6.6 |
| ★27105.6 | PAP 2,5/4A GR | Grey | 1.5 mm | 72.2 mm | Polyamide 6.6 |
| 27106.1 | PAP 4/2A GN | Green | 1.5 mm | 56 mm | Polyamide 6.6 |
| 27106.3 | PAP 4/2A OG | Orange | 1.5 mm | 56 mm | Polyamide 6.6 |
| 27106.5 | PAP 4/2A BU | Blue | 1.5 mm | 56 mm | Polyamide 6.6 |
| ★27106.6 | PAP 4/2A GR | Grey | 1.5 mm | 56 mm | Polyamide 6.6 |
| 27107.1 | PAP 4/3A GN | Green | 1.5 mm | 66.5 mm | Polyamide 6.6 |
| 27107.3 | PAP 4/3A OG | Orange | 1.5 mm | 66.5 mm | Polyamide 6.6 |
| 27107.5 | PAP 4/3A BU | Blue | 1.5 mm | 66.5 mm | Polyamide 6.6 |
| ★27107.6 | PAP 4/3A GR | Grey | 1.5 mm | 66.5 mm | Polyamide 6.6 |
| 27108.1 | PAP 4/4A GN | Green | 1.5 mm | 77 mm | Polyamide 6.6 |
| 27108.3 | PAP 4/4A OG | Orange | 1.5 mm | 77 mm | Polyamide 6.6 |
| 27108.5 | PAP 4/4A BU | Blue | 1.5 mm | 77 mm | Polyamide 6.6 |
| ★27108.6 | PAP 4/4A GR | Grey | 1.5 mm | 77 mm | Polyamide 6.6 |
| 27109.1 | PAP 6/2A GN | Green | 1.5 mm | 57.7 mm | Polyamide 6.6 |
| 27109.3 | PAP 6/2A OG | Orange | 1.5 mm | 57.7 mm | Polyamide 6.6 |
| 27109.4 | PAP 6/2A BK | Black | 1.5 mm | 57.7 mm | Polyamide 6.6 |
| 27109.5 | PAP 6/2A BU | Blue | 1.5 mm | 57.7 mm | Polyamide 6.6 |
| ★27109.6 | PAP 6/2A GR | Grey | 1.5 mm | 57.7 mm | Polyamide 6.6 |
| 27109.9 | PAP 6/2A RD | Red | 1.5 mm | 57.7 mm | Polyamide 6.6 |
| 27110.1 | PAP 6/3A GN | Green | 1.5 mm | 74.1 mm | Polyamide 6.6 |
| 27110.3 | PAP 6/3A OG | Orange | 1.5 mm | 74.1 mm | Polyamide 6.6 |
| 27110.5 | PAP 6/3A BU | Blue | 1.5 mm | 74.1 mm | Polyamide 6.6 |
| ★27110.6 | PAP 6/3A GR | Grey | 1.5 mm | 74.1 mm | Polyamide 6.6 |
| 27111.1 | PAP 6/4A GN | Green | 1.5 mm | 90.4 mm | Polyamide 6.6 |
| 27111.3 | PAP 6/4A OG | Orange | 1.5 mm | 90.4 mm | Polyamide 6.6 |
| 27111.5 | PAP 6/4A BU | Blue | 1.5 mm | 90.4 mm | Polyamide 6.6 |
| ★27111.6 | PAP 6/4A GR | Grey | 1.5 mm | 90.4 mm | Polyamide 6.6 |
| 27112.1 | PAP 10/2A GN | Green | 1.5 mm | 67.8 mm | Polyamide 6.6 |
| 27112.3 | PAP 10/2A OG | Orange | 1.5 mm | 67.8 mm | Polyamide 6.6 |
| 27112.5 | PAP 10/2A BU | Blue | 1.5 mm | 67.8 mm | Polyamide 6.6 |
| ★27112.6 | PAP 10/2A GR | Grey | 1.5 mm | 67.8 mm | Polyamide 6.6 |
| 27113.1 | PAP 10/3A GN | Green | 1.5 mm | 88.9 mm | Polyamide 6.6 |
| 27113.3 | PAP 10/3A OG | Orange | 1.5 mm | 88.9 mm | Polyamide 6.6 |
| 27113.5 | PAP 10/3A BU | Blue | 1.5 mm | 88.9 mm | Polyamide 6.6 |
| ★27113.6 | PAP 10/3A GR | Grey | 1.5 mm | 88.9 mm | Polyamide 6.6 |
| 27114.1 | PAP 10/4A GN | Green | 1.5 mm | 110 mm | Polyamide 6.6 |
| 27114.3 | PAP 10/4A OG | Orange | 1.5 mm | 110 mm | Polyamide 6.6 |
| 27114.5 | PAP 10/4A BU | Blue | 1.5 mm | 110 mm | Polyamide 6.6 |
| ★27114.6 | PAP 10/4A GR | Grey | 1.5 mm | 110 mm | Polyamide 6.6 |
| 27115.1 | PAP 16/2A GN | Green | 1.5 mm | 75 mm | Polyamide 6.6 |
| 27115.3 | PAP 16/2A OG | Orange | 1.5 mm | 75 mm | Polyamide 6.6 |
| 27115.5 | PAP 16/2A BU | Blue | 1.5 mm | 75 mm | Polyamide 6.6 |
| ★27115.6 | PAP 16/2A GR | Grey | 1.5 mm | 75 mm | Polyamide 6.6 |
| 27116.1 | PAP 16/3A GN | Green | 1.5 mm | 98.2 mm | Polyamide 6.6 |
| 27116.3 | PAP 16/3A OG | Orange | 1.5 mm | 98.2 mm | Polyamide 6.6 |
| 27116.5 | PAP 16/3A BU | Blue | 1.5 mm | 98.2 mm | Polyamide 6.6 |
| ★27116.6 | PAP 16/3A GR | Grey | 1.5 mm | 98.2 mm | Polyamide 6.6 |
| 27117.1 | PAP 16/4A GN | Green | 1.5 mm | 123 mm | Polyamide 6.6 |
| 27117.3 | PAP 16/4A OG | Orange | 1.5 mm | 123 mm | Polyamide 6.6 |
| 27117.5 | PAP 16/4A BU | Blue | 1.5 mm | 123 mm | Polyamide 6.6 |
| ★27117.6 | PAP 16/4A GR | Grey | 1.5 mm | 123 mm | Polyamide 6.6 |
| 27118.1 | PAPD 2,5 GN | Green | 1.5 mm | 68.7 mm | Polyamide 6.6 |
| 27118.3 | PAPD 2,5 OG | Orange | 1.5 mm | 68.7 mm | Polyamide 6.6 |
| 27118.5 | PAPD 2,5 BU | Blue | 1.5 mm | 68.7 mm | Polyamide 6.6 |
| ★27118.6 | PAPD 2,5 GR | Grey | 1.5 mm | 68.7 mm | Polyamide 6.6 |
| 27119.1 | PAPIKD 2,5 GN | Green | 1.5 mm | 102 mm | Polyamide 6.6 |
| 27119.3 | PAPIKD 2,5 OG | Orange | 1.5 mm | 102 mm | Polyamide 6.6 |
| 27119.5 | PAPIKD 2,5 BU | Blue | 1.5 mm | 102 mm | Polyamide 6.6 |
| ★27119.6 | PAPIKD 2,5 GR | Grey | 1.5 mm | 102 mm | Polyamide 6.6 |
| ★27120.6 | PAPVMAK 2,5 GR | Grey | 1.5 mm | 99.5 mm | Polyamide 6.6 |
| 27121.1 | PAPIKD/1 2,5 GN | Green | 1.5 mm | 86 mm | Polyamide 6.6 |
| 27121.3 | PAPIKD/1 2,5 OG | Orange | 1.5 mm | 86 mm | Polyamide 6.6 |
| 27121.5 | PAPIKD/1 2,5 BU | Blue | 1.5 mm | 86 mm | Polyamide 6.6 |
| ★27121.6 | PAPIKD/1 2,5 GR | Grey | 1.5 mm | 86 mm | Polyamide 6.6 |
| ★27173.6 | PAPVK 1,5/6A GR | Grey | 1.5 mm | 86 mm | Polyamide 6.6 |
| 27178.1 | PAPD 4 GN | Green | 1.5 mm | 83 mm | Polyamide 6.6 |
| 27178.3 | PAPD 4 OG | Orange | 1.5 mm | 83 mm | Polyamide 6.6 |
| 27178.5 | PAPD 4 BU | Blue | 1.5 mm | 83 mm | Polyamide 6.6 |
| ★27178.6 | PAPD 4 GR | Grey | 1.5 mm | 83 mm | Polyamide 6.6 |
| 27179.1 | PAPD 4/3A GN | Green | 1.5 mm | 103 mm | Polyamide 6.6 |
| 27179.3 | PAPD 4/3A OG | Orange | 1.5 mm | 103 mm | Polyamide 6.6 |
| 27179.5 | PAPD 4/3A BU | Blue | 1.5 mm | 103 mm | Polyamide 6.6 |
| ★27179.6 | PAPD 4/3A GR | Grey | 1.5 mm | 103 mm | Polyamide 6.6 |
| ★27180.6 | PAPVK 1,5/2x3A GR | Grey | 1.5 mm | 100.5 mm | Polyamide 6.6 |
| 27181.1 | PAPM 2,5/2A GN | Green | 1.5 mm | 40 mm | Polyamide 6.6 |
| 27181.3 | PAPM 2,5/2A OG | Orange | 1.5 mm | 40 mm | Polyamide 6.6 |
| 27181.5 | PAPM 2,5/2A BU | Blue | 1.5 mm | 40 mm | Polyamide 6.6 |
| ★27181.6 | PAPM 2,5/2A GR | Grey | 1.5 mm | 40 mm | Polyamide 6.6 |
