Cross-connections
Querverbindungen · Cross-connections
Type
140 / 140Featured models from each series. Key articles are also marked ★ in the table below.
3450.8
FQI 1,5/10 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3452.8
FQI 1,5/2 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3453.8
FQI 1,5/3 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3454.8
FQI 1,5/4 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3455.8
FQI 1,5/5 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3456.8
FQI 1,5/6 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3457.8
FQI 1,5/7 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3458.8
FQI 1,5/8 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3459.8
FQI 1,5/9 YE
Colour: Yellow · Rated cross-section: 1.5 mm² · Rated current: 17.5 A
3460.8
FQI 2,5/10 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3461.8
FQI 2,5/50 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3462.8
FQI 2,5/2 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3463.8
FQI 2,5/3 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3464.8
FQI 2,5/4 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3465.8
FQI 2,5/5 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3466.8
FQI 2,5/6 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3467.8
FQI 2,5/7 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3468.8
FQI 2,5/8 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A

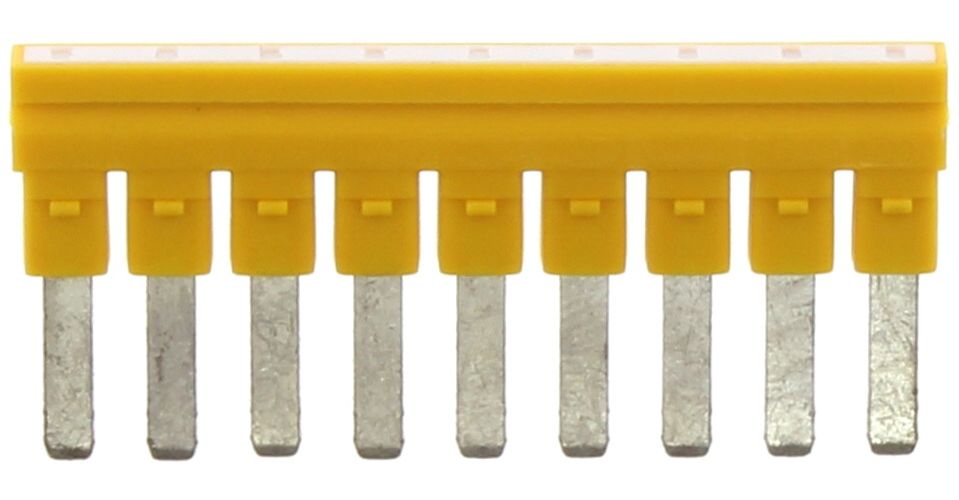

3469.8
FQI 2,5/9 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
3470.8
FQI 4/10 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
3472.8
FQI 4/2 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A

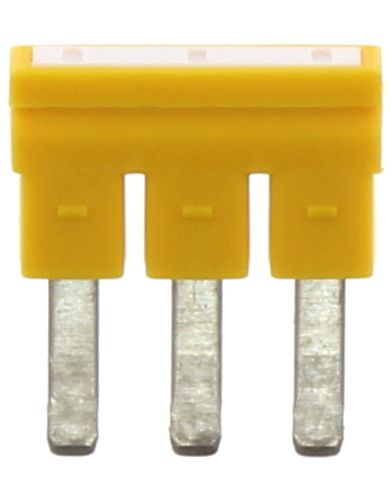

3473.8
FQI 4/3 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
3474.8
FQI 4/4 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
3475.8
FQI 4/5 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
3476.8
FQI 4/6 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
3477.8
FQI 4/7 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
3478.8
FQI 4/8 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
3479.8
FQI 4/9 YE
Colour: Yellow · Rated cross-section: 4 mm² · Rated current: 32 A
17400.8
FIQI 2,5-4/10 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
17402.8
FIQI 2,5-4/2 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A

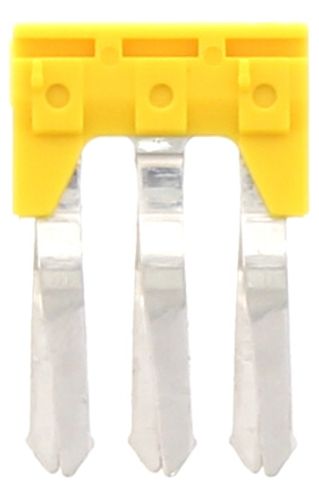

17403.8
FIQI 2,5-4/3 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
17404.8
FIQI 2,5-4/4 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
17405.8
FIQI 2,5-4/5 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
17406.8
FIQI 2,5-4/6 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
17407.8
FIQI 2,5-4/7 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A

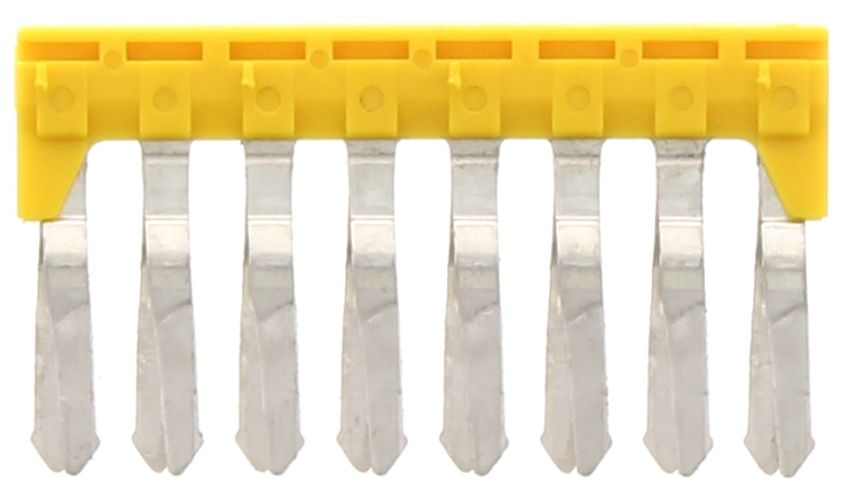

17408.8
FIQI 2,5-4/8 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
17409.8
FIQI 2,5-4/9 YE
Colour: Yellow · Rated cross-section: 2.5 mm² · Rated current: 24 A
17410.8
FIQI 6-10/10 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A

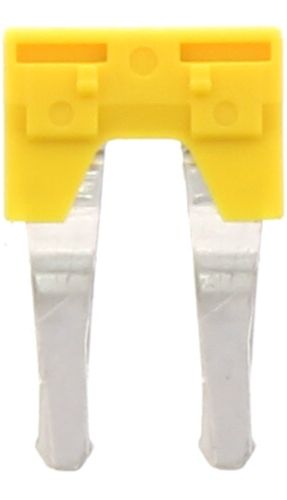

17412.8
FIQI 6-10/2 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A
17413.8
FIQI 6-10/3 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A
17414.8
FIQI 6-10/4 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A

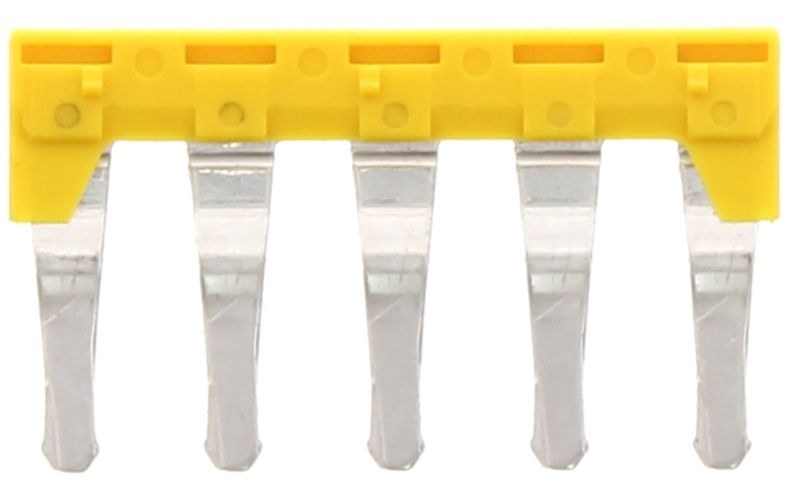

17415.8
FIQI 6-10/5 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A

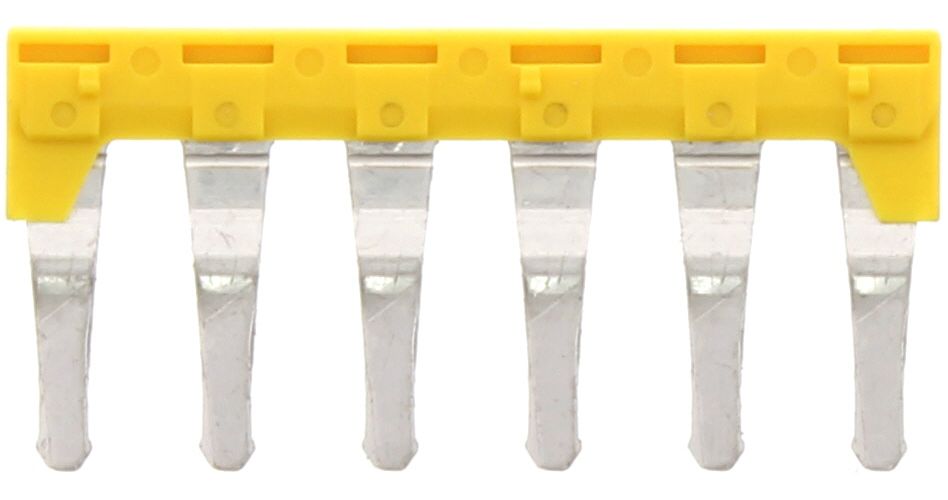

17416.8
FIQI 6-10/6 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A
17417.8
FIQI 6-10/7 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A
17418.8
FIQI 6-10/8 YE
Colour: Yellow · Rated cross-section: 6 mm² · Rated current: 41 A
Specification table
140| Article no. | Type | Colour | Rated cross-section | Rated current | No. of poles |
|---|---|---|---|---|---|
| 3450.4 | FQI 1,5/10 BK | Black | 1.5 mm² | 17.5 A | 10 |
| 3450.5 | FQI 1,5/10 BU | Blue | 1.5 mm² | 17.5 A | 10 |
| ★3450.8 | FQI 1,5/10 YE | Yellow | 1.5 mm² | 17.5 A | 10 |
| 3450.9 | FQI 1,5/10 RD | Red | 1.5 mm² | 17.5 A | 10 |
| 3452.4 | FQI 1,5/2 BK | Black | 1.5 mm² | 17.5 A | 2 |
| 3452.5 | FQI 1,5/2 BU | Blue | 1.5 mm² | 17.5 A | 2 |
| ★3452.8 | FQI 1,5/2 YE | Yellow | 1.5 mm² | 17.5 A | 2 |
| 3452.9 | FQI 1,5/2 RD | Red | 1.5 mm² | 17.5 A | 2 |
| 3453.4 | FQI 1,5/3 BK | Black | 1.5 mm² | 17.5 A | 3 |
| 3453.5 | FQI 1,5/3 BU | Blue | 1.5 mm² | 17.5 A | 3 |
| ★3453.8 | FQI 1,5/3 YE | Yellow | 1.5 mm² | 17.5 A | 3 |
| 3453.9 | FQI 1,5/3 RD | Red | 1.5 mm² | 17.5 A | 3 |
| 3454.4 | FQI 1,5/4 BK | Black | 1.5 mm² | 17.5 A | 4 |
| 3454.5 | FQI 1,5/4 BU | Blue | 1.5 mm² | 17.5 A | 4 |
| ★3454.8 | FQI 1,5/4 YE | Yellow | 1.5 mm² | 17.5 A | 4 |
| 3454.9 | FQI 1,5/4 RD | Red | 1.5 mm² | 17.5 A | 4 |
| 3455.4 | FQI 1,5/5 BK | Black | 1.5 mm² | 17.5 A | 5 |
| 3455.5 | FQI 1,5/5 BU | Blue | 1.5 mm² | 17.5 A | 5 |
| ★3455.8 | FQI 1,5/5 YE | Yellow | 1.5 mm² | 17.5 A | 5 |
| 3455.9 | FQI 1,5/5 RD | Red | 1.5 mm² | 17.5 A | 5 |
| 3456.4 | FQI 1,5/6 BK | Black | 1.5 mm² | 17.5 A | 6 |
| 3456.5 | FQI 1,5/6 BU | Blue | 1.5 mm² | 17.5 A | 6 |
| ★3456.8 | FQI 1,5/6 YE | Yellow | 1.5 mm² | 17.5 A | 6 |
| 3456.9 | FQI 1,5/6 RD | Red | 1.5 mm² | 17.5 A | 6 |
| 3457.4 | FQI 1,5/7 BK | Black | 1.5 mm² | 17.5 A | 7 |
| 3457.5 | FQI 1,5/7 BU | Blue | 1.5 mm² | 17.5 A | 7 |
| ★3457.8 | FQI 1,5/7 YE | Yellow | 1.5 mm² | 17.5 A | 7 |
| 3457.9 | FQI 1,5/7 RD | Red | 1.5 mm² | 17.5 A | 7 |
| 3458.4 | FQI 1,5/8 BK | Black | 1.5 mm² | 17.5 A | 8 |
| 3458.5 | FQI 1,5/8 BU | Blue | 1.5 mm² | 17.5 A | 8 |
| ★3458.8 | FQI 1,5/8 YE | Yellow | 1.5 mm² | 17.5 A | 8 |
| 3458.9 | FQI 1,5/8 RD | Red | 1.5 mm² | 17.5 A | 8 |
| 3459.4 | FQI 1,5/9 BK | Black | 1.5 mm² | 17.5 A | 9 |
| 3459.5 | FQI 1,5/9 BU | Blue | 1.5 mm² | 17.5 A | 9 |
| ★3459.8 | FQI 1,5/9 YE | Yellow | 1.5 mm² | 17.5 A | 9 |
| 3459.9 | FQI 1,5/9 RD | Red | 1.5 mm² | 17.5 A | 9 |
| 3460.4 | FQI 2,5/10 BK | Black | 2.5 mm² | 24 A | 10 |
| 3460.5 | FQI 2,5/10 BU | Blue | 2.5 mm² | 24 A | 10 |
| ★3460.8 | FQI 2,5/10 YE | Yellow | 2.5 mm² | 24 A | 10 |
| 3460.9 | FQI 2,5/10 RD | Red | 2.5 mm² | 24 A | 10 |
| 3461.4 | FQI 2,5/50 BK | Black | 2.5 mm² | 24 A | 50 |
| 3461.5 | FQI 2,5/50 BU | Blue | 2.5 mm² | 24 A | 50 |
| ★3461.8 | FQI 2,5/50 YE | Yellow | 2.5 mm² | 24 A | 50 |
| 3461.9 | FQI 2,5/50 RD | Red | 2.5 mm² | 24 A | 50 |
| 3462.4 | FQI 2,5/2 BK | Black | 2.5 mm² | 24 A | 2 |
| 3462.5 | FQI 2,5/2 BU | Blue | 2.5 mm² | 24 A | 2 |
| ★3462.8 | FQI 2,5/2 YE | Yellow | 2.5 mm² | 24 A | 2 |
| 3462.9 | FQI 2,5/2 RD | Red | 2.5 mm² | 24 A | 2 |
| 3463.4 | FQI 2,5/3 BK | Black | 2.5 mm² | 24 A | 3 |
| 3463.5 | FQI 2,5/3 BU | Blue | 2.5 mm² | 24 A | 3 |
| ★3463.8 | FQI 2,5/3 YE | Yellow | 2.5 mm² | 24 A | 3 |
| 3463.9 | FQI 2,5/3 RD | Red | 2.5 mm² | 24 A | 3 |
| 3464.4 | FQI 2,5/4 BK | Black | 2.5 mm² | 24 A | 4 |
| 3464.5 | FQI 2,5/4 BU | Blue | 2.5 mm² | 24 A | 4 |
| ★3464.8 | FQI 2,5/4 YE | Yellow | 2.5 mm² | 24 A | 4 |
| 3464.9 | FQI 2,5/4 RD | Red | 2.5 mm² | 24 A | 4 |
| 3465.4 | FQI 2,5/5 BK | Black | 2.5 mm² | 24 A | 5 |
| 3465.5 | FQI 2,5/5 BU | Blue | 2.5 mm² | 24 A | 5 |
| ★3465.8 | FQI 2,5/5 YE | Yellow | 2.5 mm² | 24 A | 5 |
| 3465.9 | FQI 2,5/5 RD | Red | 2.5 mm² | 24 A | 5 |
| 3466.4 | FQI 2,5/6 BK | Black | 2.5 mm² | 24 A | 6 |
| 3466.5 | FQI 2,5/6 BU | Blue | 2.5 mm² | 24 A | 6 |
| ★3466.8 | FQI 2,5/6 YE | Yellow | 2.5 mm² | 24 A | 6 |
| 3466.9 | FQI 2,5/6 RD | Red | 2.5 mm² | 24 A | 6 |
| 3467.4 | FQI 2,5/7 BK | Black | 2.5 mm² | 24 A | 7 |
| 3467.5 | FQI 2,5/7 BU | Blue | 2.5 mm² | 24 A | 7 |
| ★3467.8 | FQI 2,5/7 YE | Yellow | 2.5 mm² | 24 A | 7 |
| 3467.9 | FQI 2,5/7 RD | Red | 2.5 mm² | 24 A | 7 |
| 3468.4 | FQI 2,5/8 BK | Black | 2.5 mm² | 24 A | 8 |
| 3468.5 | FQI 2,5/8 BU | Blue | 2.5 mm² | 24 A | 8 |
| ★3468.8 | FQI 2,5/8 YE | Yellow | 2.5 mm² | 24 A | 8 |
| 3468.9 | FQI 2,5/8 RD | Red | 2.5 mm² | 24 A | 8 |
| 3469.4 | FQI 2,5/9 BK | Black | 2.5 mm² | 24 A | 9 |
| 3469.5 | FQI 2,5/9 BU | Blue | 2.5 mm² | 24 A | 9 |
| ★3469.8 | FQI 2,5/9 YE | Yellow | 2.5 mm² | 24 A | 9 |
| 3469.9 | FQI 2,5/9 RD | Red | 2.5 mm² | 24 A | 9 |
| 3470.4 | FQI 4/10 BK | Black | 4 mm² | 32 A | 10 |
| 3470.5 | FQI 4/10 BU | Blue | 4 mm² | 32 A | 10 |
| ★3470.8 | FQI 4/10 YE | Yellow | 4 mm² | 32 A | 10 |
| 3470.9 | FQI 4/10 RD | Red | 4 mm² | 32 A | 10 |
| 3472.4 | FQI 4/2 BK | Black | 4 mm² | 32 A | 2 |
| 3472.5 | FQI 4/2 BU | Blue | 4 mm² | 32 A | 2 |
| ★3472.8 | FQI 4/2 YE | Yellow | 4 mm² | 32 A | 2 |
| 3472.9 | FQI 4/2 RD | Red | 4 mm² | 32 A | 2 |
| 3473.4 | FQI 4/3 BK | Black | 4 mm² | 32 A | 3 |
| 3473.5 | FQI 4/3 BU | Blue | 4 mm² | 32 A | 3 |
| ★3473.8 | FQI 4/3 YE | Yellow | 4 mm² | 32 A | 3 |
| 3473.9 | FQI 4/3 RD | Red | 4 mm² | 32 A | 3 |
| 3474.4 | FQI 4/4 BK | Black | 4 mm² | 32 A | 4 |
| 3474.5 | FQI 4/4 BU | Blue | 4 mm² | 32 A | 4 |
| ★3474.8 | FQI 4/4 YE | Yellow | 4 mm² | 32 A | 4 |
| 3474.9 | FQI 4/4 RD | Red | 4 mm² | 32 A | 4 |
| 3475.4 | FQI 4/5 BK | Black | 4 mm² | 32 A | 5 |
| 3475.5 | FQI 4/5 BU | Blue | 4 mm² | 32 A | 5 |
| ★3475.8 | FQI 4/5 YE | Yellow | 4 mm² | 32 A | 5 |
| 3475.9 | FQI 4/5 RD | Red | 4 mm² | 32 A | 5 |
| 3476.4 | FQI 4/6 BK | Black | 4 mm² | 32 A | 6 |
| 3476.5 | FQI 4/6 BU | Blue | 4 mm² | 32 A | 6 |
| ★3476.8 | FQI 4/6 YE | Yellow | 4 mm² | 32 A | 6 |
| 3476.9 | FQI 4/6 RD | Red | 4 mm² | 32 A | 6 |
| 3477.4 | FQI 4/7 BK | Black | 4 mm² | 32 A | 7 |
| 3477.5 | FQI 4/7 BU | Blue | 4 mm² | 32 A | 7 |
| ★3477.8 | FQI 4/7 YE | Yellow | 4 mm² | 32 A | 7 |
| 3477.9 | FQI 4/7 RD | Red | 4 mm² | 32 A | 7 |
| 3478.4 | FQI 4/8 BK | Black | 4 mm² | 32 A | 8 |
| 3478.5 | FQI 4/8 BU | Blue | 4 mm² | 32 A | 8 |
| ★3478.8 | FQI 4/8 YE | Yellow | 4 mm² | 32 A | 8 |
| 3478.9 | FQI 4/8 RD | Red | 4 mm² | 32 A | 8 |
| 3479.4 | FQI 4/9 BK | Black | 4 mm² | 32 A | 9 |
| 3479.5 | FQI 4/9 BU | Blue | 4 mm² | 32 A | 9 |
| ★3479.8 | FQI 4/9 YE | Yellow | 4 mm² | 32 A | 9 |
| 3479.9 | FQI 4/9 RD | Red | 4 mm² | 32 A | 9 |
| 3490.8 | FQI 2,5-4/10 YE | Yellow | 2.5 mm² | 24 A | 10 |
| 3491.8 | FQI 2,5-4/50 YE | Yellow | 2.5 mm² | 24 A | 50 |
| 3492.8 | FQI 2,5-4/2 YE | Yellow | 2.5 mm² | 24 A | 2 |
| 3493.8 | FQI 2,5-4/3 YE | Yellow | 2.5 mm² | 24 A | 3 |
| 3494.8 | FQI 2,5-4/4 YE | Yellow | 2.5 mm² | 24 A | 4 |
| 3495.8 | FQI 2,5-4/5 YE | Yellow | 2.5 mm² | 24 A | 5 |
| 3496.8 | FQI 2,5-4/6 YE | Yellow | 2.5 mm² | 24 A | 6 |
| 3497.8 | FQI 2,5-4/7 YE | Yellow | 2.5 mm² | 24 A | 7 |
| 3498.8 | FQI 2,5-4/8 YE | Yellow | 2.5 mm² | 24 A | 8 |
| 3499.8 | FQI 2,5-4/9 YE | Yellow | 2.5 mm² | 24 A | 9 |
| 17400.8 | FIQI 2,5-4/10 YE | Yellow | 2.5 mm² | 24 A | 10 |
| 17402.8 | FIQI 2,5-4/2 YE | Yellow | 2.5 mm² | 24 A | 2 |
| 17403.8 | FIQI 2,5-4/3 YE | Yellow | 2.5 mm² | 24 A | 3 |
| 17404.8 | FIQI 2,5-4/4 YE | Yellow | 2.5 mm² | 24 A | 4 |
| 17405.8 | FIQI 2,5-4/5 YE | Yellow | 2.5 mm² | 24 A | 5 |
| 17406.8 | FIQI 2,5-4/6 YE | Yellow | 2.5 mm² | 24 A | 6 |
| 17407.8 | FIQI 2,5-4/7 YE | Yellow | 2.5 mm² | 24 A | 7 |
| 17408.8 | FIQI 2,5-4/8 YE | Yellow | 2.5 mm² | 24 A | 8 |
| 17409.8 | FIQI 2,5-4/9 YE | Yellow | 2.5 mm² | 24 A | 9 |
| 17410.8 | FIQI 6-10/10 YE | Yellow | 6 mm² | 41 A | 10 |
| 17412.8 | FIQI 6-10/2 YE | Yellow | 6 mm² | 41 A | 2 |
| 17413.8 | FIQI 6-10/3 YE | Yellow | 6 mm² | 41 A | 3 |
| 17414.8 | FIQI 6-10/4 YE | Yellow | 6 mm² | 41 A | 4 |
| 17415.8 | FIQI 6-10/5 YE | Yellow | 6 mm² | 41 A | 5 |
| 17416.8 | FIQI 6-10/6 YE | Yellow | 6 mm² | 41 A | 6 |
| 17417.8 | FIQI 6-10/7 YE | Yellow | 6 mm² | 41 A | 7 |
| 17418.8 | FIQI 6-10/8 YE | Yellow | 6 mm² | 41 A | 8 |
| 17419.8 | FIQI 6-10/9 YE | Yellow | 6 mm² | 41 A | 9 |
