2063.0H
2063.0

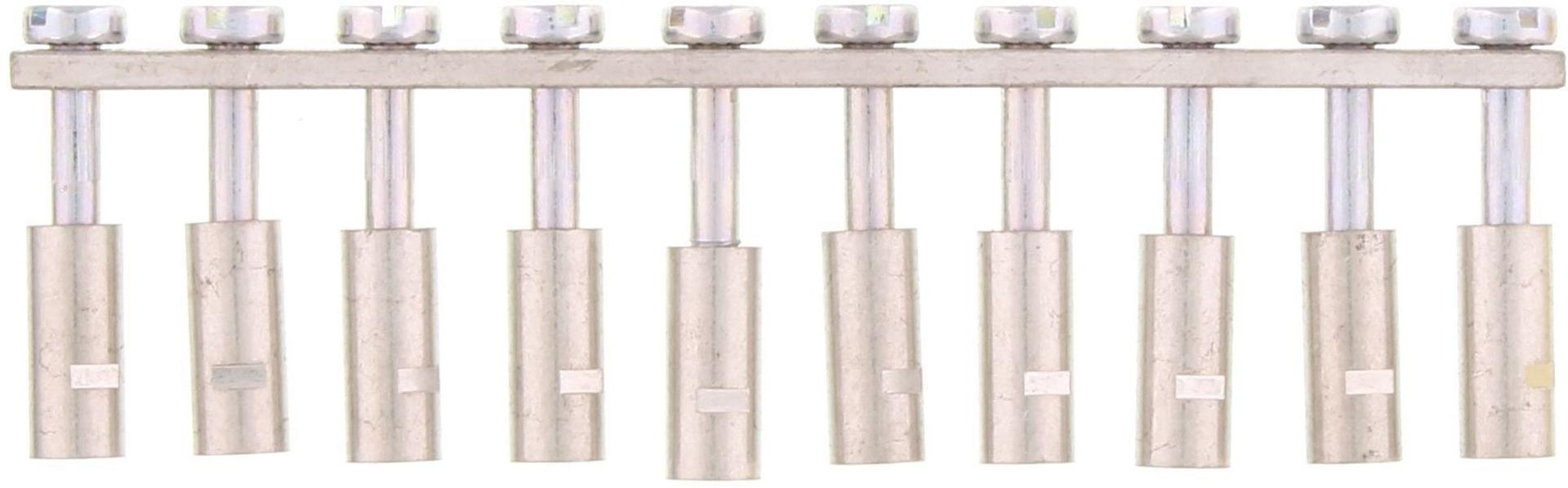

Q 10
Cross-connector, No. of poles: 10, Mounting type: Can be screwed on, Width: 78.9 mm, Rated cross-section: 10 mm², Colour: natural
Technical data
- Rated current
- 47 A
- Rated cross-section
- 10 mm²
- Colour
- Natural
- Width
- 78.9 mm
- Length
- 6 mm
- No. of poles
- 10
- Mounting type
- Screwable
- Contamination degree
- 3
- EU-POP compliant
- Yes
- Hole spacing (centre to centre)
- 8.1 mm
- Lochdurchmesser
- 3.4 mm
- Material
- Brass
- Number of bridged terminals
- 10
- Oberfläche Schraube
- Galvanized
- PROP 65 CAS 1 Substance
- LEAD
- PROP 65 CAS 1 percentage, max.
- 4 %
- PROP 65 CAS 1 percentage, min.
- 0.1 %
- PROP 65 compliant
- No
- REACH CAS 1 Number
- 7439-92-1
- REACH CAS 1 Substance
- BLEI
- REACH CAS 1 percentage, max.
- 4 %
- REACH CAS 1 percentage, min.
- 0.1 %
- REACH Candidate Substance Note
- No
- REACH compliant
- No
- REACH reference date
- 2026-02-04
- RoHS Exception rule
- 6c
- RoHS compliant
- Yes
- SCIP
- 58D8D841-1B59-4CCB-9644-FF90381F7482
- Screw head
- Slotted
- Screw threading
- M 3
- Surface
- Nickel
- TSCA compliant
- Yes
- Teilungsmaß
- 8 mm
- Tightening torque, max.
- 1 Nm
- Tightening torque, min.
- 0.5 Nm
- Voltage with partition, max.
- 800 V
- Voltage without partition, max.
- 400 V
- Weight per piece (including packaging)
- 28.21 g
- Weight per piece (not including packaging)
- 28.2 g
Commercial data
- Country of origin
- CZ
- Customs number
- 85389099
- GTIN (EAN)
- 4044211048693
