2055.0H
2055.0
QS 2

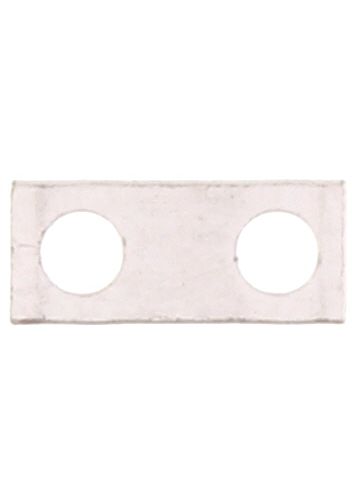

Cross-connection rail, No. of poles: 2, Mounting type: Can be screwed on, Width: 14.1 mm, Rated cross-section: 10 mm², Colour: natural
Technical data
- Rated cross-section
- 10 mm²
- Colour
- Natural
- Width
- 14.1 mm
- Length
- 6 mm
- No. of poles
- 2
- Mounting type
- Screwable
- EU-POP compliant
- Yes
- Height
- 2 mm
- Hole spacing (centre to centre)
- 8.1 mm
- Lochdurchmesser
- 3.4 mm
- Material
- Brass
- Number of bridged terminals
- 2
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- RoHS compliant
- Yes
- Surface
- Nickel
- TSCA compliant
- Yes
- Teilungsmaß
- 8 mm
- Weight per piece (including packaging)
- 1.07 g
- Weight per piece (not including packaging)
- 1.06 g
Commercial data
- Country of origin
- DE
- Customs number
- 85389099
- GTIN (EAN)
- 4044211048617
