2044
2044.0

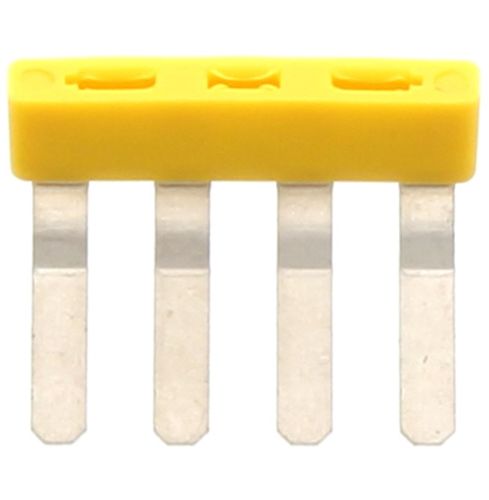

AQI 4/5/11 YE
External insulated cross-connector, No. of poles: 4, Mounting type: Plug in, Width: 19.46 mm, Rated current: 27 A; Colour: Yellow
Technical data
- Rated current
- 27 A
- Colour
- Yellow
- Width
- 19.46 mm
- No. of poles
- 4
- Mounting type
- Plug in
- Berührungsschutz vorhanden
- Yes
- Contamination degree
- 3
- EU-POP compliant
- Yes
- Flammability class UL 94
- V-2
- Insulating housing
- Polyamide 6.6
- Insulation available
- Yes
- Material
- Copper
- Number of bridged terminals
- 4
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- RoHS compliant
- Yes
- Surface
- Tin-plated
- TSCA compliant
- Yes
- Teilungsmaß
- 5 mm
- Weight per piece (including packaging)
- 1.17 g
- Weight per piece (not including packaging)
- 1.16 g
- Working temperature, max.
- 105 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- DE
- Customs number
- 85389099
- GTIN (EAN)
- 4044211048495
