2020.0H
2020.0

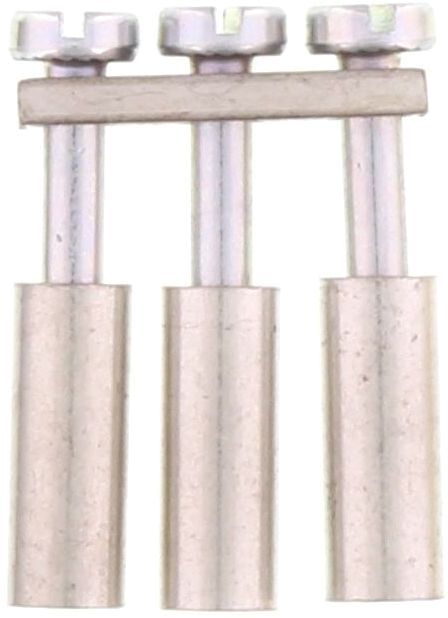

Q 3
Cross-connector, No. of poles: 3, Mounting type: Can be screwed on, Width: 17 mm, Rated cross-section: 4 mm², Colour: natural
Technical data
- Rated current
- 27 A
- Rated cross-section
- 4 mm²
- Colour
- Natural
- Width
- 17 mm
- Length
- 6 mm
- No. of poles
- 3
- Mounting type
- Screwable
- Contamination degree
- 3
- EU-POP compliant
- Yes
- Hole spacing (centre to centre)
- 6.1 mm
- Lochdurchmesser
- 3.4 mm
- Material
- Copper
- Number of bridged terminals
- 3
- Oberfläche Schraube
- Galvanized
- PROP 65 CAS 1 Substance
- LEAD
- PROP 65 CAS 1 percentage, max.
- 4 %
- PROP 65 CAS 1 percentage, min.
- 0.1 %
- PROP 65 compliant
- No
- REACH CAS 1 Number
- 7439-92-1
- REACH CAS 1 Substance
- BLEI
- REACH CAS 1 percentage, max.
- 4 %
- REACH CAS 1 percentage, min.
- 0.1 %
- REACH Candidate Substance Note
- No
- REACH compliant
- No
- REACH reference date
- 2026-02-04
- RoHS Exception rule
- 6c
- RoHS compliant
- Yes
- SCIP
- A92040E2-F49D-4293-B2BA-7B2C17D70C2A
- Screw head
- Slotted
- Screw threading
- M 3
- Surface
- Nickel
- TSCA compliant
- Yes
- Teilungsmaß
- 6 mm
- Tightening torque, max.
- 1 Nm
- Tightening torque, min.
- 0.5 Nm
- Voltage with partition, max.
- 800 V
- Voltage without partition, max.
- 400 V
- Weight per piece (including packaging)
- 8.26 g
- Weight per piece (not including packaging)
- 8.19 g
Commercial data
- Country of origin
- CZ
- Customs number
- 85389099
- GTIN (EAN)
- 4044211048235
