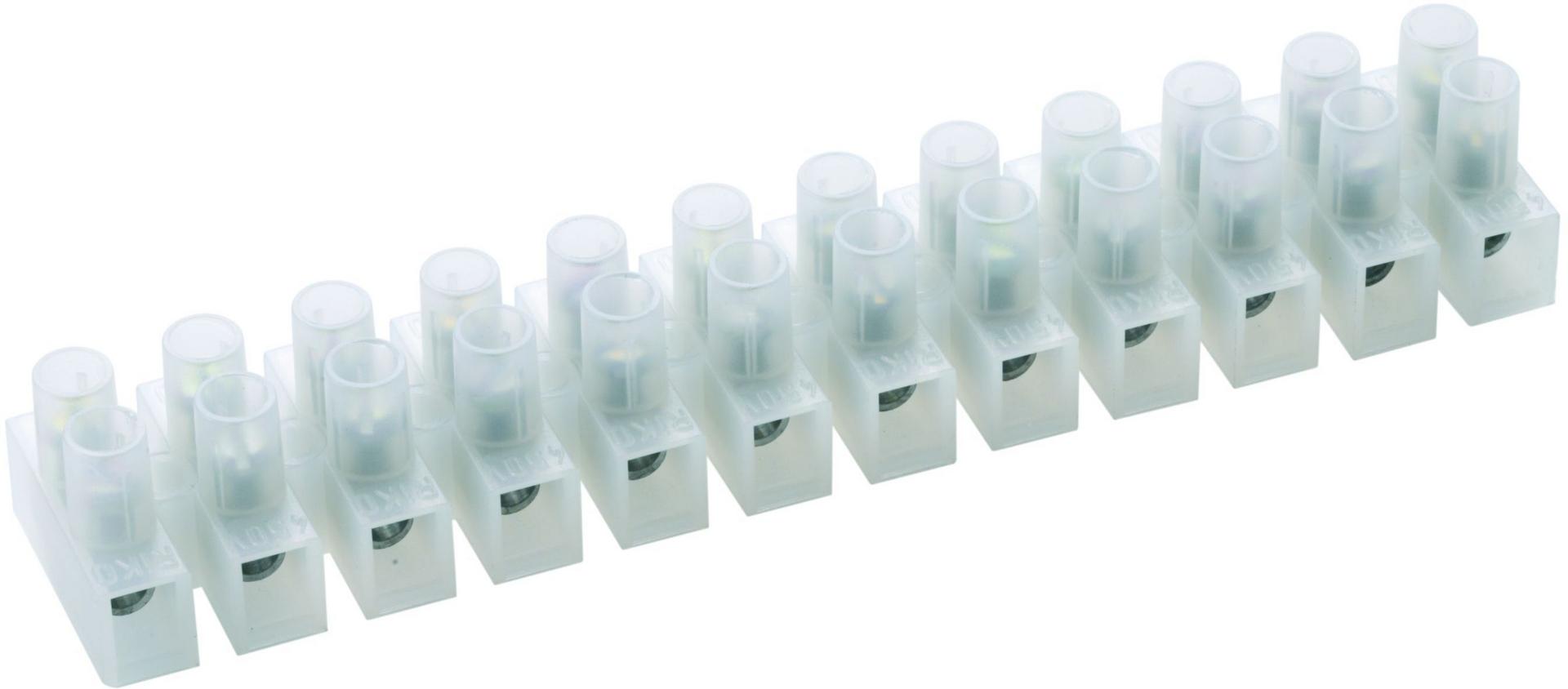

EKB 1,5/12 DS WH
Cuttable terminal, wire protection, Screw connection, Mounting type: Mounting surface, Rated cross-section: 1.5 mm², No. of poles: 12, Colour: White
Technical data
- Rated current
- 17.5 A
- Rated voltage
- 450 V
- Rated cross-section
- 1.5 mm²
- Connection principle
- Screw connection
- Colour
- White
- Width
- 18 mm
- Length
- 95.4 mm
- No. of poles
- 12
- Mounting type
- Mounting face
- Anzahl der Klemmstellen je Pol
- 2
- Bohrlochabstand mittig
- 8
- Connections
- 24
- Contamination degree
- 3
- EU-POP compliant
- Yes
- Flammability class UL 94
- V-2
- Height
- 14 mm
- Insulating housing
- Polyamide 6.6
- Overvoltage category
- III
- PROP 65 CAS 1 Substance
- LEAD
- PROP 65 CAS 1 percentage, max.
- 4 %
- PROP 65 CAS 1 percentage, min.
- 0.1 %
- PROP 65 compliant
- No
- Pitch
- 8 mm
- REACH CAS 1 Number
- 7439-92-1
- REACH CAS 1 Substance
- BLEI
- REACH CAS 1 percentage, max.
- 4 %
- REACH CAS 1 percentage, min.
- 0.1 %
- REACH Candidate Substance Note
- No
- REACH compliant
- No
- REACH reference date
- 2026-02-04
- Rated impulse voltage
- 2,5 kV
- RoHS Exception rule
- 6c
- RoHS compliant
- Yes
- SCIP
- 52AF7C00-0CC6-4D78-BA56-49F3E225B01B
- Screw head
- Slotted
- Screw threading
- M 2,6
- TSCA compliant
- Yes
- Tightening torque
- 0.4 Nm
- VDE approval
- EN 60998
- VDE approval granted
- Yes
- VDE rated current
- 17,5 A
- VDE rated voltage
- 450 V
- VDE wire cross-section rigid, max.
- 1.5 mm²
- VDE wire cross-section rigid, min.
- 0.75 mm²
- VDE wire cross-section stranded, max.
- 1.5 mm²
- VDE wire cross-section stranded, min.
- 0.75 mm²
- Weight per piece (including packaging)
- 23.3 g
- Weight per piece (not including packaging)
- 23.28 g
- Wire cross-section AWG, max.
- 12
- Wire cross-section AWG, min.
- 22
- Wire cross-section single core (rigid)/stranded, max.
- 2.5 mm²
- Wire cross-section single-core (rigid) / stranded, min.
- 0.75 mm²
- Wire cross-section stranded with wire-end ferrule, min.
- 0.5 mm²
- Wire cross-section stranded with wire-end ferrules, max.
- 1.5 mm²
- Wire cross-section stranded, max.
- 1.5 mm²
- Wire cross-section stranded, min.
- 0.75 mm²
- Working temperature, max.
- 100 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- EU
- Customs number
- 85369010
- GTIN (EAN)
- 4044211119294
