17260
17260.2

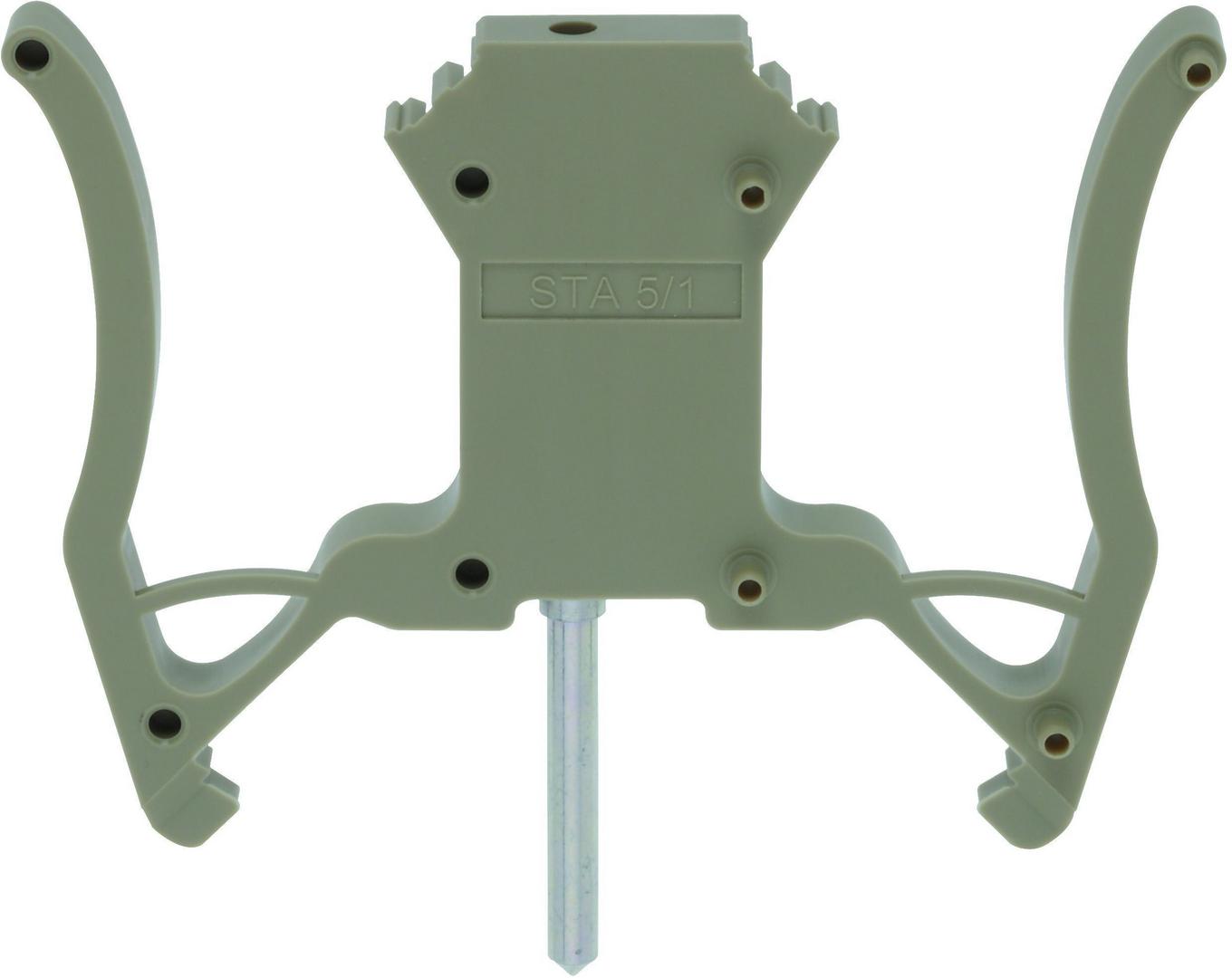

STA 5/1 BG
Technical data
- Colour
- Beige
- Length
- 70 mm
- EU-POP compliant
- Yes
- Flammability class UL 94
- V-2
- Insulating housing
- Polyamide 6.6
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- RoHS compliant
- Yes
- TSCA compliant
- Yes
- Teilungsmaß
- 5 mm
- Weight per piece (including packaging)
- 8.3 g
- Weight per piece (not including packaging)
- 7.3 g
- Wire cross-section stranded, max.
- 1 mm²
- Wire cross-section stranded, min.
- 0.5 mm²
- Working temperature, max.
- 120 °C
- Working temperature, min.
- -40 °C
- Zu addierendes Höhenmaß zur jeweiligen Reihenklemme
- 35.5
Commercial data
- Country of origin
- DE
- Customs number
- 85369010
- GTIN (EAN)
- 4044211171599
