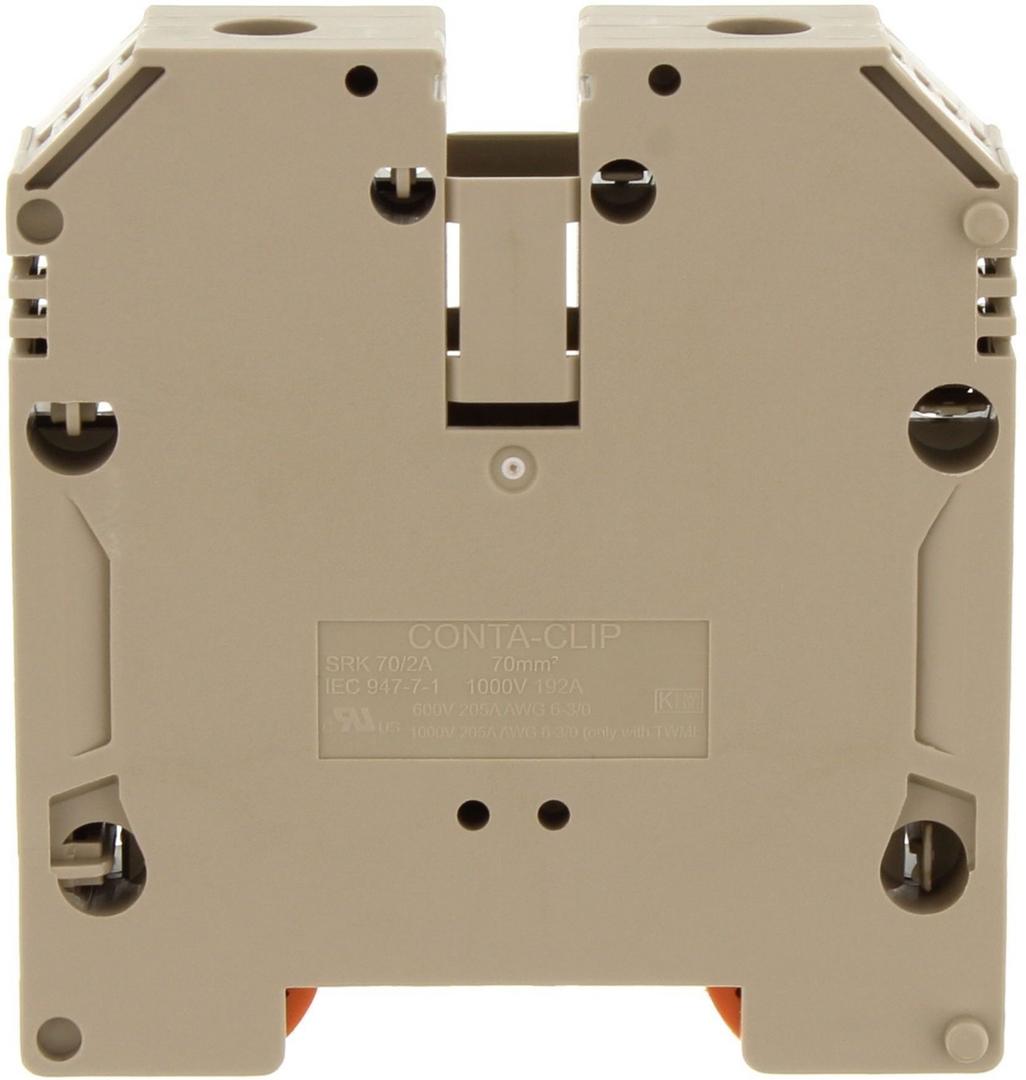

SRK 70/2A BG

Feed-through terminal, Screw connection, Mounting type: Mounting rail TS 35/7.5, Rated cross-section: 70 mm², Width: 20.5 mm, Colour: Beige

Download datasheet

Technical data

Rated current: 192 A
Rated voltage: 1000 V
Rated cross-section: 70 mm²
Connection principle: Screw connection
Colour: Beige
Width: 20.5 mm
Length: 76.5 mm
Mounting type: Mounting rail TS 35/7,5
Connection position: Lateral
Connections: 2
Contamination degree: 3
Current load, max.: 232 A
EAC approval: TR ZU 004/2011
EAC approval granted: Yes
EU-POP compliant: Yes
Flammability class UL 94: V-0
Gauge plug acc. to EN 60 947-1: B11
Height TS 35/7.5: 84 mm
IEC 61373:2010 Railway applications - Rolling stock equipment - Shock and vibration: Category 1, Class B, Body mounted
IEC 61373:2010 certification number: DEKRA 2251741.60
Insulating housing: Polyamide 6.6
KEMA KEUR approval: EN 60947-7-1:2009
KEMA KEUR approval granted: Yes
KEMA rated current: 192 A
KEMA rated impulse voltage: 8 kV
KEMA rated voltage: 1000 V
KEMA torque, max.: 12 Nm
KEMA torque, min.: 6 Nm
KEMA wire cross-section single core (rigid), min.: 10 mm²
KEMA wire cross-section single-core (rigid), max.: 95 mm²
KEMA wire cross-section stranded, max.: 95 mm²
KEMA wire cross-section stranded, min.: 10 mm²
Leiterquerschnitt flexibel mit Aderendhülse AWG max.: 00
Maximum power dissipation for nominal condition: 6.14 W
Mounting note: Caution! When connecting ribbon conductors, insert the EP insert plate into the clamping yoke. This ensures a safe and reliable connection.
Number of cross-connection channels: 1
Number of levels: 1
Number of terminals per level: 2
Number of test pick-off options: 1
Overvoltage category: III
PROP 65 compliant: Yes
REACH Candidate Substance Note: No
REACH compliant: Yes
REACH reference date: 2026-02-04
Rated impulse voltage: 8 kV
RoHS compliant: Yes
Screw head: Inner hex (Allen)
Screw threading: M 8
Stripping length: 22 mm
TSCA compliant: Yes
Tightening torque, max.: 12 Nm
Tightening torque, min.: 6 Nm
UL File Number: E95701
UL Recognized: 1
UL Usegroup B: rated current: 205 A
UL Usegroup B: rated voltage: 600 V
UL Usegroup C: rated current: 205 A
UL Usegroup C: rated voltage: 600 V
UL Usegroup D: rated current: 205 A
UL Usegroup D: rated voltage: 600 V
UL Usegroup E: Bemessungsspannung: 1000 V
UL Usegroup E: Bemessungsstrom: 205 A
UL approval: UL 1059
UL factory wiring: Yes
UL field wiring: Yes
UL torque, max.: 106.2 Lb In.
UL torque, min.: 53.1 Lb In.
UL wire cross-section single-core (rigid) AWG, max.: 3/0
UL wire cross-section single-core (rigid) AWG, min.: 6
UL wire cross-section stranded AWG, max.: 3/0
UL wire cross-section stranded AWG, min.: 6
UL wire material: Cu
Weight per piece (including packaging): 151 g
Weight per piece (not including packaging): 141 g
Wire cross-section AWG, max.: 000
Wire cross-section AWG, min.: 6
Wire cross-section single core (rigid)/stranded, max.: 95 mm²
Wire cross-section single-core (rigid) / stranded, min.: 10 mm²
Wire cross-section single-core (rigid)/stranded AWG, max.: 000
Wire cross-section single-core (rigid)/stranded AWG, min.: 6
Wire cross-section single-core (rigid)/stranded, 2 clampable conductors, max.: 25
Wire cross-section single-core (rigid)/stranded, 2 clampable conductors, min.: 10
Wire cross-section stranded AWG, max.: 000
Wire cross-section stranded AWG, min.: 6
Wire cross-section stranded with wire-end ferrule AWG, min.: 6
Wire cross-section stranded with wire-end ferrule DIN 46228/1, 2 clampable conductors, max.: 25
Wire cross-section stranded with wire-end ferrule DIN 46228/1, 2 clampable conductors, min.: 10
Wire cross-section stranded with wire-end ferrule, min.: 10 mm²
Wire cross-section stranded with wire-end ferrules, max.: 70 mm²
Wire cross-section stranded, 2 clampable conductors, max.: 25
Wire cross-section stranded, 2 clampable conductors, min.: 10
Wire cross-section stranded, max.: 70 mm²
Wire cross-section stranded, min.: 10 mm²
Working temperature, max.: 120 °C
Working temperature, min.: -40 °C
cUL Recognized: 1
cUL Usegroup B: rated current: 205 A
cUL Usegroup B: rated voltage: 600 V
cUL Usegroup C: rated voltage: 600 V
cUL Usegroup D: rated current: 205 A
cUL Usegroup D: rated voltage: 600 V
cUL Usegroup E: Bemessungsspannung: 1000 V
cUL Usegroup E: Bemessungsstrom: 205 A
cUL approval: C22.2 No 158
cUL file number: E95701
cUL torque, max.: 12 Nm
cUL torque, min.: 6 Nm
cUL wire cross-section single-core (rigid) AWG, max.: 3/0
cUL wire cross-section single-core (rigid) AWG, min.: 6
cUL wire cross-section stranded AWG, max.: 3/0
cUL wire cross-section stranded AWG, min.: 6
cUL wire material: Cu
