17117
17117.2

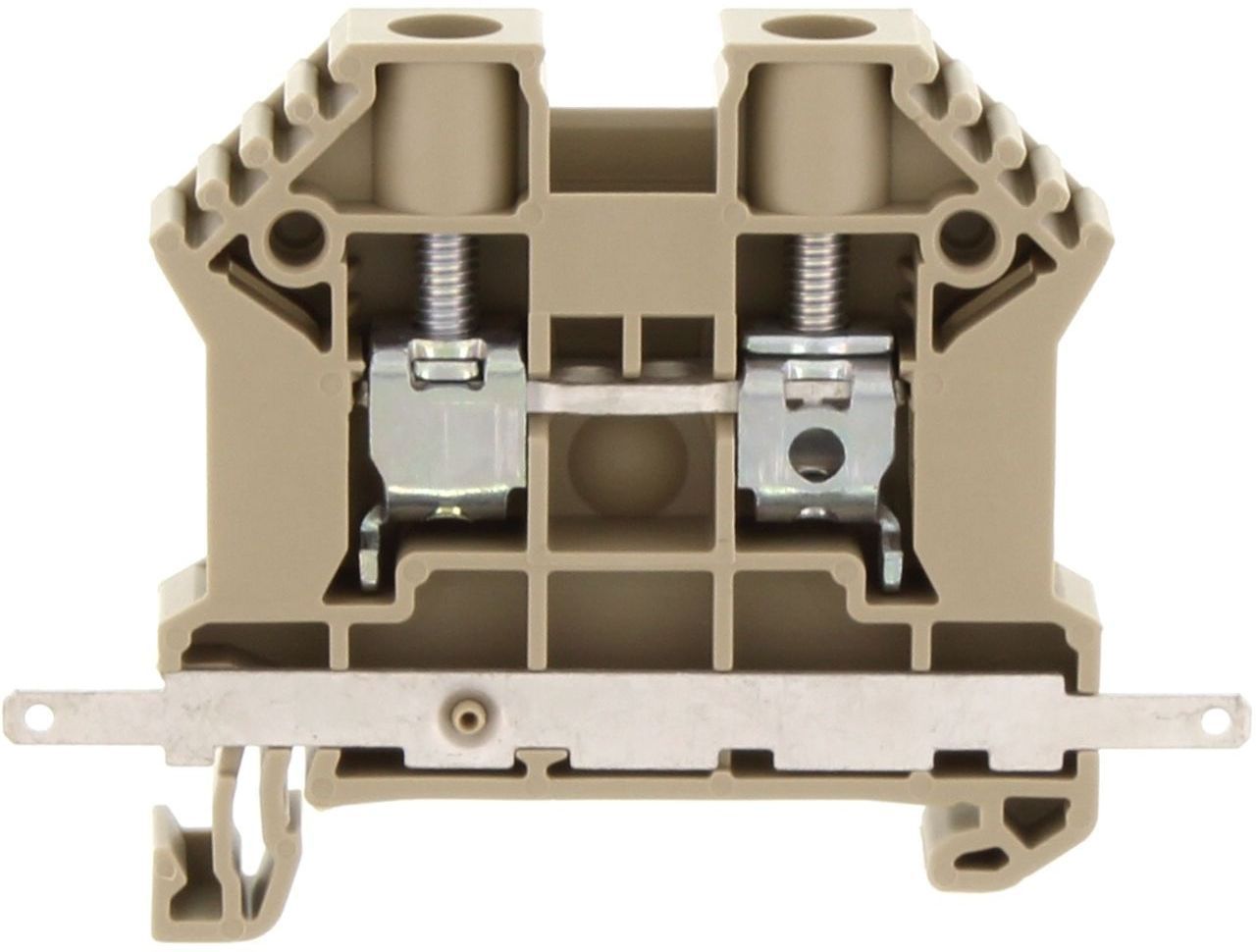

SRK 6/2A SAS BG
Feed-through terminal, Screw connection, Mounting type: Mounting rail TS 35/7.5, Rated cross-section: 10 mm², Width: 8 mm, Colour: Beige
Technical data
- Rated current
- 41 A
- Rated voltage
- 320 V
- Rated cross-section
- 10 mm²
- Connection principle
- Screw connection
- Colour
- Beige
- Width
- 8 mm
- Length
- 62.5 mm
- Mounting type
- Mounting rail TS 35/7,5
- Connection position
- Lateral
- Connections
- 4
- Contamination degree
- 3
- Current load, max.
- 57 A
- DNV GL Bemessungsstoßspannung
- 8 kV
- DNV GL Certificate number
- TAE00002JG
- DNV GL Location Classes
- Temperature: B, Humidity: B, Vibration: A
- DNV GL approval granted
- 1
- DNV GL rated cross-section
- 6 mm²
- DNV GL rated current
- 57 A
- DNV GL rated voltage
- 1000 V
- DNV GL test standard
- IEC 60947-7-1:2009
- EAC approval
- TR ZU 004/2011
- EAC approval granted
- Yes
- EU-POP compliant
- Yes
- End plate required
- Yes
- Flammability class UL 94
- V-0
- Gauge plug acc. to EN 60 947-1
- A5
- Height TS 35/7.5
- 47 mm
- Insulating housing
- Polyamide 6.6
- Leiterquerschnitt flexibel mit Aderendhülse AWG max.
- 10
- Maximum power dissipation for nominal condition
- 1.31 W
- Number of cross-connection channels
- 2
- Number of levels
- 1
- Number of terminals per level
- 2
- Number of test pick-off options
- 1
- Overvoltage category
- III
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- Rated impulse voltage
- 8 kV
- RoHS compliant
- Yes
- Screw head
- Slotted
- Screw threading
- M 3,5
- Sonderanschluss
- Spade flat plug Faston 2.8
- Stripping length
- 10 mm
- TSCA compliant
- Yes
- Tightening torque, max.
- 1.6 Nm
- Tightening torque, min.
- 0.8 Nm
- Weight per piece (including packaging)
- 14.26 g
- Weight per piece (not including packaging)
- 13.4 g
- Wire cross-section AWG, max.
- 8
- Wire cross-section AWG, min.
- 22
- Wire cross-section single core (rigid)/stranded, max.
- 10 mm²
- Wire cross-section single-core (rigid) / stranded, min.
- 0.2 mm²
- Wire cross-section single-core (rigid)/stranded AWG, max.
- 8
- Wire cross-section single-core (rigid)/stranded AWG, min.
- 22
- Wire cross-section stranded AWG, max.
- 8
- Wire cross-section stranded AWG, min.
- 22
- Wire cross-section stranded with wire-end ferrule AWG, min.
- 22
- Wire cross-section stranded with wire-end ferrule, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrules, max.
- 6 mm²
- Wire cross-section stranded, max.
- 10 mm²
- Wire cross-section stranded, min.
- 0.2 mm²
- Working temperature, max.
- 120 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- DE
- Customs number
- 85369010
- GTIN (EAN)
- 4044211149000
