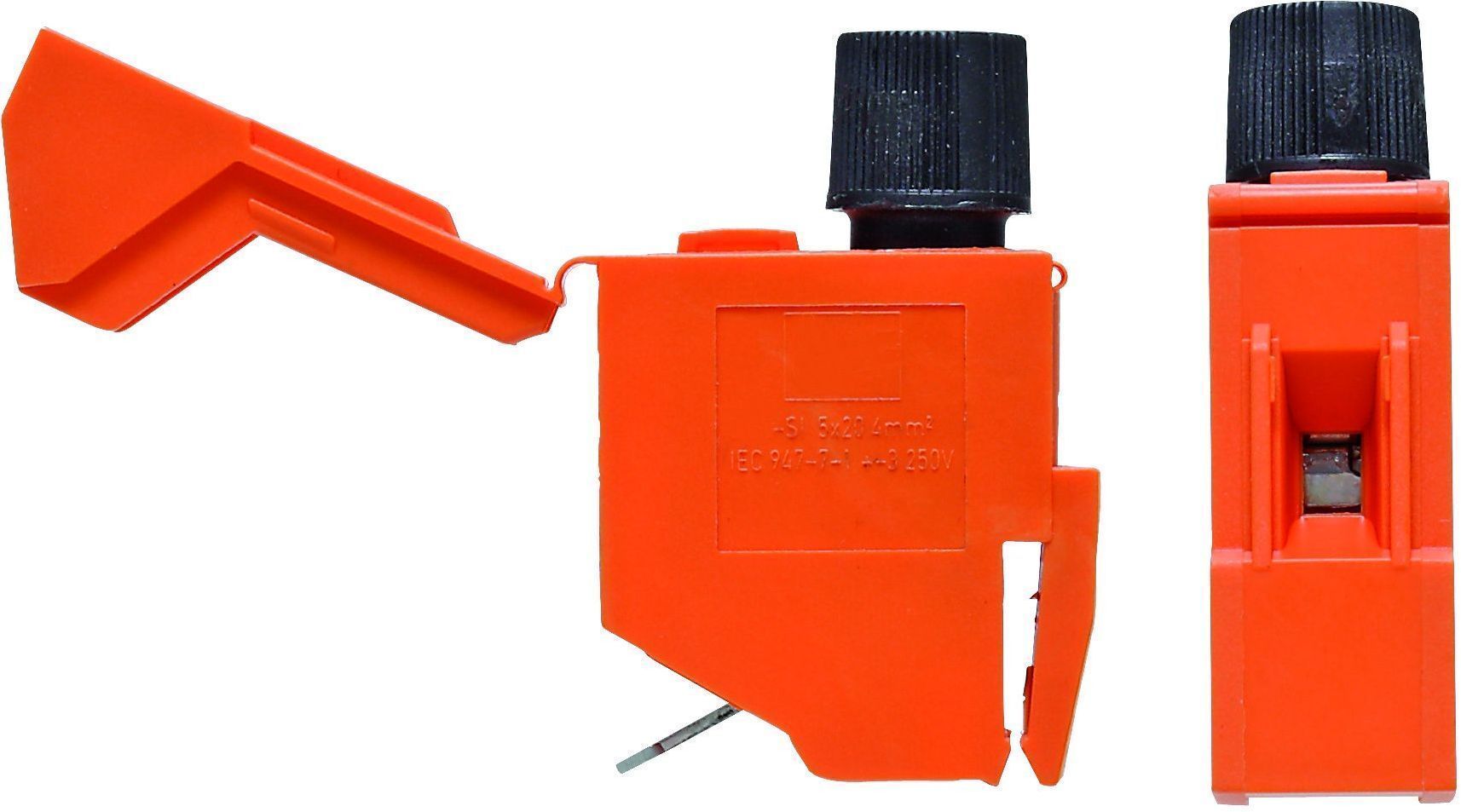

TKS 4/SI 5x25 OG

Transformer-fused terminal, Screw connection, Mounting type: Custom profile, Rated cross-section: 4 mm², Width: 12.5 mm, Colour: Orange

Download datasheet

Technical data

Rated current: 32 A
Rated voltage: 400 V
Rated cross-section: 4 mm²
Connection principle: Screw connection
Colour: Orange
Width: 12.5 mm
Length: 28.3 mm
Mounting type: Custom profile
CSA Usegroup B: rated current: 10 A
CSA Usegroup B: rated voltage: 600 (300) V
CSA Usegroup C: rated current: 10 A
CSA Usegroup C: rated voltage: 600 (300) V
CSA approval: C22.2 No 158
CSA approval granted: Yes
CSA torque, max.: 1 Nm
CSA torque, min.: 0.5 Nm
CSA wire cross-section AWG, max.: 10
CSA wire cross-section AWG, min.: 22
CSAus Usegroup B: rated current: 10 A
CSAus Usegroup B: rated voltage: 600 (300) V
CSAus Usegroup C: rated current: 10 A
CSAus Usegroup C: rated voltage: 600 (300) V
CSAus approval: UL 1059
CSAus approval granted: Yes
CSAus torque, max.: 1 Nm
CSAus torque, min.: 0.5 Nm
CSAus wire cross-section AWG, max.: 10
CSAus wire cross-section AWG, min.: 22
Connections: 1
Contamination degree: 3
EAC approval: TR ZU 004/2011
EAC approval granted: Yes
EU-POP compliant: Yes
Flammability class UL 94: V-0
Fuse size: 5 x 25
Gauge plug acc. to EN 60 947-1: A4
Height: 49.9 mm
Insulating housing: Polyamide 6.6
KEMA KEUR approval: EN 60947-7-3:2009
KEMA KEUR approval granted: Yes
KEMA fuse size: 5 x 25
KEMA power loss in compound arrangement - only short-circuit protection, max.: 4 / 8
KEMA power loss in compound arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
KEMA power loss in singular arrangement - only short-circuit protection, max.: 4 / 10
KEMA power loss in singular arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
KEMA rated current: 10 A
KEMA rated impulse voltage (fuse holder without electrical components): 8 (4) kV
KEMA rated voltage: 400 V
KEMA torque, max.: 1 Nm
KEMA torque, min.: 0.5 Nm
KEMA wire cross-section single core (rigid), min.: 0.2 mm²
KEMA wire cross-section single-core (rigid), max.: 6 mm²
KEMA wire cross-section stranded, max.: 6 mm²
KEMA wire cross-section stranded, min.: 0.2 mm²
Overvoltage category: III
PROP 65 compliant: Yes
Power loss in compound arrangement - only short-circuit protection, max.: 4 / 8
Power loss in compound arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
Power loss in singular arrangement - only short-circuit protection, max.: 4 / 10
Power loss in singular arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
REACH Candidate Substance Note: No
REACH compliant: Yes
REACH reference date: 2026-02-04
Rated impulse voltage: 4 kV
RoHS compliant: Yes
Screw head: Slotted
Screw threading: M 3
Stripping length: 8 mm
TSCA compliant: Yes
Tightening torque, max.: 1 Nm
Tightening torque, min.: 0.5 Nm
UL File Number: E95701
UL Recognized: 1
UL Usegroup B: rated current: 30 A
UL Usegroup B: rated voltage: 600 V
UL Usegroup C: rated current: 30 A
UL Usegroup C: rated voltage: 600 V
UL approval: UL 1059
UL factory wiring: Yes
UL field wiring: Yes
UL torque, max.: 8.85 Lb In.
UL torque, min.: 4.4 Lb In.
UL wire cross-section single-core (rigid) AWG, max.: 10
UL wire cross-section single-core (rigid) AWG, min.: 24
UL wire cross-section stranded AWG, max.: 10
UL wire cross-section stranded AWG, min.: 24
UL wire material: Cu
Weight per piece (including packaging): 11.73 g
Weight per piece (not including packaging): 11.33 g
Wire cross-section AWG, max.: 10
Wire cross-section AWG, min.: 22
Wire cross-section single core (rigid)/stranded, max.: 6 mm²
Wire cross-section single-core (rigid) / stranded, min.: 0.2 mm²
Wire cross-section stranded with wire-end ferrule, min.: 0.2 mm²
Wire cross-section stranded with wire-end ferrules, max.: 4 mm²
Wire cross-section stranded, max.: 6 mm²
Wire cross-section stranded, min.: 0.2 mm²
Working temperature, max.: 120 °C
Working temperature, min.: -40 °C
