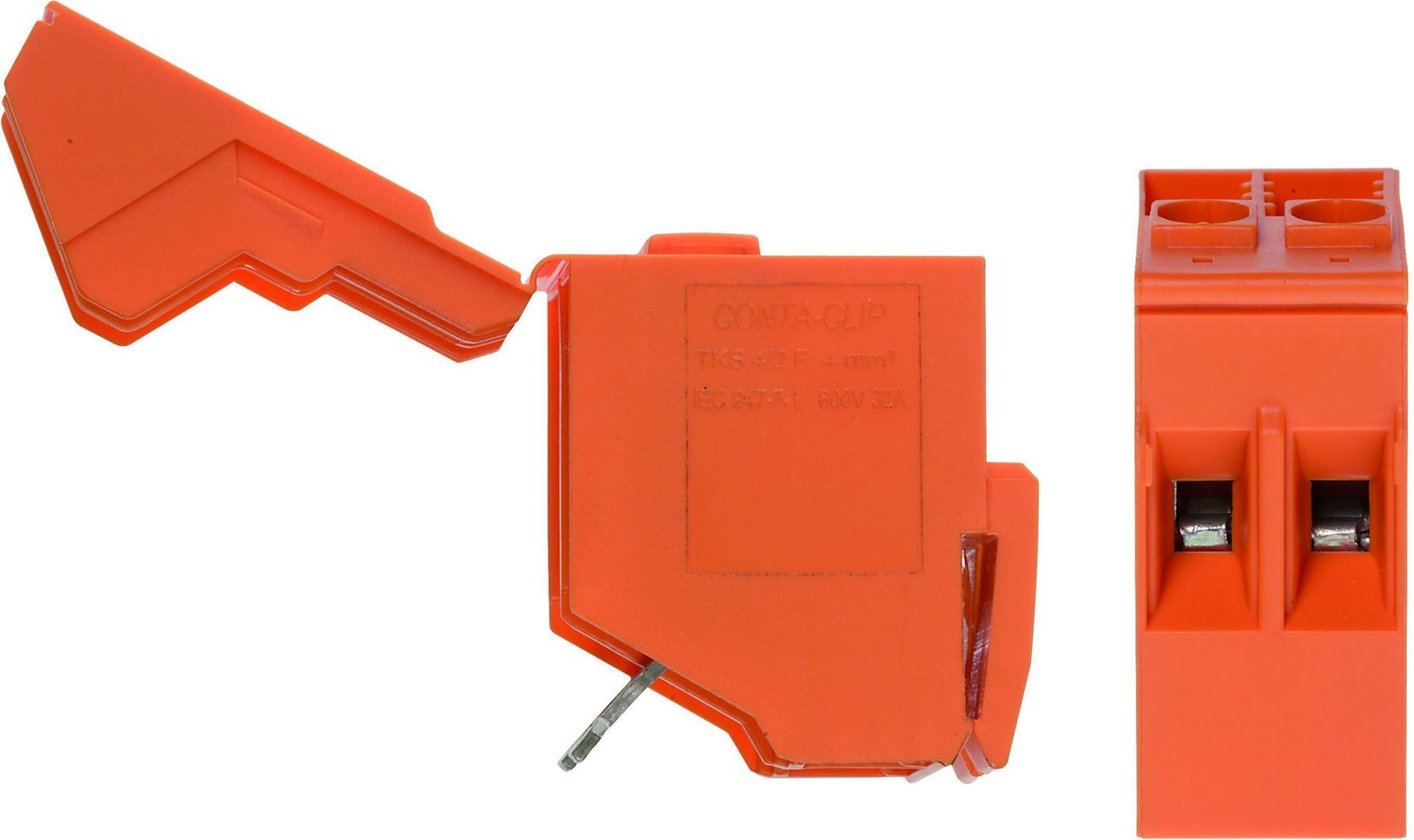

TKS 4/2/F OG

Transformer terminal, Screw connection + spade connection Mounting type: Custom profile, Rated cross-section: 4 mm², Width: 15 mm, Colour: Orange

Download datasheet

Technical data

Rated current: 32 A
Rated voltage: 800 V
Rated cross-section: 4 mm²
Connection principle: Screw connection + spade connection
Colour: Orange
Width: 15 mm
Length: 27.7 mm
Mounting type: Custom profile
CSA Usegroup B: rated current: 30 A
CSA Usegroup B: rated voltage: 600 V
CSA Usegroup C: rated current: 30 A
CSA Usegroup C: rated voltage: 600 V
CSA approval: C22.2 No 158
CSA approval granted: Yes
CSA torque, max.: 1 Nm
CSA torque, min.: 0.5 Nm
CSA wire cross-section AWG, max.: 10
CSA wire cross-section AWG, min.: 22
CSAus Usegroup B: rated current: 27 A
CSAus Usegroup B: rated voltage: 600 V
CSAus Usegroup C: rated current: 27 A
CSAus Usegroup C: rated voltage: 600 V
CSAus approval: UL 1059
CSAus approval granted: Yes
CSAus torque, max.: 1 Nm
CSAus torque, min.: 0.5 Nm
CSAus wire cross-section AWG, max.: 10
CSAus wire cross-section AWG, min.: 22
Connections: 4
Contamination degree: 3
EAC approval: TR ZU 004/2011
EAC approval granted: Yes
EU-POP compliant: Yes
Flammability class UL 94: V-0
Gauge plug acc. to EN 60 947-1: A4
Height: 33.1 mm
Insulating housing: Polyamide 6.6
KEMA KEUR approval: EN 60947-7-1:2009
KEMA KEUR approval granted: Yes
KEMA rated current: 32 A
KEMA rated impulse voltage (fuse holder without electrical components): 8 kV
KEMA rated voltage: 800 V
KEMA torque, max.: 1 Nm
KEMA torque, min.: 0.5 Nm
KEMA wire cross-section single core (rigid), min.: 0.2 mm²
KEMA wire cross-section single-core (rigid), max.: 6 mm²
KEMA wire cross-section stranded, max.: 6 mm²
KEMA wire cross-section stranded, min.: 0.2 mm²
Maximum power dissipation for nominal condition: 2.05 W
Number of test pick-off options: 2
Overvoltage category: III
PROP 65 compliant: Yes
REACH Candidate Substance Note: No
REACH compliant: Yes
REACH reference date: 2026-02-04
Rated impulse voltage: 8 kV
RoHS compliant: Yes
Screw head: Slotted
Screw threading: M 3
Spade connection: 6,3/2 x 2,8 x 0,8
Stripping length: 9 mm
TSCA compliant: Yes
Tightening torque, max.: 1 Nm
Tightening torque, min.: 0.5 Nm
UL File Number: E95701
UL Recognized: 1
UL Usegroup B: rated current: 30 A
UL Usegroup B: rated voltage: 600 V
UL Usegroup C: rated current: 30 A
UL Usegroup C: rated voltage: 600 V
UL approval: UL 1059
UL factory wiring: Yes
UL field wiring: Yes
UL torque, max.: 8.85 Lb In.
UL torque, min.: 4.4 Lb In.
UL wire cross-section single-core (rigid) AWG, max.: 10
UL wire cross-section single-core (rigid) AWG, min.: 22
UL wire cross-section stranded AWG, max.: 10
UL wire cross-section stranded AWG, min.: 22
UL wire material: Cu
Weight per piece (including packaging): 10.4 g
Weight per piece (not including packaging): 10 g
Wire cross-section AWG, max.: 10
Wire cross-section AWG, min.: 22
Wire cross-section single core (rigid)/stranded, max.: 6 mm²
Wire cross-section single-core (rigid) / stranded, min.: 0.2 mm²
Wire cross-section stranded with wire-end ferrule, min.: 0.2 mm²
Wire cross-section stranded with wire-end ferrules, max.: 4 mm²
Wire cross-section stranded, max.: 6 mm²
Wire cross-section stranded, min.: 0.2 mm²
Working temperature, max.: 120 °C
Working temperature, min.: -40 °C
