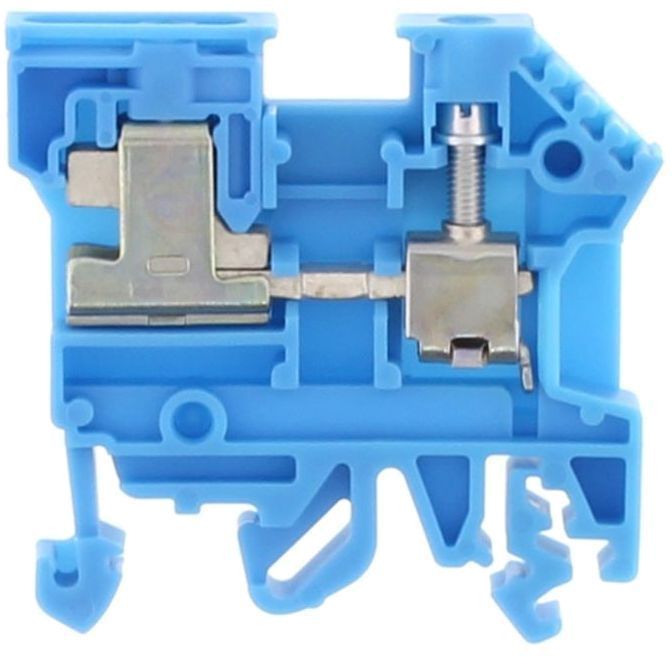

NT 2,5-4 |10x3 BU
Neutral-disconnect terminal, Screw connection, Mounting type:Mounting rail TS 35/7.5 and TS 32, Rated cross-section: 4 mm², Width: 6 mm, Colour: Blue
Technical data
- Rated current
- 32 A
- Rated voltage
- 400 V
- Rated cross-section
- 4 mm²
- Connection principle
- Screw connection
- Colour
- Blue
- Width
- 6 mm
- Length
- 48 mm
- Mounting type
- Mounting rail TS 35/7.5 and TS 32
- Connection position
- Lateral
- Connections
- 1
- Contamination degree
- 3
- Design of longitudinal partition
- Sliding
- EAC approval
- TR ZU 004/2011
- EAC approval granted
- Yes
- EU-POP compliant
- Yes
- End plate required
- Yes
- Flammability class UL 94
- V-2
- Gauge plug acc. to EN 60 947-1
- A4
- Height TS 32
- 51.5 mm
- Height TS 35/7.5
- 47 mm
- Insulating housing
- Polyamide 6.6
- KEMA Drehmoment Sammelschiene max.
- 1
- KEMA Drehmoment Sammelschiene min.
- 0.5
- KEMA KEUR approval
- EN 60947-7-1:2009
- KEMA KEUR approval granted
- Yes
- KEMA rated current
- 32 A
- KEMA rated impulse voltage
- 4 kV
- KEMA rated voltage
- 400 V
- KEMA torque, max.
- 1 Nm
- KEMA torque, min.
- 0.5 Nm
- KEMA wire cross-section single core (rigid), min.
- 0.2 mm²
- KEMA wire cross-section single-core (rigid), max.
- 6 mm²
- KEMA wire cross-section stranded, max.
- 6 mm²
- KEMA wire cross-section stranded, min.
- 0.2 mm²
- Maximum power dissipation for nominal condition
- 1.02 W
- Number of levels
- 1
- Number of terminals per level
- 1
- Overvoltage category
- III
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- Rated impulse voltage
- 4 kV
- RoHS compliant
- Yes
- Screw head
- Slotted
- Screw threading
- M 3
- Sonderanschluss
- Busbar 10 x 3
- Stripping length
- 12 mm
- TSCA compliant
- Yes
- Tightening torque, max.
- 1 Nm
- Tightening torque, min.
- 0.5 Nm
- Weight per piece (including packaging)
- 14 g
- Weight per piece (not including packaging)
- 13.4 g
- Wire cross-section AWG, max.
- 10
- Wire cross-section AWG, min.
- 22
- Wire cross-section single core (rigid)/stranded, max.
- 6 mm²
- Wire cross-section single-core (rigid) / stranded, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrule, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrules, max.
- 4 mm²
- Wire cross-section stranded, max.
- 6 mm²
- Wire cross-section stranded, min.
- 0.2 mm²
- Working temperature, max.
- 105 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- CZ
- Customs number
- 85369010
- GTIN (EAN)
- 4044211028824
