1199
1199.2

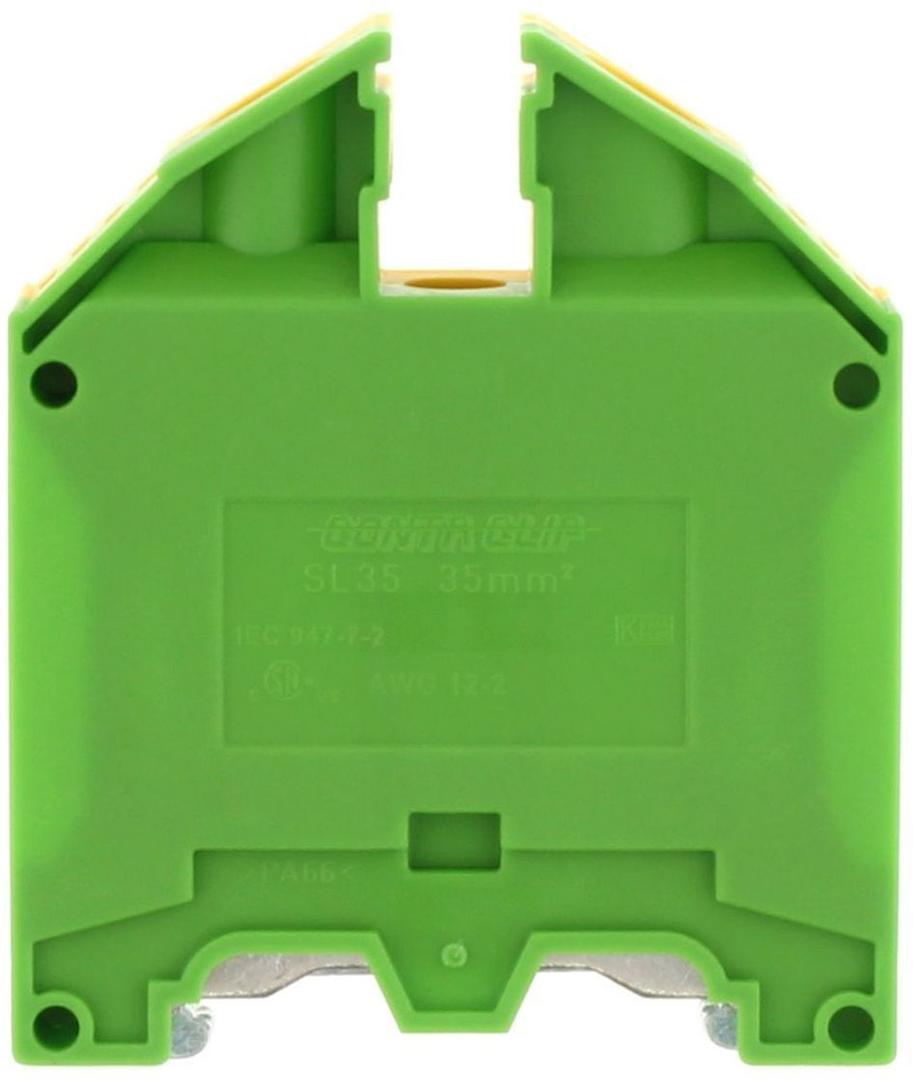

SL 35/35 GNYE
Protective earth terminal, Screw connection, Mounting type: Mounting rail TS 35/7.5, Rated cross-section: 35 mm², Width: 16 mm, Colour: Green-yellow
Technical data
- Rated cross-section
- 35 mm²
- Connection principle
- Screw connection
- Colour
- Green-yellow
- Width
- 16 mm
- Length
- 58 mm
- Mounting type
- Mounting rail TS 35/7,5
- CSA approval
- C22.2 No 158
- CSA approval granted
- Yes
- CSA file number
- 042110_0_000
- CSA stripping length
- 20 mm
- CSA wire cross-section AWG, max.
- 2
- CSA wire cross-section AWG, min.
- 12
- CSAus approval
- UL 1059
- CSAus approval granted
- Yes
- CSAus file number
- 042110_0_000
- CSAus stripping length
- 20 mm
- CSAus wire cross-section AWG, max.
- 2
- CSAus wire cross-section AWG, min.
- 12
- Connection position
- Lateral
- Connections
- 2
- Contamination degree
- 3
- EAC approval
- TR ZU 004/2011
- EAC approval granted
- Yes
- EU-POP compliant
- Yes
- Flammability class UL 94
- V-2
- Gauge plug acc. to EN 60 947-1
- B9
- Height TS 35/7.5
- 71.5 mm
- Insulating housing
- Polyamide 6.6
- KEMA KEUR approval
- EN 60947-7-2:2009
- KEMA KEUR approval granted
- Yes
- KEMA wire cross-section single core (rigid), min.
- 2.5 mm²
- KEMA wire cross-section single-core (rigid), max.
- 50 mm²
- KEMA wire cross-section stranded, max.
- 35 mm²
- KEMA wire cross-section stranded, min.
- 2.5 mm²
- Nemko approval
- EN 60947-7-2:2002
- Nemko approval granted
- Yes
- Number of cross-connection channels
- 1
- Number of levels
- 1
- Number of terminals per level
- 2
- Overvoltage category
- III
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- RoHS compliant
- Yes
- Screw head
- Slotted
- Screw threading
- M 6
- Stripping length
- 20 mm
- TSCA compliant
- Yes
- Tightening torque, fastening screw max.
- 4
- Tightening torque, fastening screw min.
- 2
- Tightening torque, max.
- 5 Nm
- Tightening torque, min.
- 2.5 Nm
- Weight per piece (including packaging)
- 103.75 g
- Weight per piece (not including packaging)
- 100.4 g
- Wire cross-section AWG, max.
- 2
- Wire cross-section AWG, min.
- 12
- Wire cross-section single core (rigid)/stranded, max.
- 50 mm²
- Wire cross-section single-core (rigid) / stranded, min.
- 2.5 mm²
- Wire cross-section stranded with wire-end ferrule, min.
- 2.5 mm²
- Wire cross-section stranded with wire-end ferrules, max.
- 35 mm²
- Wire cross-section stranded, max.
- 35 mm²
- Wire cross-section stranded, min.
- 2.5 mm²
- Working temperature, max.
- 105 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- CZ
- Customs number
- 85369010
- GTIN (EAN)
- 4044211027551
More in this series
Protective conductor terminals
1056.2

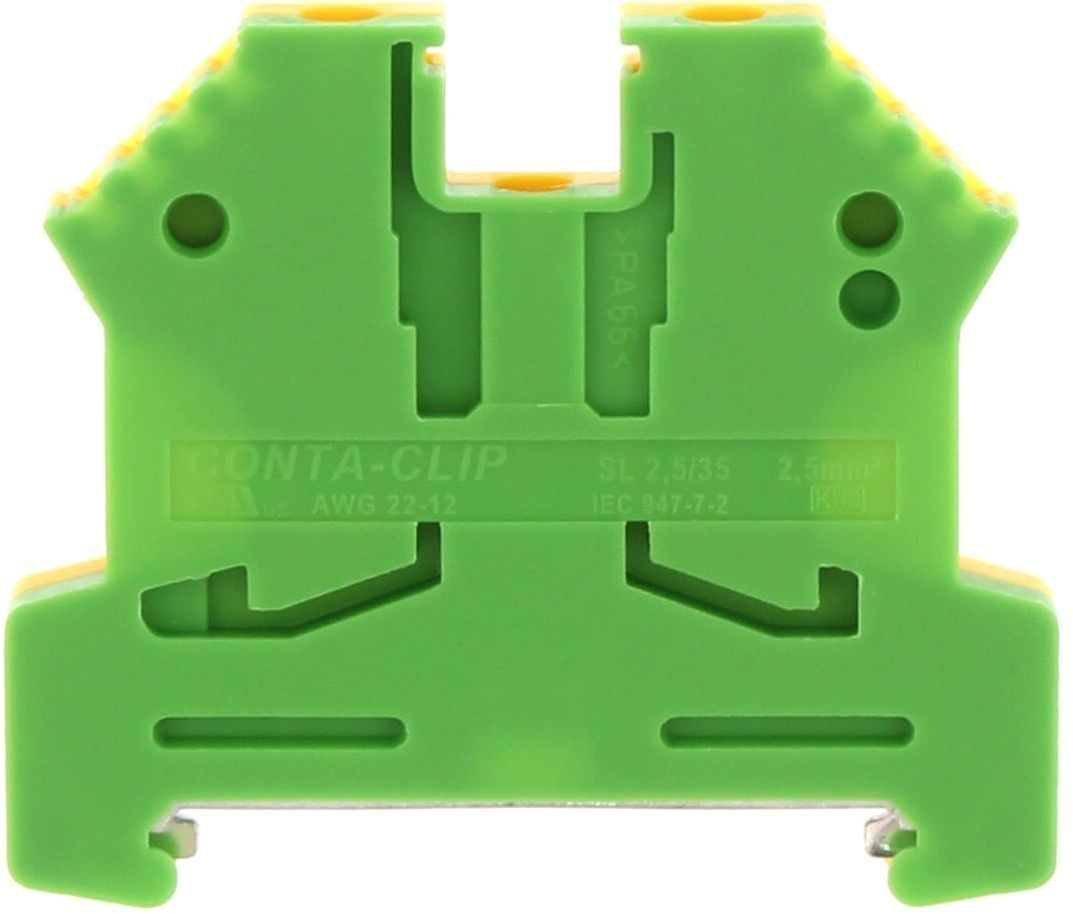

SL 2,5/35 GNYE
Colour: Green-yellow · Connection principle: Screw connection · Rated cross-section: 2.5 mm²
1058.2
SLN 2,5/35 GNYE
Colour: Green-yellow · Connection principle: Screw connection · Rated cross-section: 2.5 mm²
1060.2

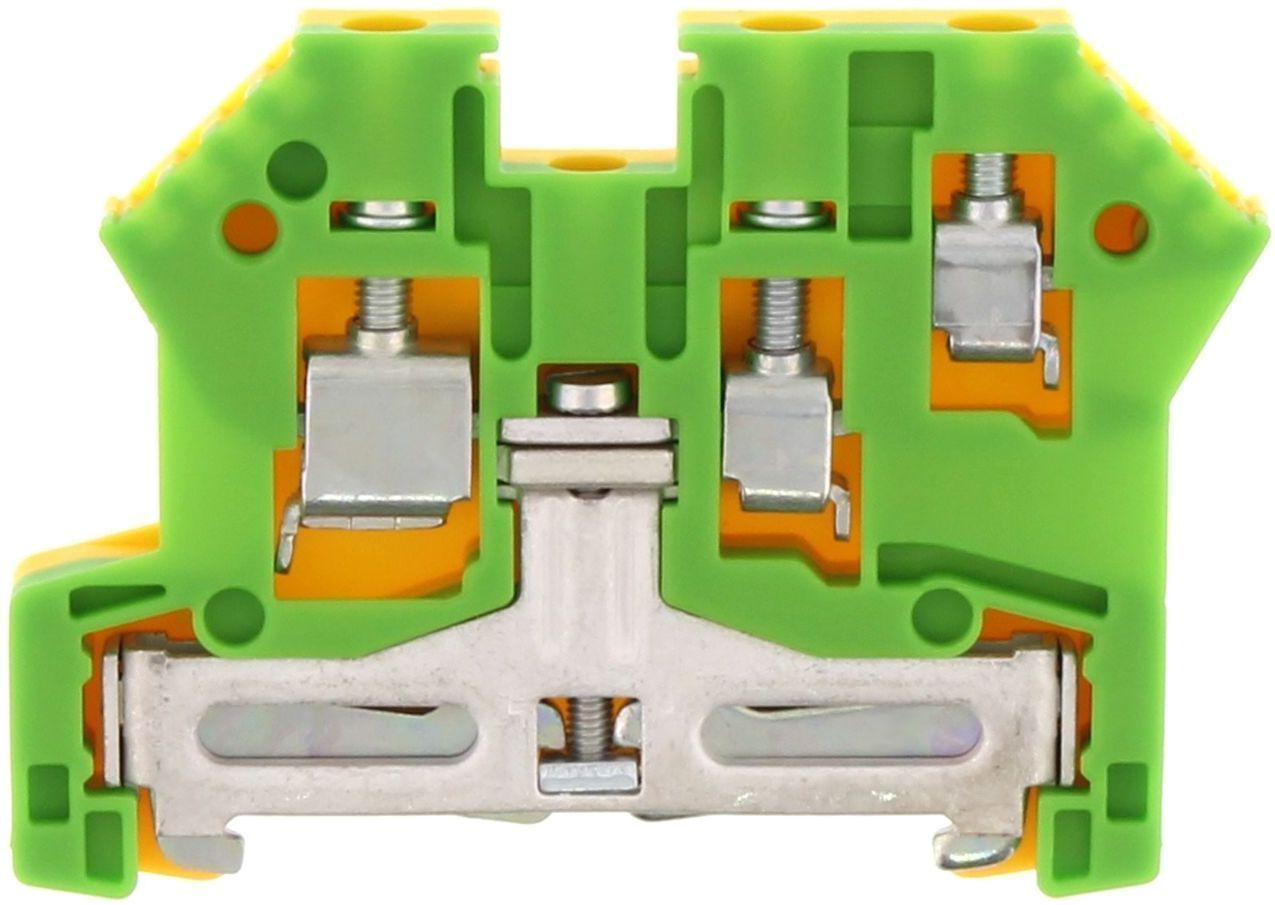

SL 2,5/35/ZR GNYE
Colour: Green-yellow · Connection principle: Screw connection · Rated cross-section: 2.5 mm²
1062.2

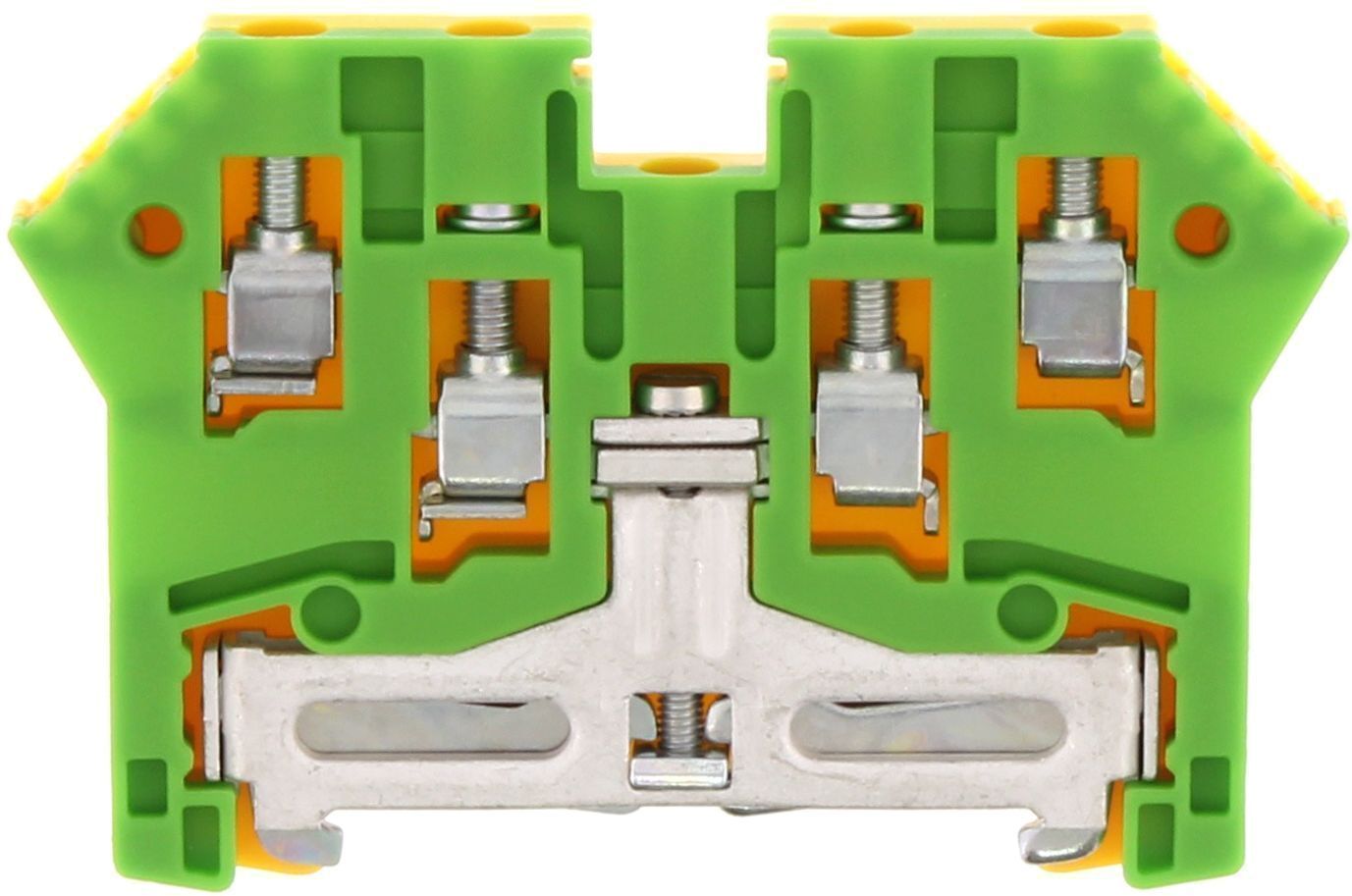

SL 2,5/35/ZRL GNYE
Colour: Green-yellow · Connection principle: Screw connection · Rated cross-section: 2.5 mm²
1064.2

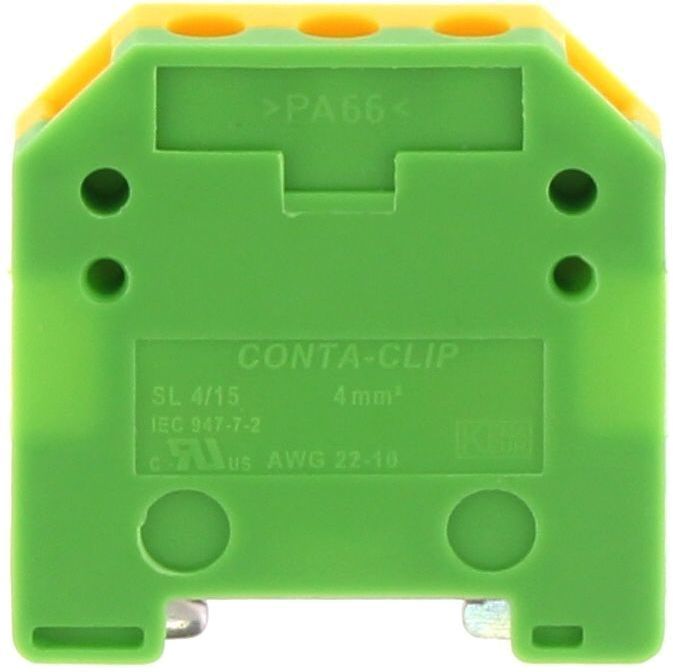

SL 4/15 GNYE
Colour: Green-yellow · Connection principle: Screw connection · Rated cross-section: 4 mm²
1197.2

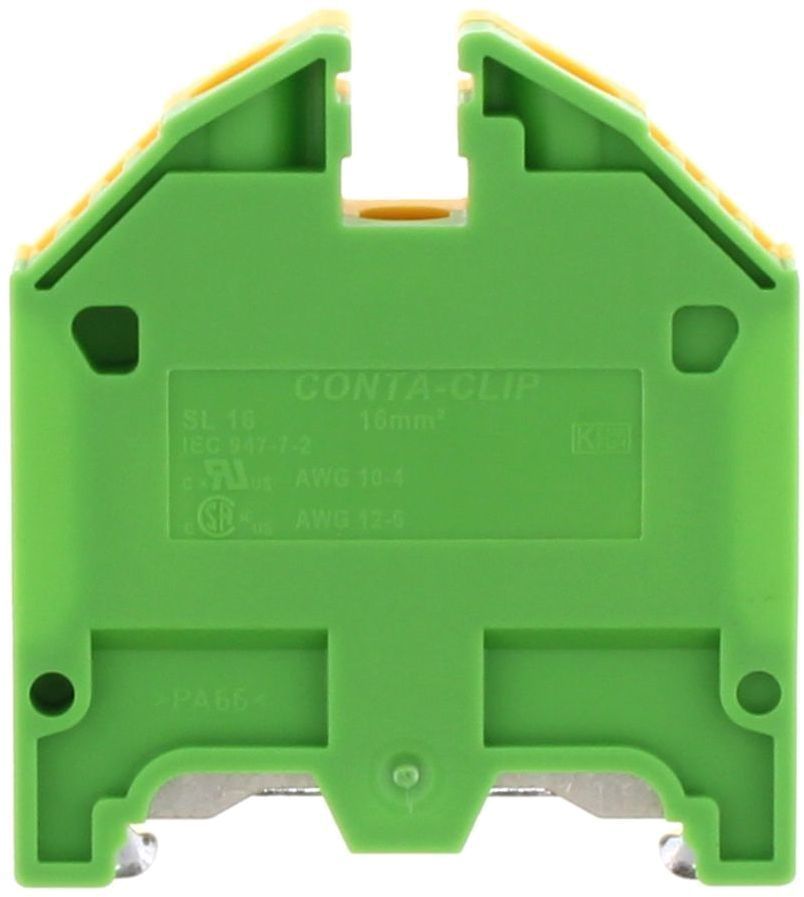

SL 16/35 GNYE
