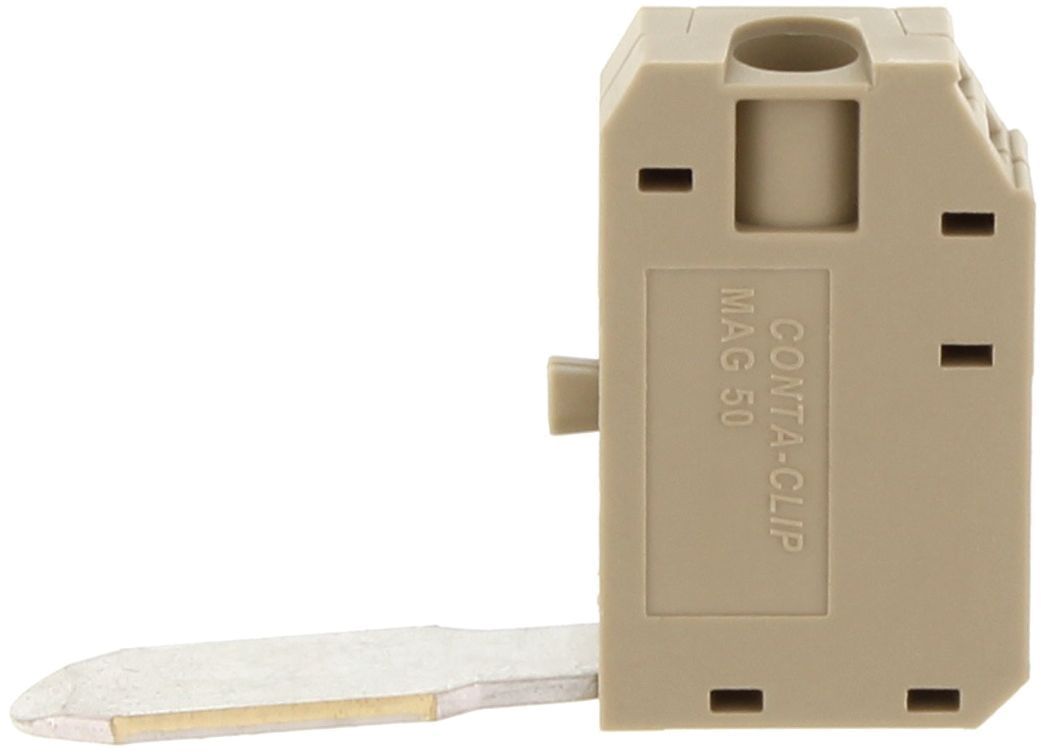

MAG 50 BG
Measurement pick-off terminal, Screw connection, Mounting type: On base, Rated cross-section: 10 mm², Width: 10 mm, Colour: Beige
Technical data
- Rated current
- 57 A
- Rated voltage
- 1000 V
- Rated cross-section
- 10 mm²
- Connection principle
- Screw connection
- Colour
- Beige
- Width
- 10 mm
- Length
- 50 mm
- Mounting type
- On base
- Connections
- 1
- Contamination degree
- 3
- EAC approval
- TR ZU 004/2011
- EAC approval granted
- Yes
- Flammability class UL 94
- V-2
- Gauge plug acc. to EN 60 947-1
- A5
- Height
- 34 mm
- IEC 61373:2010 Railway applications - Rolling stock equipment - Shock and vibration
- Category 1, Class B, Body mounted
- IEC 61373:2010 certification number
- DEKRA 2251741.60
- Insulating housing
- Polyamide 6.6
- Overvoltage category
- III
- Rated impulse voltage
- 6 kV
- Screw head
- Slotted
- Screw threading
- M 4
- Stripping length
- 12 mm
- Tightening torque, max.
- 2 Nm
- Tightening torque, min.
- 1.2 Nm
- Weight per piece (including packaging)
- 12.21 g
- Weight per piece (not including packaging)
- 12.2 g
- Wire cross-section AWG, max.
- 8
- Wire cross-section AWG, min.
- 22
- Wire cross-section single core (rigid)/stranded, max.
- 10 mm²
- Wire cross-section single-core (rigid) / stranded, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrule, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrules, max.
- 10 mm²
- Wire cross-section stranded, max.
- 10 mm²
- Wire cross-section stranded, min.
- 0.2 mm²
- Working temperature, max.
- 105 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- DE
- Customs number
- 85369010
- GTIN (EAN)
- 4044211080914
